Accessing Your Unit Remotely

MAX-700 291

Working With TightVNC

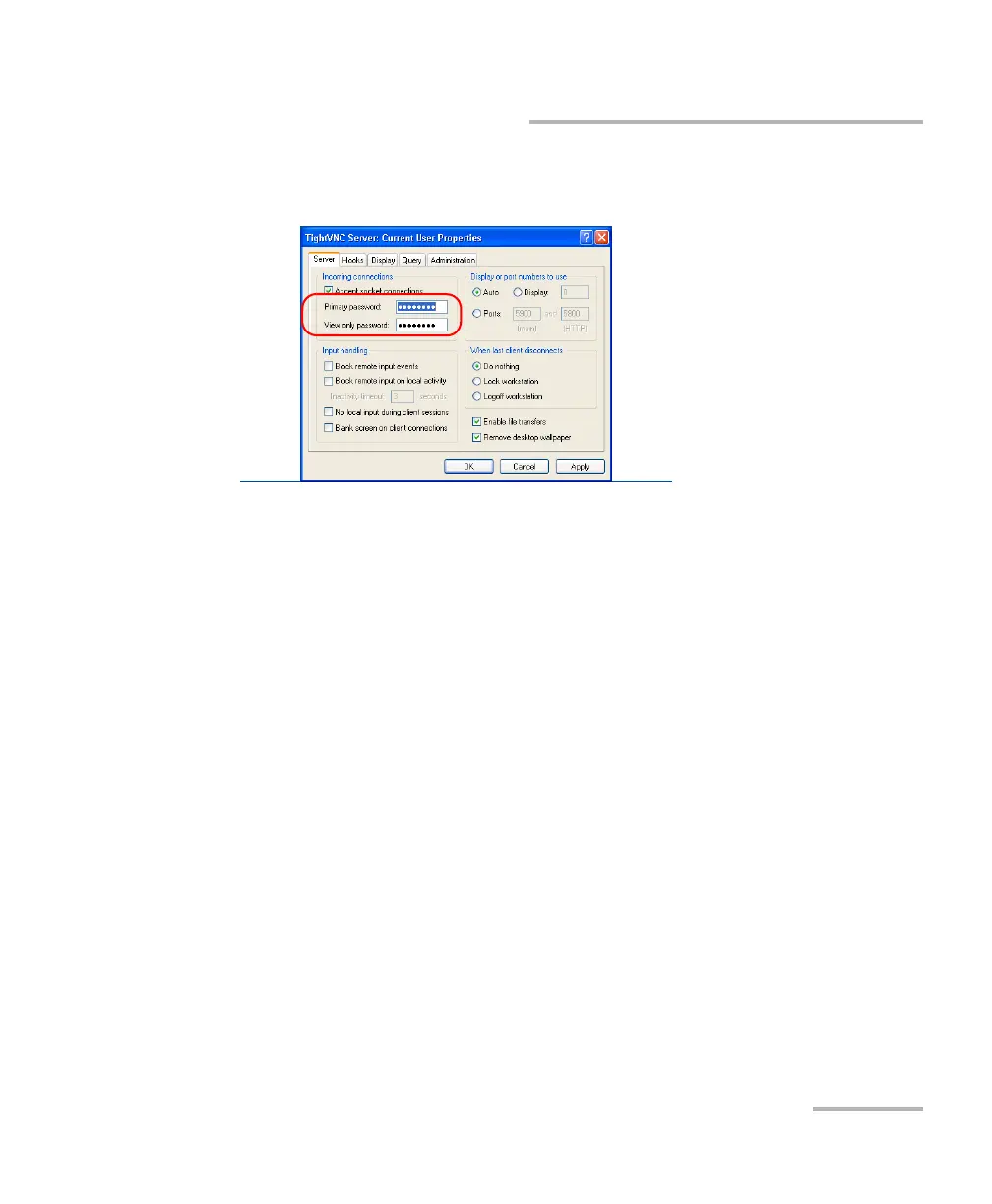

3. In the Primary password and View-only password boxes, type the

desired passwords.

Note: The two passwords are independent of each other. They do not have to be

identical.

4. Tap Apply, and then OK.
