• Serial console port implemented as an RJ45 connector used to connect a terminal and perform local
management.
• Front panel USB port.
• Rear dual PSU power slots with front-to-back or back-to-front
airflow.
• Six rear slots for fan modules with front-to-back or back-to-front airflow.

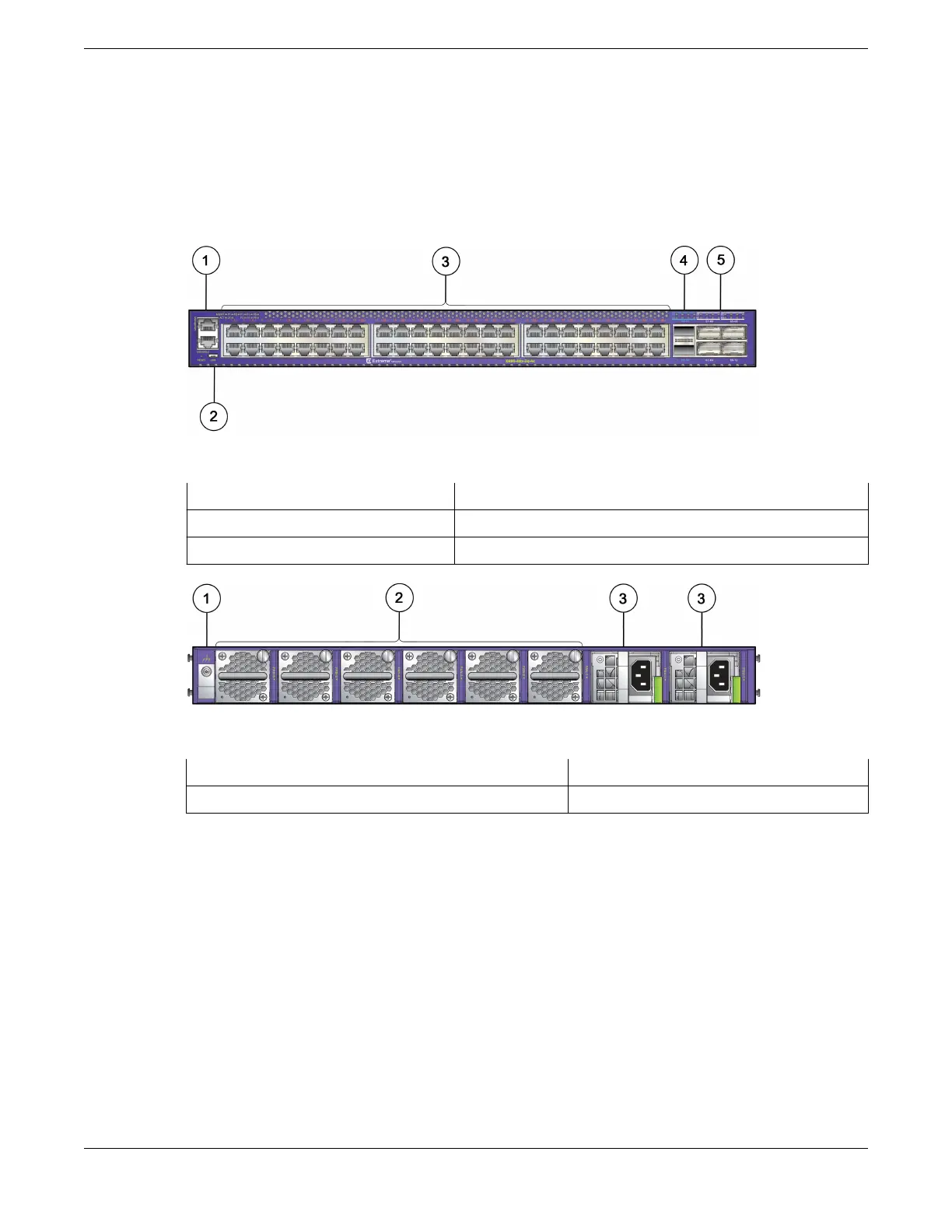

Figure 105: ExtremeSwitching X690-48x-2q-4c Front Panel
1 = Console/management port 4 = 10Gb/40Gb QSFP+ ports
2 = USB port 5 = 10Gb/25Gb/40Gb/50Gb/100Gb QSFP28 ports
3 = 1 Gb/10GBASE-X SFP+ ports
Figure 106: ExtremeSwitching X690-48x-2q-4c Rear Panel
1 = Grounding lug
3 = AC power supplies
2 = Replaceable fan modules
ExtremeSwitching X690 Series Switch LEDs
The following tables describe the meanings of the LEDs on the front panel of the ExtremeSwitching
X690 series switch.
ExtremeSwitching Switches
ExtremeSwitching X690 Series Switch LEDs
ExtremeSwitching Hardware Installation Guide 105
