VIM-2x Ethernet Module Port Option Card
The VIM-2x Ethernet Module option card, shown in Figure 144, allows you to add up to two 10-gigabit
SFP+ optical ports to the VIM slot on the rear panel of the X460-G2 series switch. These ports support 1
GbE and 10 GbE SFP and SFP+ transceivers.
Caution
VIM modules are not hot swappable. You must power down the switch before installing any
VIM modules.
Solid ON=Link
Blinking=Activity
S1 S2
Summit X460 -G2 VIM-2x
TM
1 0 GbE SFP +
1
2
1
2

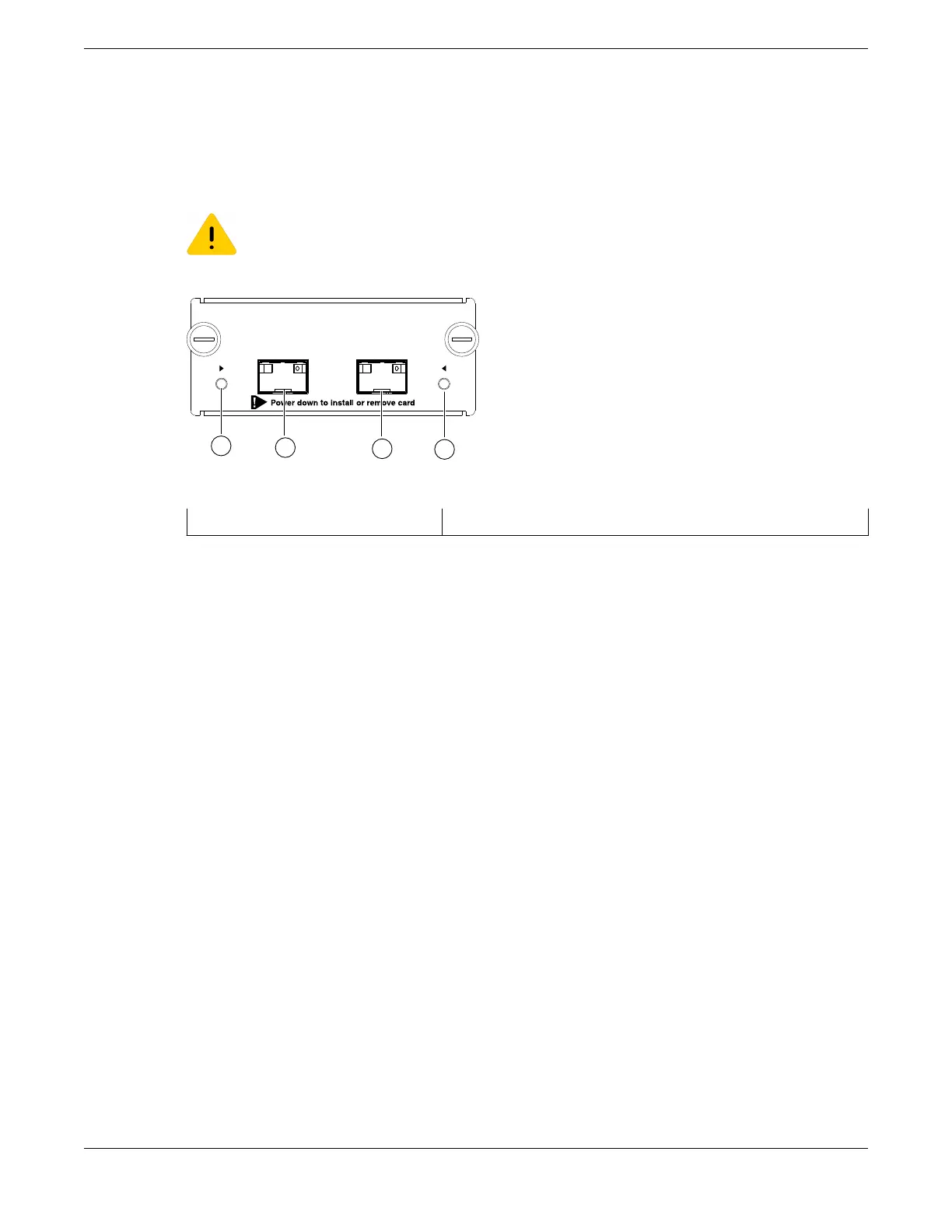

Figure 144: VIM-2x Ethernet Module Option
1 = LEDs 2 = SFP+ Ports
TM-CLK Clock Module
The TM-CLK Clock Module provides an Oven-controlled Crystal Oscillator (OCXO) for use as a reference
frequency for SyncE and 1588v2 precision time features. The OCXO is precise to +-2 nanoseconds (ns)
with time accuracy +50 to -65 ns. The ExtremeXOS configuration selects the input to the clock module
from a SyncE master port or a 1588v2 grandmaster clock. The TM-CLK module is required for SyncE on
the X460-G2. The 1588v2 Precision Time feature on the X460-G2 requires the TM-CLK module and the
Network Timing Feature Pack, and does not support stacking.
Two mini-BNC outputs deliver the following signals:
• 10MHz frequency reference
Expansion Modules
VIM-2x Ethernet Module Port Option Card
ExtremeSwitching Hardware Installation Guide 161

Extreme Networks ExtremeSwitching X690 Series Specifications

General

Maximum Switching Capacity	Up to 6.4 Tbps
Operating System	ExtremeXOS
Form Factor	1U
Humidity	5% to 95% non-condensing
Power Consumption	Varies by model and configuration
AC Input Voltage	100-240 VAC
DC Input Voltage	-48 VDC
Product Series	ExtremeSwitching
Model	X690
Port Types	10 Gigabit Ethernet, 40 Gigabit Ethernet, 25 Gigabit Ethernet, 10 Gigabit Ethernet
Port Options	SFP+, QSFP+, QSFP28
Management	ExtremeCloud IQ
Features	MPLS, VXLAN
Power Supply	hot-swappable
Fans	Redundant, hot-swappable fans
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
AC Input Frequency	50/60 Hz
MTBF	200, 000 hours
Altitude	Up to 3, 000 m (9, 842 ft)
