Table 34: X690 Front Panel Port LEDs (continued)
Location Speed Color/State Meaning
Ports 57-72 100Gb/40Gb
(no partition)
Steady white Link OK
Blinking white Port transmitting or receiving
O No link, or port disabled
50Gb/25Gb/10Gb
(partitioned)
Steady green Link OK
Blinking green Port transmitting or receiving
O No link, or port disabled
ExtremeSwitching X695 Switch
The ExtremeSwitching X695 switch oers versatile and ecient aggregation switching functionality for
campus environments. The X695 switch runs the EXOS operating platform.
The X695 switch comes in the X695-48Y-8C base model (switch with unpopulated fan and power
supply slots).
The front panel of the X695 switch includes:
• 48 10/25-gigabit Ethernet ports capable of supporting passive copper SFP28 and active fiber
SFP28.
These ports are configurable for 1G, 10Gb, and 25Gb modes.
• 8 100-gigabit Ethernet ports capable of supporting passive copper QSFP28 and active
fiber
QSFP28. These ports are configurable for 10Gb, 25Gb, 40Gb, 50Gb, and 100Gb modes. For
information about SFP28 and QSFP28 optical modules, see the Extreme Networks Pluggable
Transceivers Installation Guide
For details about the port partitioning or channelizing options that are available on the X695 switch,
see Partitioning or Channelizing Switch Ports into Data Lanes on page 109.
• RJ45 serial console port that is used to connect a terminal and perform local management.
• USB port for access to external storage.
• RJ45 out-of-band 10/100/1000BASE-T management Ethernet port.
• LEDs to indicate port status and switch operating conditions. For a description of the LEDs and their
operation, see ExtremeSwitching X695 Switch LEDs on page 109.

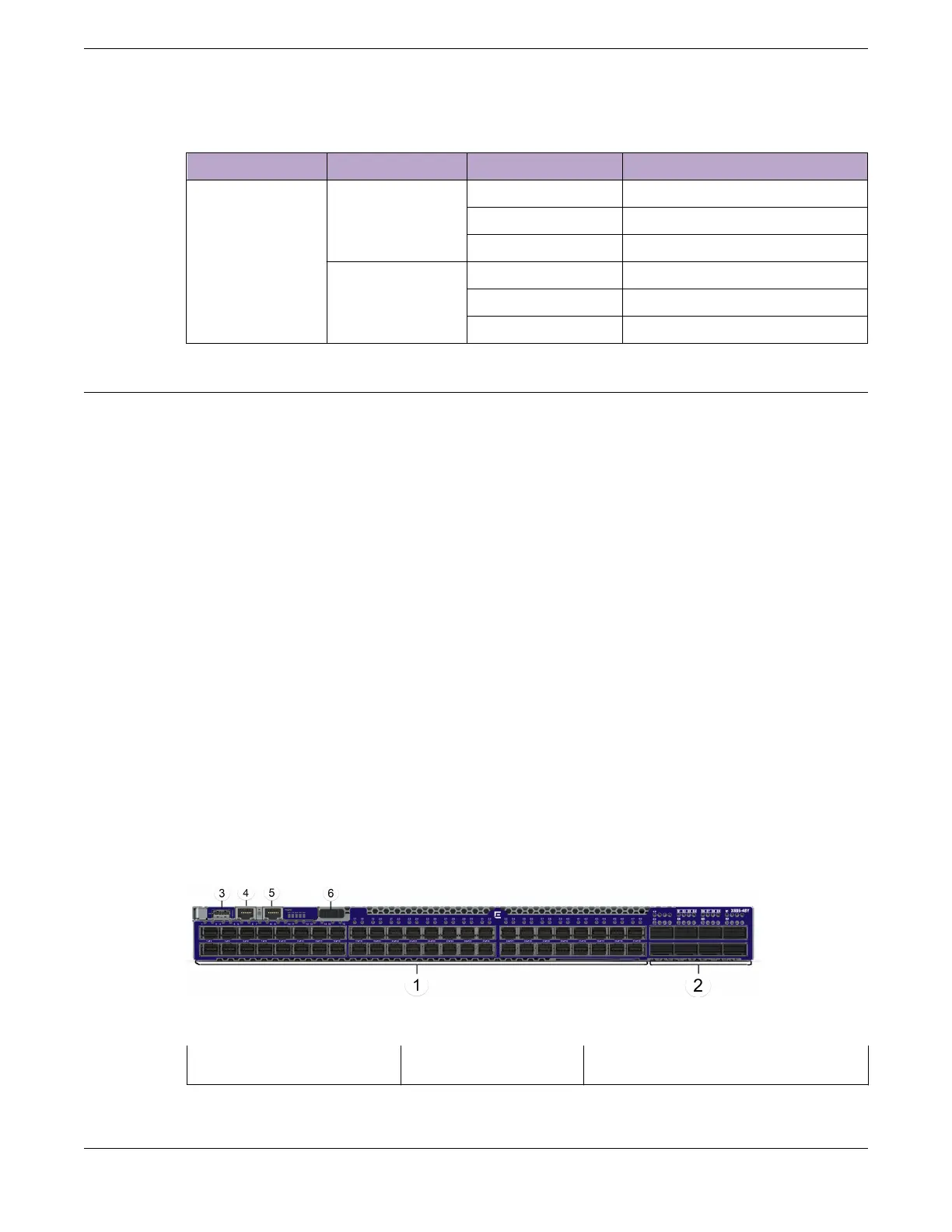

Figure 107: X695 Switch: Front Panel
1 = SFP28 Ethernet ports 3 = USB port 5 = Management port: RJ45
ExtremeSwitching Switches ExtremeSwitching X695 Switch
ExtremeSwitching Hardware Installation Guide 107
