• VIM-2x Ethernet Module with 2x10GSFP+ ports
• TM-CLK Clock Module to support SyncE and 1588
Note
Optional VIM and clock modules for the X460-G2 series switches are not compatible with
X460 series switches.
Caution
The switch must be powered o before you install any interface module options (VIMs or
clock modules). The interface module options are not hot swappable.
VIM-2q Port Option Card
The VIM-2q Ethernet Module option card allows you to add one or two 40 gigabit QSFP+ optical ports
to the VIM (Versatile Interface Module) slot on the rear panel of an X460-G2 series switch. The VIM-2q
option card supports QSFP+ optical modules.
The ports on the VIM-2q option card can be configured as high speed stacking ports in a SummitStack
configuration with a stack link speed of 40G. For more information about stacking ExtremeSwitching
switches, see Building Stacks on page 179.
Note
40G ports on the VIM-2q cannot be partitioned into four 10G ports.
Caution
VIM modules are not hot swappable. You must power down the switch before installing any
VIM modules.
S1 S2
Solid ON=Link
Blinking=Activity
Summit X460 -G2 VIM-2q
TM
4 0 Gb E QSFP+
1
2
1
2

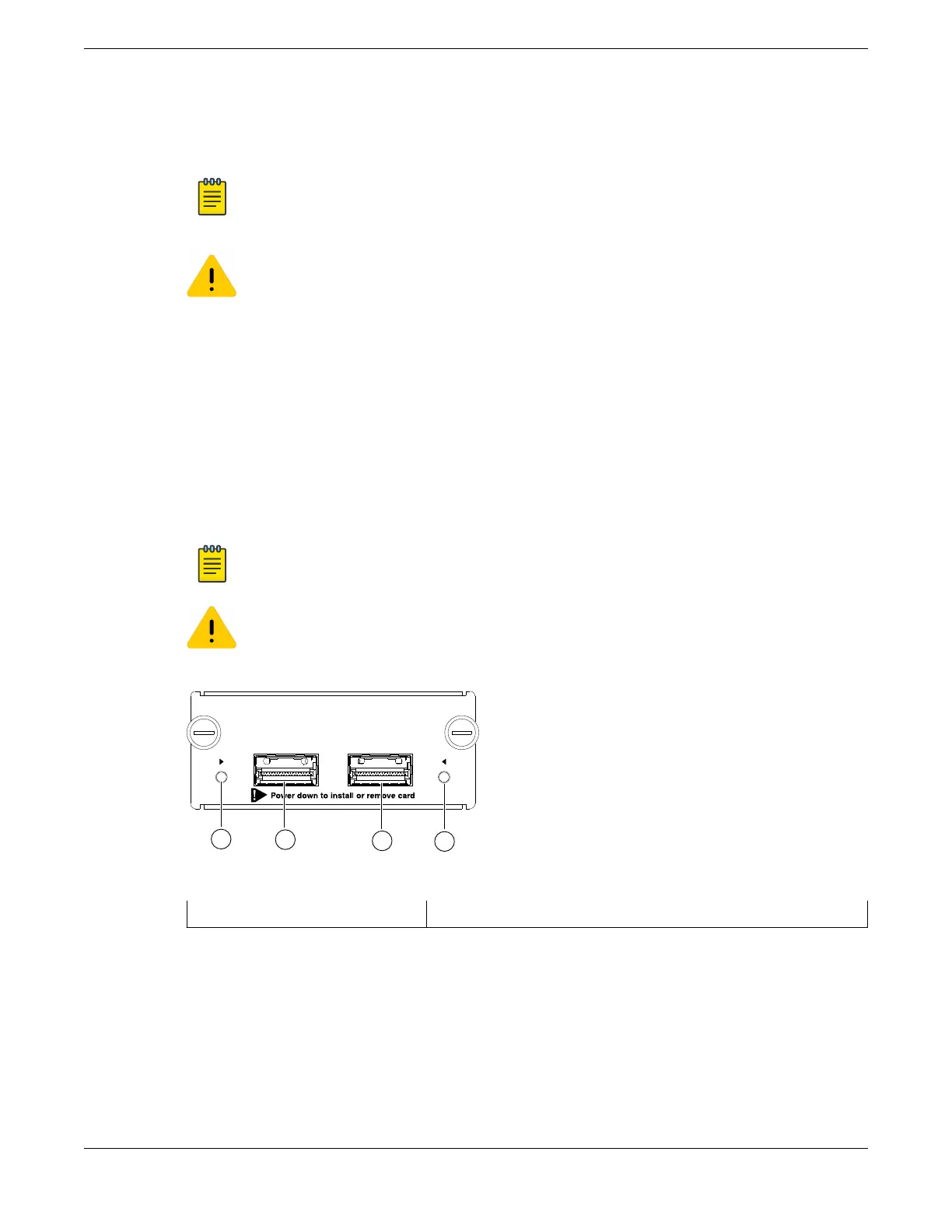

Figure 141: VIM-2q Port Option Card
1 = LEDs
2 = QSFP+ Ports
For current information about compatible QSFP+ modules and the minimum required software, refer to
the most recent version of the Extreme Hardware/Software Compatibility and Recommendation
Matrices.
For more information about QSFP+ modules, refer to the Extreme Networks Pluggable Transceivers
Installation Guide.
Expansion Modules
VIM-2q Port Option Card
ExtremeSwitching Hardware Installation Guide 159
