• Two 1GbE copper combination ports that can be upgraded to 10Gb Ethernet.
• Ethernet management port (10/100/1000BASE-T).
• Serial console port implemented as an RJ45 connector used to connect a terminal and perform local
management.
• One front panel USB 2.0 port, operational on switches running ExtremeXOS version 22.2 or later.
• One rear redundant power supply connector.

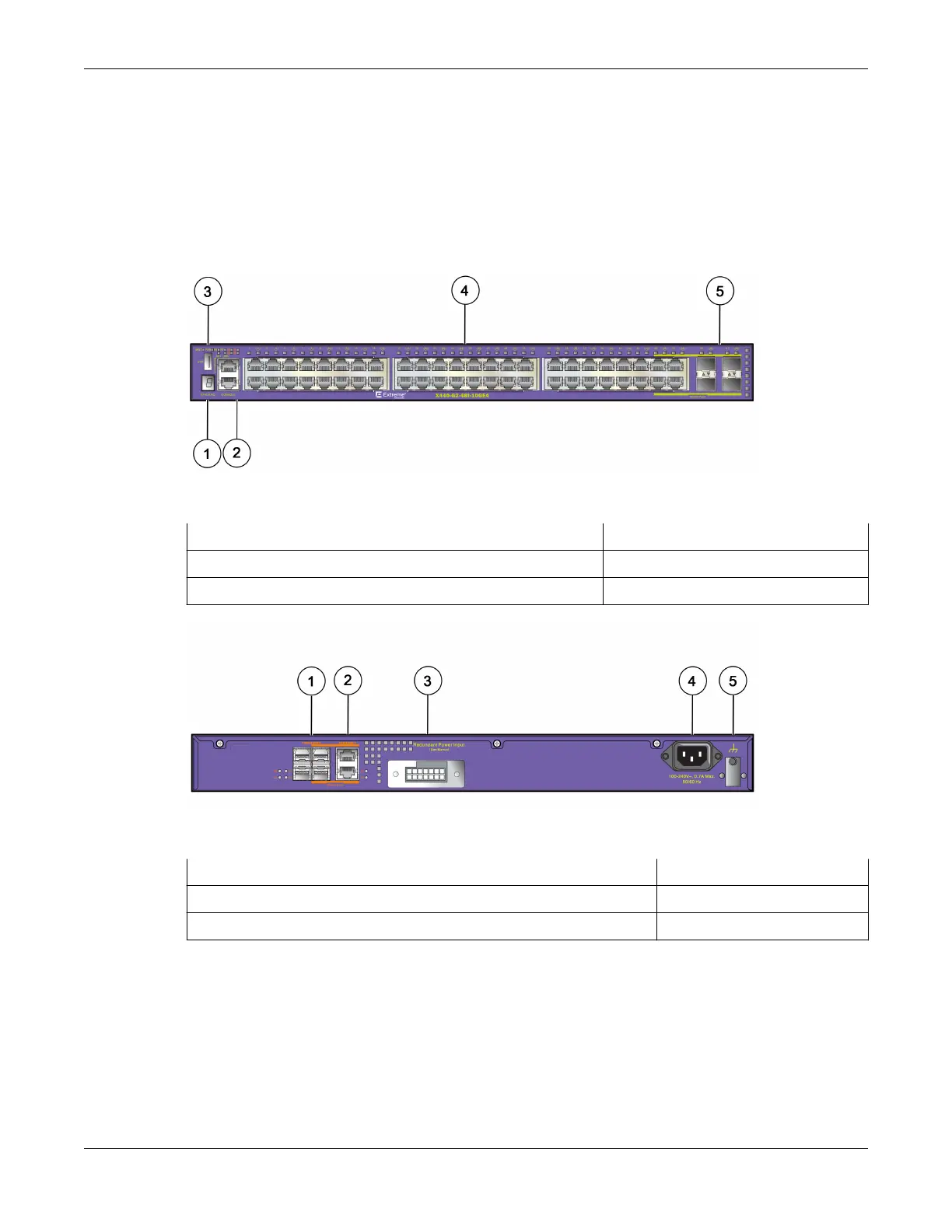

Figure 24: ExtremeSwitching X440-G2-48t-10GE4 Front Panel
1 = Stack number indicator 4 = 10/100/1000BASE-T ports
2 = Console port/Ethernet management port 5 = 1GBASE-X SFP combination ports
3 = USB port (active with ExtremeXOS version 22.2 or later)
Figure 25: ExtremeSwitching X440-G2-48t-10GE4 Rear Panel
1 = SFP ports upgradeable to 10GBASE-X
4 = AC power input socket
2 = 1GBASE-T combination ports upgradeable to 10GBASE-T 5 = Grounding lug
3 = Redundant power input
ExtremeSwitching X440-G2-48p-10GE4 Switch Ports and Slots
The ExtremeSwitching X440-G2-48p-10GE4 switch ports and slots include:
• 48 front panel PoE+ ports of 10/100/1000BASE-T. Both half-duplex and full-duplex communication
are supported on ports 1 through 16 and 25 through 40. The rest of the ports are full-duplex only.
• Four unpopulated front panel 1GBASE-X SFP combination ports.
ExtremeSwitching X440-G2-48p-10GE4 Switch Ports
and Slots ExtremeSwitching Switches
38 ExtremeSwitching Hardware Installation Guide
