6. For a more secure attachment, attach the PSU mounting brackets to the rack using customer-
provided screws:

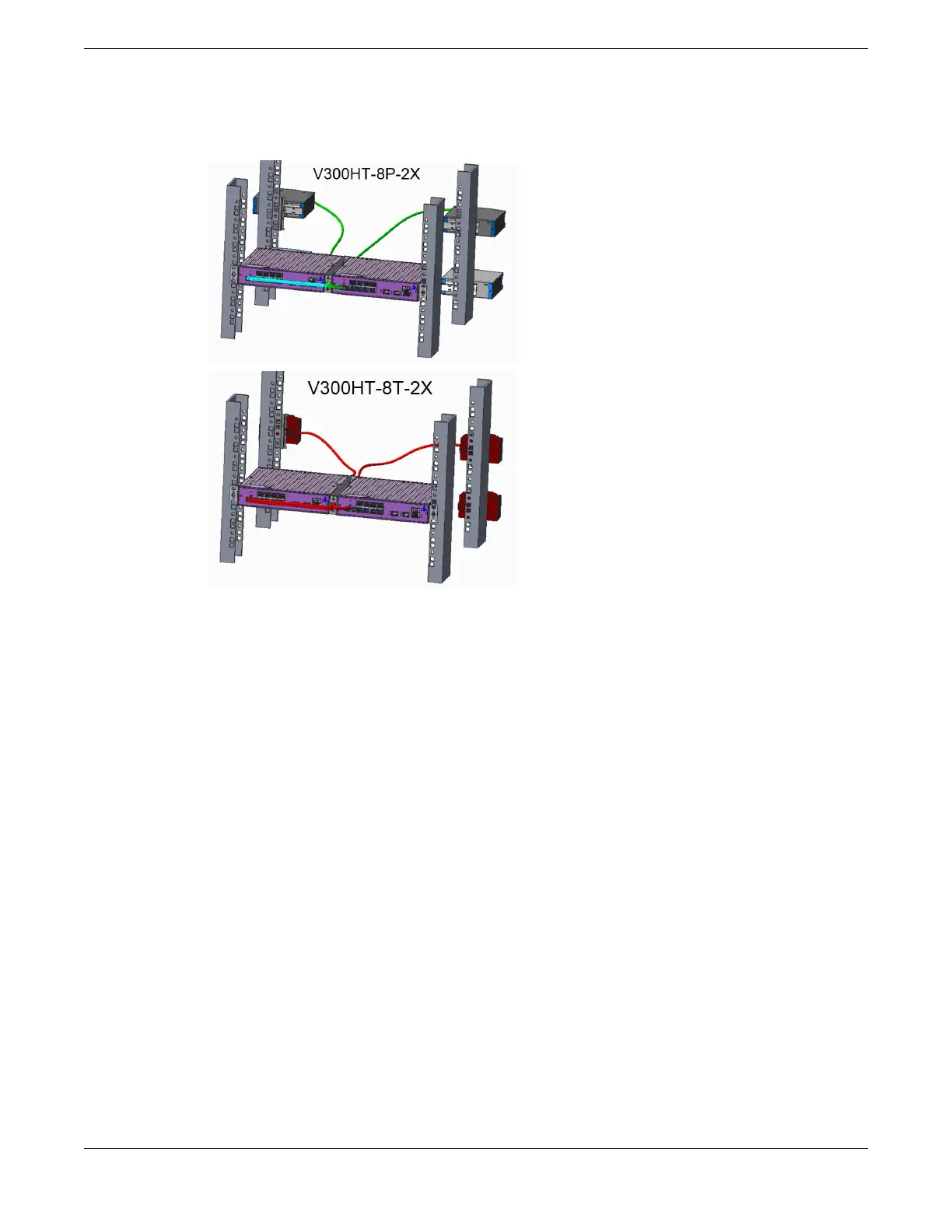

Figure 248: V300HT-8P/8T Dual Rack Mounting with DIN Rail and PSUs
Install a V300 in a DIN Rail Mount
The following tools and materials are required to install a non-PoE V300 Virtual Port Extender to a DIN
Rail mount:
• ESD-preventive wrist strap
• M4 #2 Phillips screwdriver (magnetic screwdriver recommended)
• XN-DIN-MT-001 - DIN Rail mount kit
For PSU XN-ACPWR-320W-HT or XN-ACPWR-40W-HT:
1. Remove all contents of the DIN Rail mount kit (XN-DIN-MT-001).
2. Attach the port extender to the DIN Rail using one DIN bracket and the screws provided.
Installing Expansion Modules
Install a V300 in a DIN Rail Mount
ExtremeSwitching Hardware Installation Guide 309
