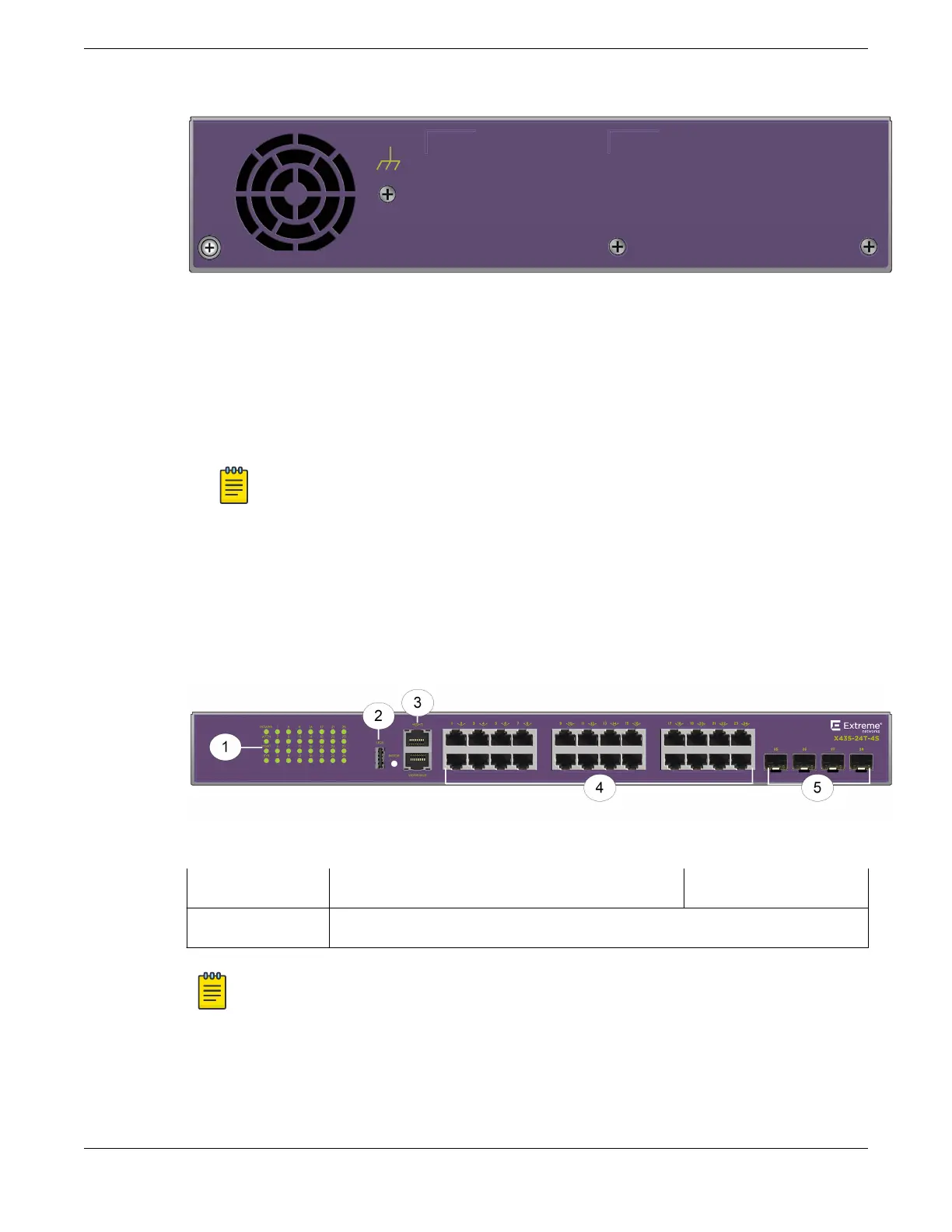

Figure 6: X435-8P-2T-W Rear Panel
ExtremeSwitching X435-24T-4S Switch Features
The front panel of the X435-24T-4S switch includes:
• Twenty-four 10/100/1000BASE-T ports that provide 24Gbps of high-density copper connectivity.
• Four unpopulated 1/2.5G SFP ports that support
fiber connectivity
Note
2.5Gb uplink support is a future capability
• One RJ-45 console port
• One RJ-45 management port
• One USB A port
• LEDs to indicate port status and switch operating conditions
For a description of the LEDs and their operation, see ExtremeSwitching X435 Series Switch LEDs on
page 28
Figure 7: X435-24T-4S Front Panel
1 = System LEDs 3 = RJ-45 console and management ports 5 = 1/2.5G SFP ports*
2 = USB A port 4 = 10/100/1000BASE-T ports
Note
*2.5Gb uplink support is a future capability
The rear panel of the X435-24T-4S switch includes:
• AC power input socket
The internal AC power supply operates from 100VAC to 240VAC.
ExtremeSwitching X435-24T-4S Switch Features
ExtremeSwitching Switches
26 ExtremeSwitching Hardware Installation Guide
