STK-RPS-150PS Connector Pin Locations

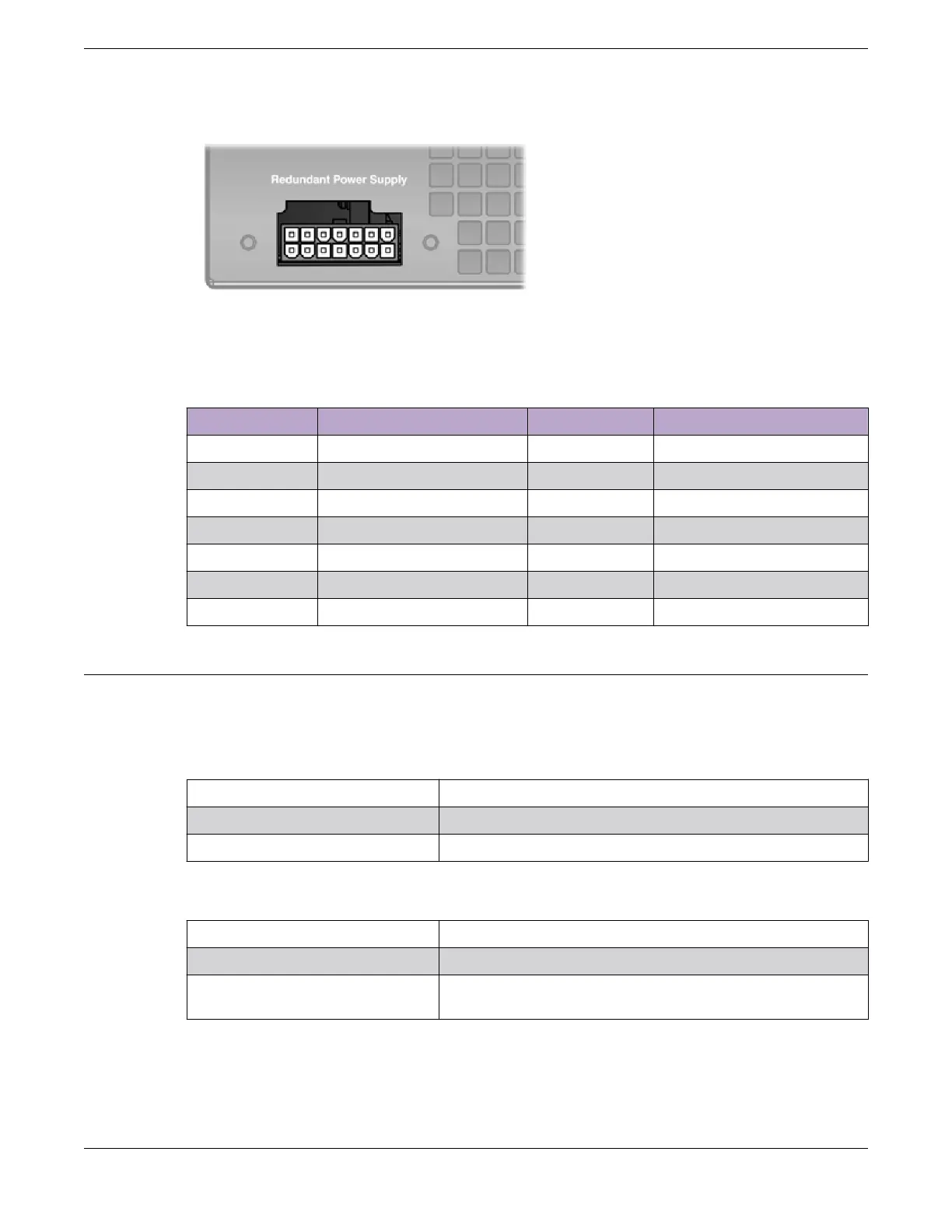

Figure 319: STK-RPS-150PS Connector Pin Locations
Table 345: STK-RPS-150PS Connector Pin Functions
Pin Function Pin Function
1 - 50 V return 8 Ground
2 - 50 VDC 9 No connection
3 12 VDC output 10 RPS present
4 12 VDC output 11 Status 1
5 12 VDC output 12 Status 2
6 12 VDC output 13 Power good
7 Ground 14 Ground
STK-RPS-1005PS Redundant Power Supply Technical Specifications
The following tables list the specifications for the 1005 W PoE+ Redundant Power supply unit (model
STK-RPS-1005PS) .
Table 346: Physical Specifications
Dimensions 4.3 H x 15.4 W x 34.0 D (cm) 1.7 H x 6.1 W x 13.4 D (in.)
Weight (unit only) 2.1 kg (4.6 lb)
Weight (unit and packaging) 3.5 kg (7.8 lb)
Table 347: Power Specifications
AC input frequency range 50/60 Hz
AC input voltage range 115-230 VAC
AC input current 12 A maximum at 115 VAC, 60 Hz
6.0 A maximum at 230 VAC, 50 Hz
Technical Specifications STK-RPS-150PS Connector Pin Locations
ExtremeSwitching Hardware Installation Guide 471
