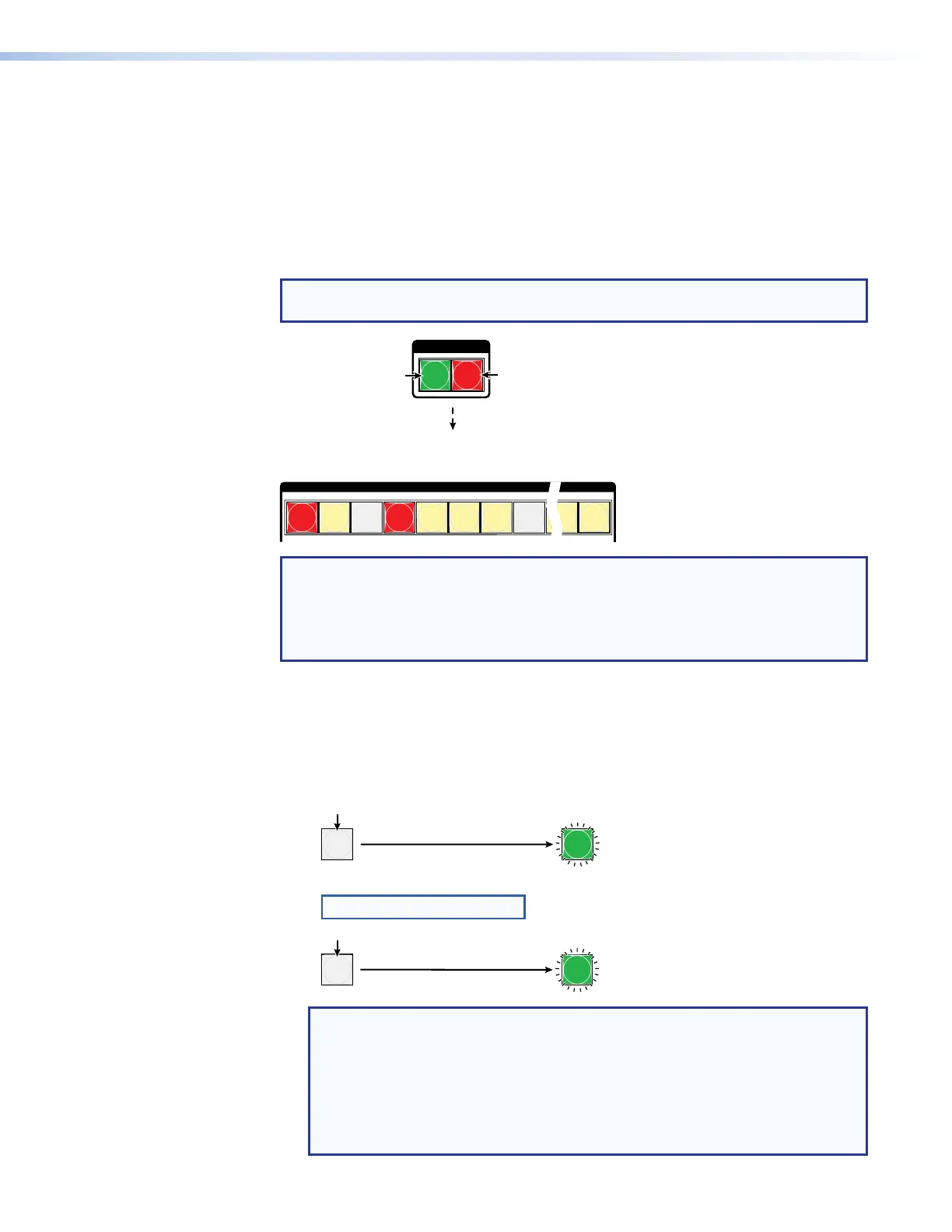

Example 7: Muting and unmuting an audio output
In the following example, a switcher output is muted and unmuted. The steps show the front
panel indications that result from your action.
1. Clear all selections: Press and release the Esc button.
2. Select View-only mode: Press and release the View button. The button lights red.
3. Select both video and audio for viewing and muting: If necessary, press and
release the Video button and the Audio button.
NOTE: This example assumes that you have performed example 1 on page 39,
example 2 on page 41, and example 3 on page 42.
I / O
VIDEO AUDIO
OUTPUTS
1
2
3
4
5
6 7
8
15
16
Until you select an input, the buttons for all untied outputs light
amber if no inputs are tied, green if no video inputs are tied
(only audio is tied), or red if no audio are tied (only video is tied).
Press the Audio button
to toggle on and off.
The button lights red
when selected.
Press the Video button
to toggle on and off.
The button lights green
when selected.
NOTE: Output mutes are protected when front panel Lock mode 2 is selected. You
can view the mutes in Lock mode 2 but you cannot change them from the front
panel (see Setting the Front Panel Locks (Executive Modes) on page 62).
If front panel Lock mode 2 is selected and you try to perform steps 4 and 5, the
actions are ignored.
4. Mute outputs: One at a time:
a. Press and hold the Output 3 button for approximately 2 seconds until the button
begins to blink.
b. Press and hold the Output 4 button for approximately 2 seconds until the button
begins to blink.
3
4
3
4
The button blinks indicate
that the output is muted.
The button blinks indicate
that the output is muted.
Mute outputs one at a time.
2 seconds
2 seconds
Press and hold the Output 3 button.
Press and hold the Output 4 button.
Green = Video is muted.
Red = Audio is muted.
Amber = Video and audio are muted. (Amber is visible only
after you have selected the Video and Audio buttons).
NOTE: Video is muted in this example.
NOTES:
• If both video and audio are selected, the mute action toggles both the video
and audio outputs. If either the video output or the audio output is already
muted, the unmuted output is muted and the muted output is unmuted.
• If both video and audio are selected and only video is muted, the output
button blinks between green and amber. If only audio is selected, the
output button blinks between red and amber.
XTP II CrossPoint 1600, 3200, and 6400 Switchers • Operation 50
