Example 9: Viewing and adjusting an analog output volume level
In the following example, the audio output volume is viewed and adjusted. The steps show
the front panel indications that result from your action.
Because of the different volume display schemes, the output audio levels that result from
the following example are shown twice:
• As displayed on an XTP II CrossPoint 3200 or XTP II CrossPoint 6400 switcher
• As displayed on an XTP II CrossPoint 1600 switcher
The XTP II CrossPoint 3200 and XTP II CrossPoint 6400 drawings show the actions that led
up to the display. The XTP II CrossPoint 1600 drawing shows the volume display only, not
the actions that caused it.
1. Clear all selections: Press and release the Esc button.
2. Select Audio mode: Press and hold the Audio button for approximately 2 seconds
until it blinks.
AUDIO
AUDIO
Press and hold.
2 seconds
3. Select an output: Press and release the Output 1 button (see figure 43).
In figure 43 and figure 44, the lit or blinking input buttons indicate 41.5 percent of the
applied audio input. The unlit input buttons indicate an audio volume attenuation of 39 dB.
1
2
16
1
2
3
1
12
13
14
15
16
17
18
19
27
28
29 30
31
32
INPUTS
Each lit input button beyond input 1 indicates that 3 percent of the total input volume
is applied to the output. The flashing button indicates an additional 1.5 percent.
39 dB attenuation
41.5% volume
Press to light
the button.

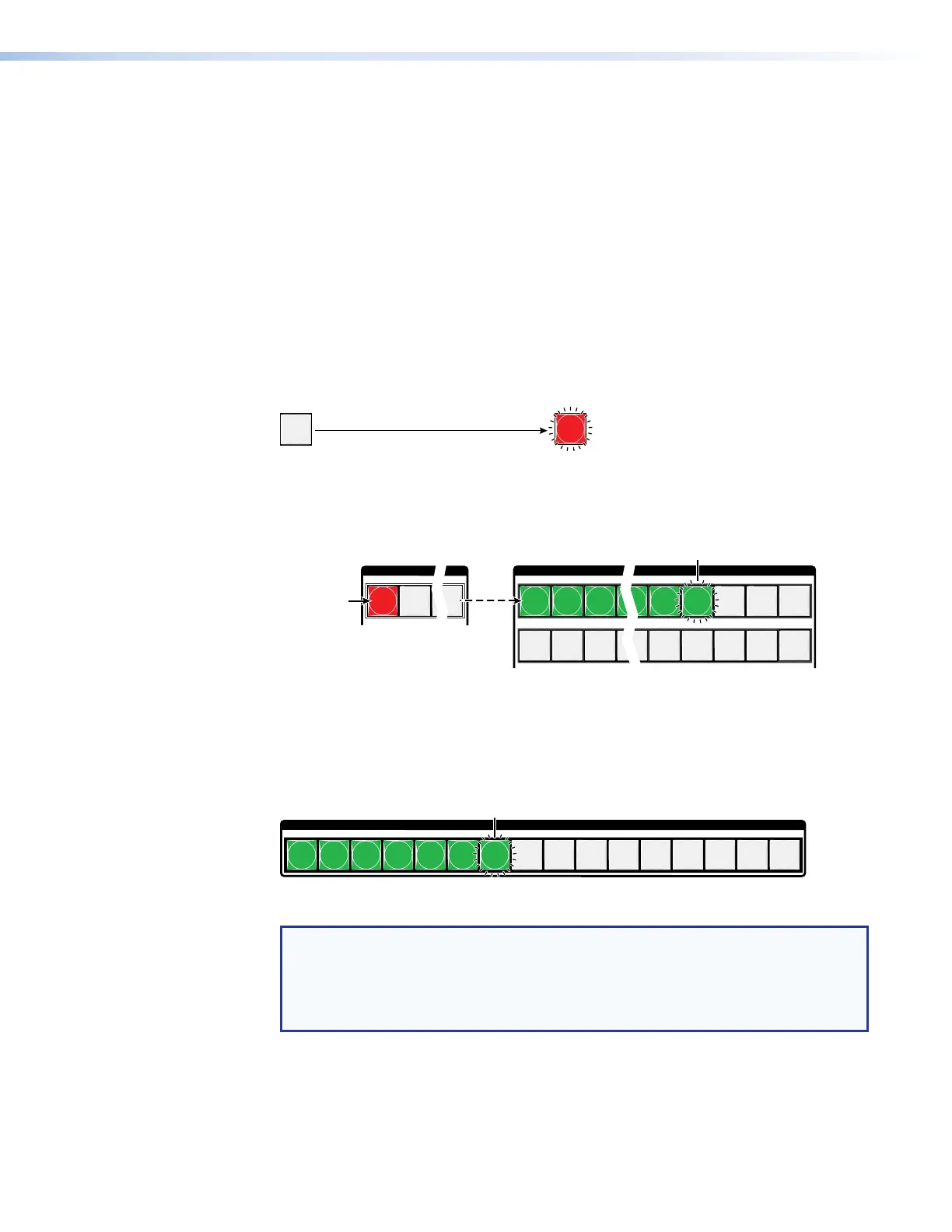

Figure 43. Select Output 1
Figure 44 shows the same volume as figure 43, but displayed on an
XTP II CrossPoint 1600.
INPUTS
1
2
3
4
5
6 7
8
9
10
11
12
14
15
16
13
39 dB attenuation,
41.5% volume
Figure 44. Volume Display on an XTP II CrossPoint 1600 Switcher
NOTE: Volume is protected when front panel Lock mode 2 is selected. You can
view the volume in Lock mode 2 but you cannot change it from the front panel
(see Setting the Front Panel Locks (Executive Modes) on page 62).
If front panel Lock mode 2 is selected and you try to perform step 4, the actions
are ignored and the Enter, Video, and Audio buttons blink.
XTP II CrossPoint 1600, 3200, and 6400 Switchers • Operation 60
