4. Change the volume: Press and release the Esc (
>
) button once (see figure 45) to
increase the volume by 1.5%.
Press and release the Esc (
>
) button several more times (figure 45) to increase the
volume by 1.5% per button press. Note the input button indication changes that occur
each time the Esc (
>
) button is pressed and released.
NOTE: You can press and hold the Esc (
>
) or View (
>
) button to ramp the level up
or down by 3 dB per second to the high or low limit.
Figure 45 shows the result of pressing the Esc (
>
) button a total of 13 times. In
figure 45 and figure 46, the lit or blinking input buttons indicate 61 percent of the applied
audio input. The unlit input buttons indicate an audio volume attenuation of 26 dB.
ESC
1
2
3
1
12
13
14
15
16
17
18
19
27
28
29 30
31
32
INPUTS
Decrease the audio
attenuation (thereby
increasing the audio level)
that is applied to the
output volume level by
1 dB per button push.
Each lit input button beyond input 1 indicates that 3 percent of the total input is applied to the output.
26 dB attenuation,
61% volume
Press the button

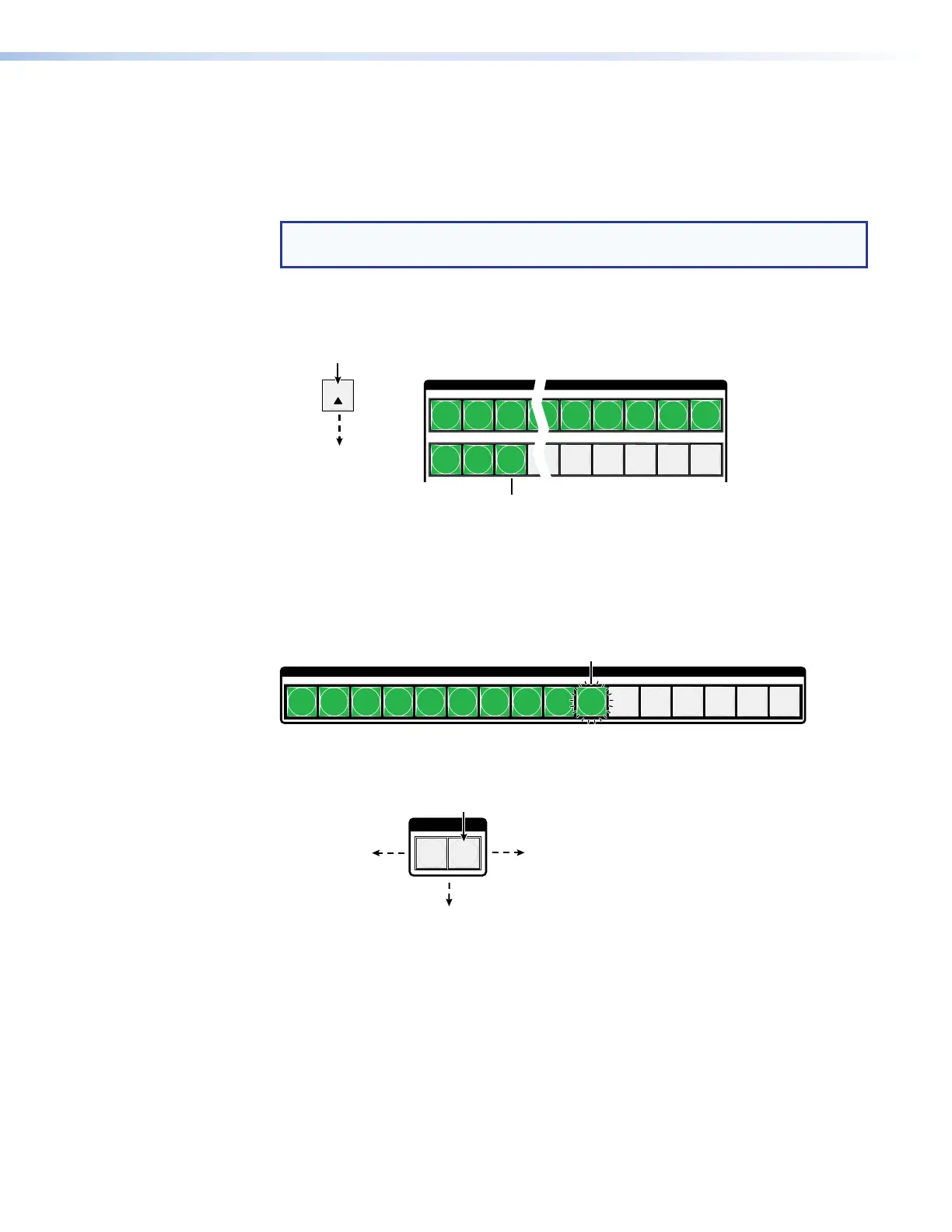

Figure 45. Adjust the Output Audio Volume
Figure 46 shows the same volume (61%) as in figure 45, but displayed on an
XTP II CrossPoint 1600 switcher.
INPUTS
1
2
3
4
5
6 7
8
9
10
11
12
14
15
16
13
26 dB attenuation
61% volume
Figure 46. Volume Display on an XTP II CrossPoint 1600 Switcher
5. Exit Audio mode: Press and release the Audio button.
I / O
VIDEO AUDIO
The Audio button stops
blinking and lights.
Press the button.
All input buttons and output buttons
return to unlit or background illumination.
The Video button
lights green.
XTP II CrossPoint 1600, 3200, and 6400 Switchers • Operation 61
