Using the Print Top of Form Option
Follow these instructions:
Step Procedure
1 Verify the Transfer TOF is set to +35.
2 Verify the Print TOF is set to +20.
3 Verify the Print LOF is set to +7.

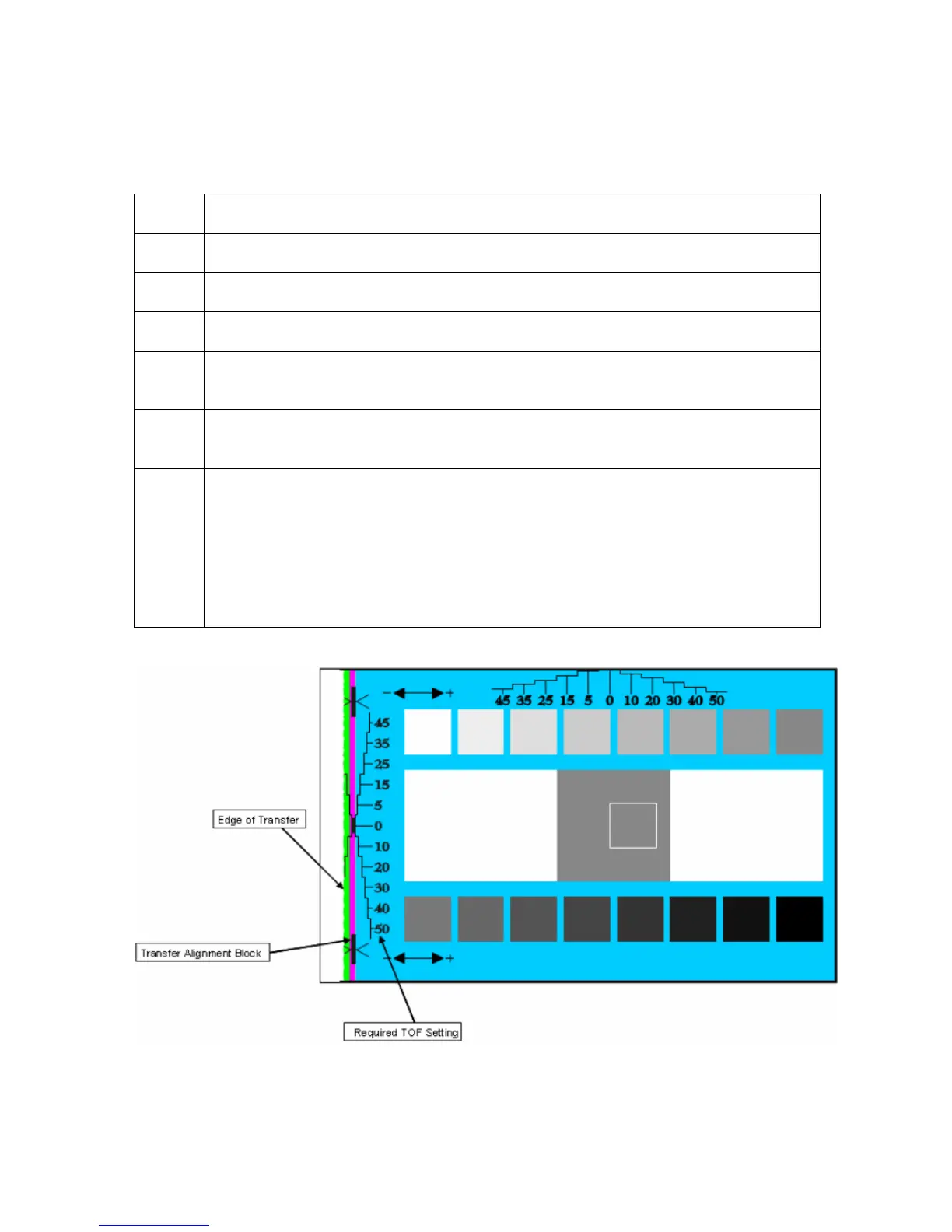

4 Print the alignment card self-test (The front edge should look like Figure
below).
5 Determine which grid line to the left of the center Transfer Alignment Block is
closest to the edge of transfer.
6 Align the leading edge of the center Transfer Alignment Block with the Edge of
Transfer.
• To do this adjust the Print TOF setting up or down by the number located
directly to the right of the line found in the previous step.
• To help with this setting there are (+/-) orientation arrows located at the
upper and lower left sections of the card.
