RESTRICTED USE ONLY Fargo Electronics, Inc.
HDP5000 High Definition Card Printer/Encoder User Guide (Rev. 1.4)
4-8
Installing the Lamination Module Accessory (continued)

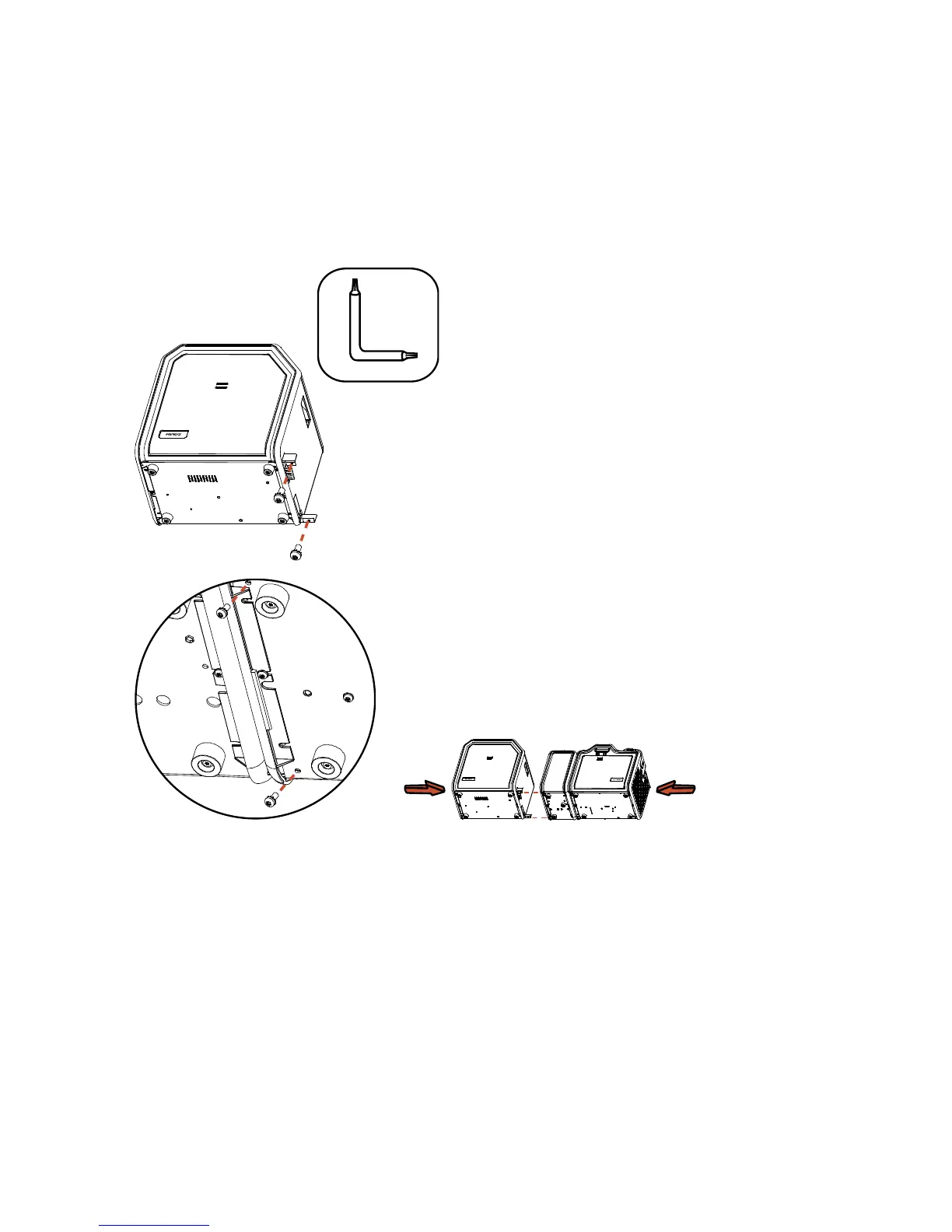

Display - Slide the Lamination Module attachment tabs and the PCB-INTF Board into the
appropriate slots at the base of Printer or Flipper Module. This picture shows the Printer, the
Flipper Module and the Lamination Module.
