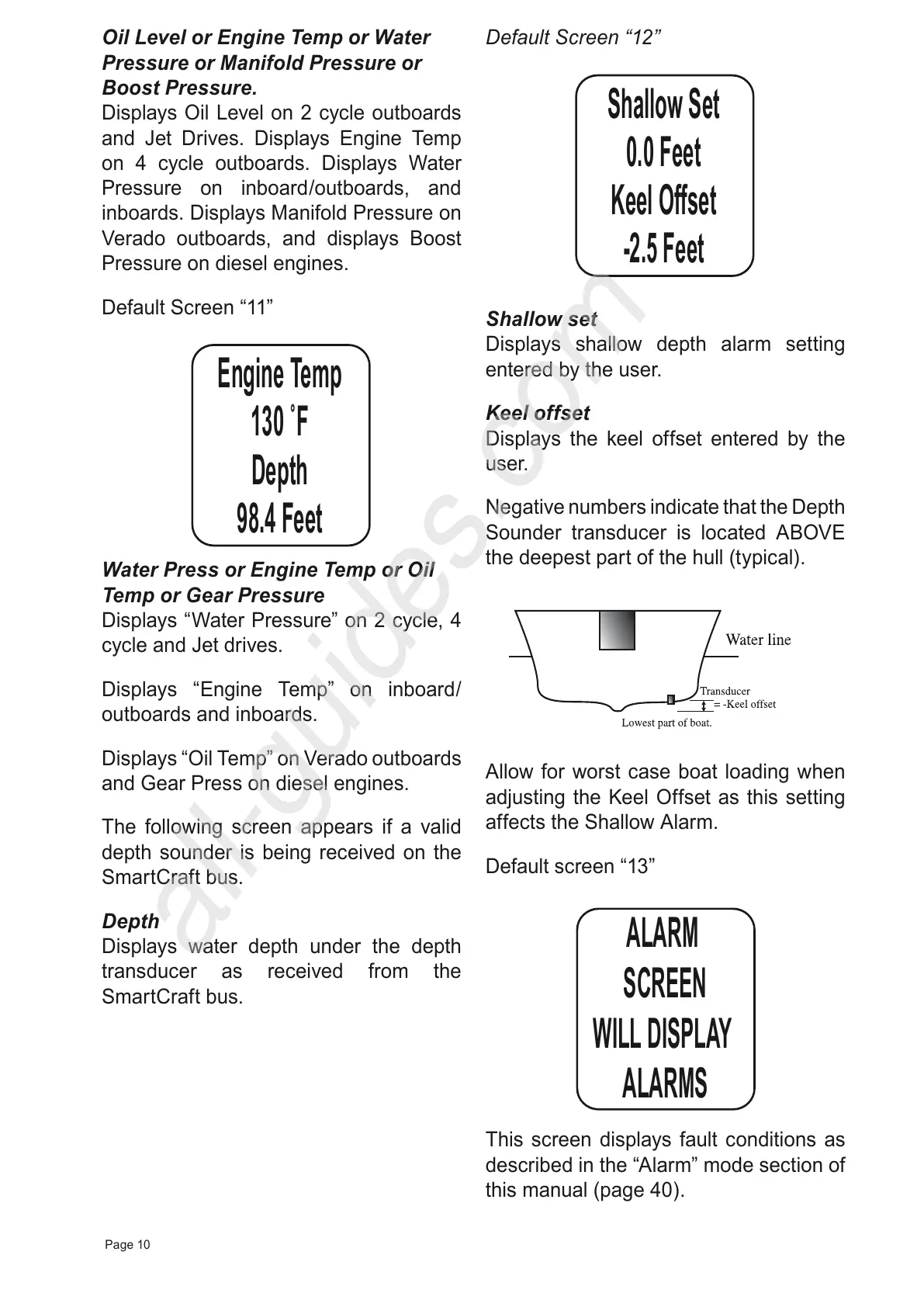

Oil Level or Engine Temp or Water
Pressure or Manifold Pressure or
Boost Pressure.
Displays Oil Level on 2 cycle outboards
and Jet Drives. Displays Engine Temp
on 4 cycle outboards. Displays Water
Pressure on inboard/outboards, and
inboards. Displays Manifold Pressure on
Verado outboards, and displays Boost
Pressure on diesel engines.
Default Screen “11”
Engine Temp
130 ˚F
Depth
98.4 Feet
Water Press or Engine Temp or Oil
Temp or Gear Pressure
Displays “Water Pressure” on 2 cycle, 4
cycle and Jet drives.
Displays “Engine Temp” on inboard/
outboards and inboards.
Displays “Oil Temp” on Verado outboards
and Gear Press on diesel engines.
The following screen appears if a valid
depth sounder is being received on the
SmartCraft bus.
Depth
Displays water depth under the depth
transducer as received from the
SmartCraft bus.
Default Screen “12”
Shallow Set
0.0 Feet
Keel Offset
-2.5 Feet
Shallow set
Displays shallow depth alarm setting
entered by the user.
Keel offset
Displays the keel offset entered by the
user.
Negative numbers indicate that the Depth
Sounder transducer is located ABOVE
the deepest part of the hull (typical).
Allow for worst case boat loading when
adjusting the Keel Offset as this setting
affects the Shallow Alarm.
Default screen “13”
Fuel Used
41˚21N 072˚06W
ALARM
SCREEN
WILL DISPLAY
ALARMS
7.3 GPH
3650
RPM
65˚ F
93.5 Miles
19.3 PSI
17.5 Gal
Tr
ip
20.1 PSI
Oil Pressure
On Off
Trim Sync
P S
This screen displays fault conditions as
described in the “Alarm” mode section of
this manual (page 40).
Page 10
