MG2000 Tachometer
6
5
4
3
2
1
7
8
9
10
11
12
1
2
3
6
5
4
SmartCraft

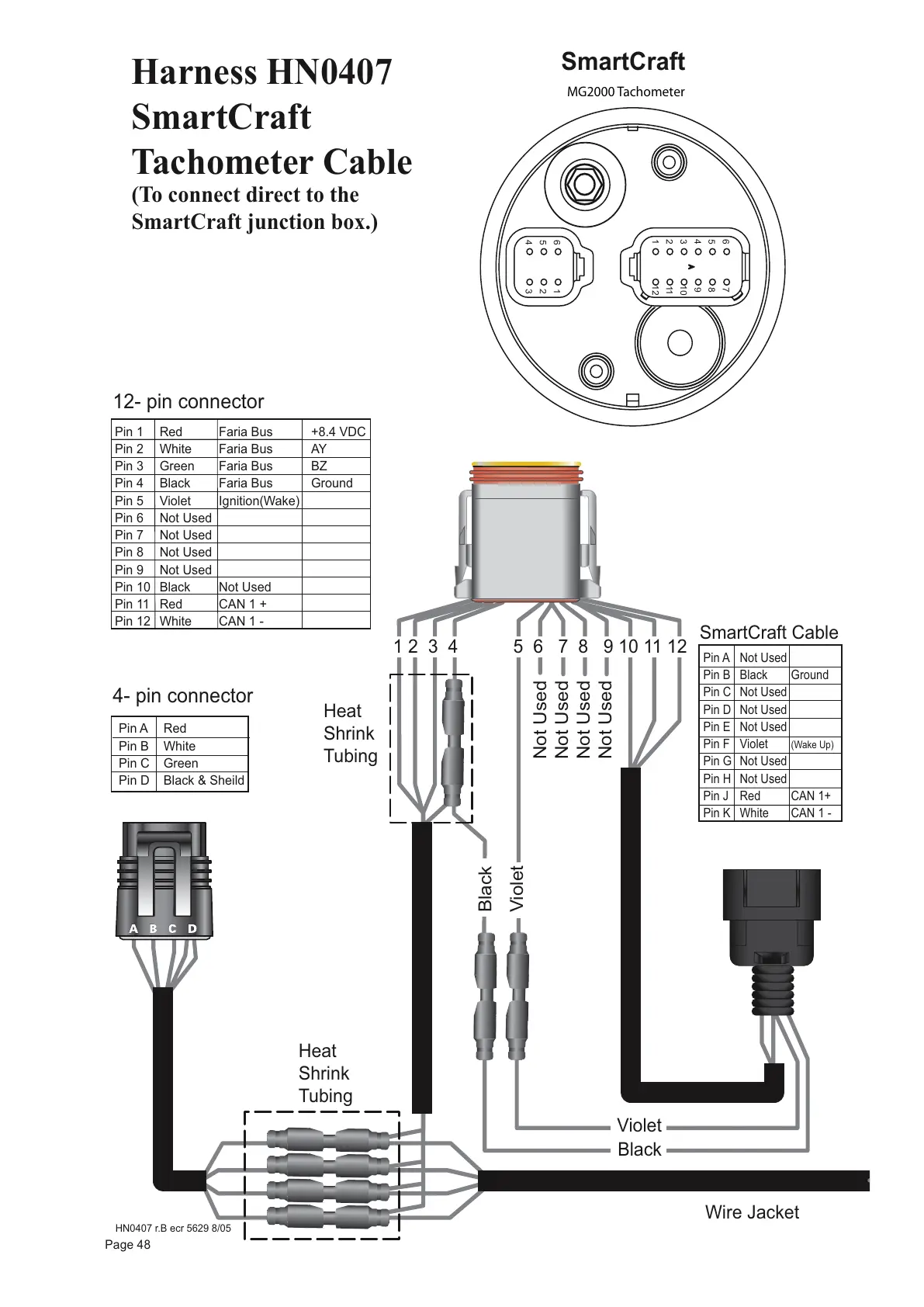

Harness HN0407
SmartCraft
Ta
chometer Cable
(To connect direct to the
SmartCraft junction box.)
4- pin connector
12- pin connector
Pin A Red
Pin B White
Pin C Green
Pin D Black & Sheild
Pin 1 Red Faria Bus +8.4 VDC
Pin 2 White Faria Bus AY
Pin 3 Green Faria Bus
BZ
Pin 4 Black Faria Bus Ground
Pin 5 Violet Ignition(Wake
)
Pin 6 Not Use
d
Pin 7 Not Use
d
Pin 8 Not Use
d
Pin 9 Not Use
d
Pin 10 Black Not Used
Pin 11
Red CAN 1 +
Pin 12 White CAN 1
-
SmartCraft Cable
Pin A Not Used
Pin B Black Ground
Pin C Not Used
Pin D Not Used
Pin E Not Used
Pin F Violet
(Wake Up)
Pin G Not Used
Pin H Not Used
Pin J Red CAN 1+
Pin K White CAN 1
-
1 2 3 4 5 6 7 8 9 10 11 12
Wire Jacket
Heat
Shrink
Tubing
Heat
Shrink
Tu
bing
Violet
Violet
Black
Black
Not Used
Not Used
Not Used
Not Used
HN0407 r.B ecr 5629 8/05
Air Temp Sender
White (Sender Signal)
Black & Shield (Ground)
6
5
4
3
2
1
7
8
9
10
11
12
1
2
3
6
5
4
MG2000 Speedometer
Harness HN0407
Speedometer Cable
1 2 3 4 5 6 7 8 9 10 11 12
Wire Jacke
t
12- pin connector
Pin 1 Red Faria Bus +8.4 VDC
Pin 2 White Faria Bus AY
Pin 3 Green Faria Bus BZ
Pin 4 Black Faria Bus Ground
Pin 5 Not Used
Pin 6 Not Used
Pin 7 Ta
n Temp Signal
Pin 8 Not Used
Pin 9 Not Used
Pin 10 Not Used
Pin 11 Not Used
Pin 12 Not Used
Tan
Not Used
Not Used
Not Used
Not Used
Not Used
Not Used
Not Used
FARIA
Page 48
