Faria SmartCraft MG2000 - HN0503 Tachometer to 2 Gauge Connection

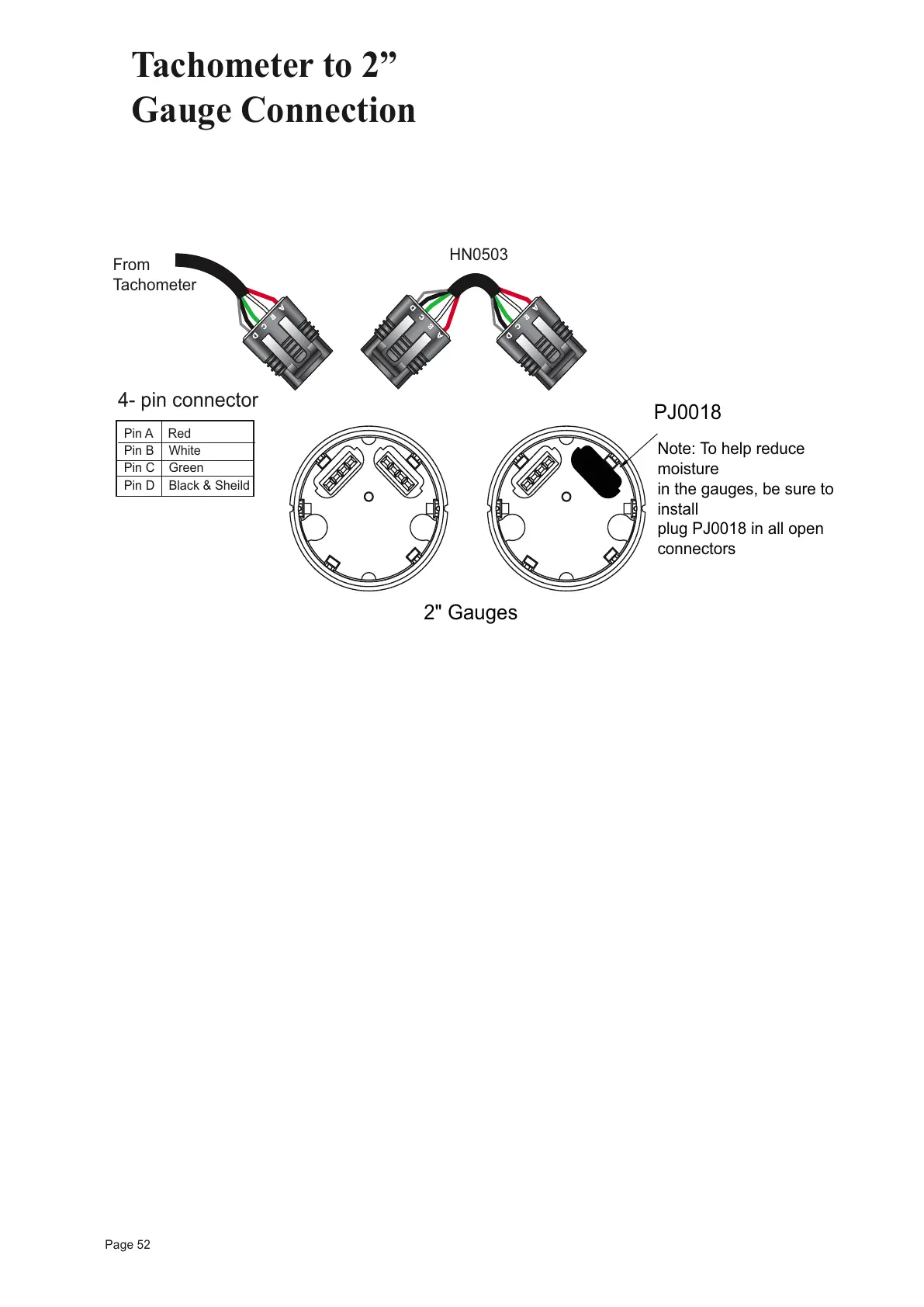

Tachometer to 2”
Gauge Connection
PJ0018
Note: To help reduce
moisture
in the gauges, be sure to
install
plug PJ0018 in all open
connectors
2" Gauges
HN0503
From
Tachometer
4- pin connector
Pin A Red
Pin B White
Pin C Green
Pin D Black & Sheild
