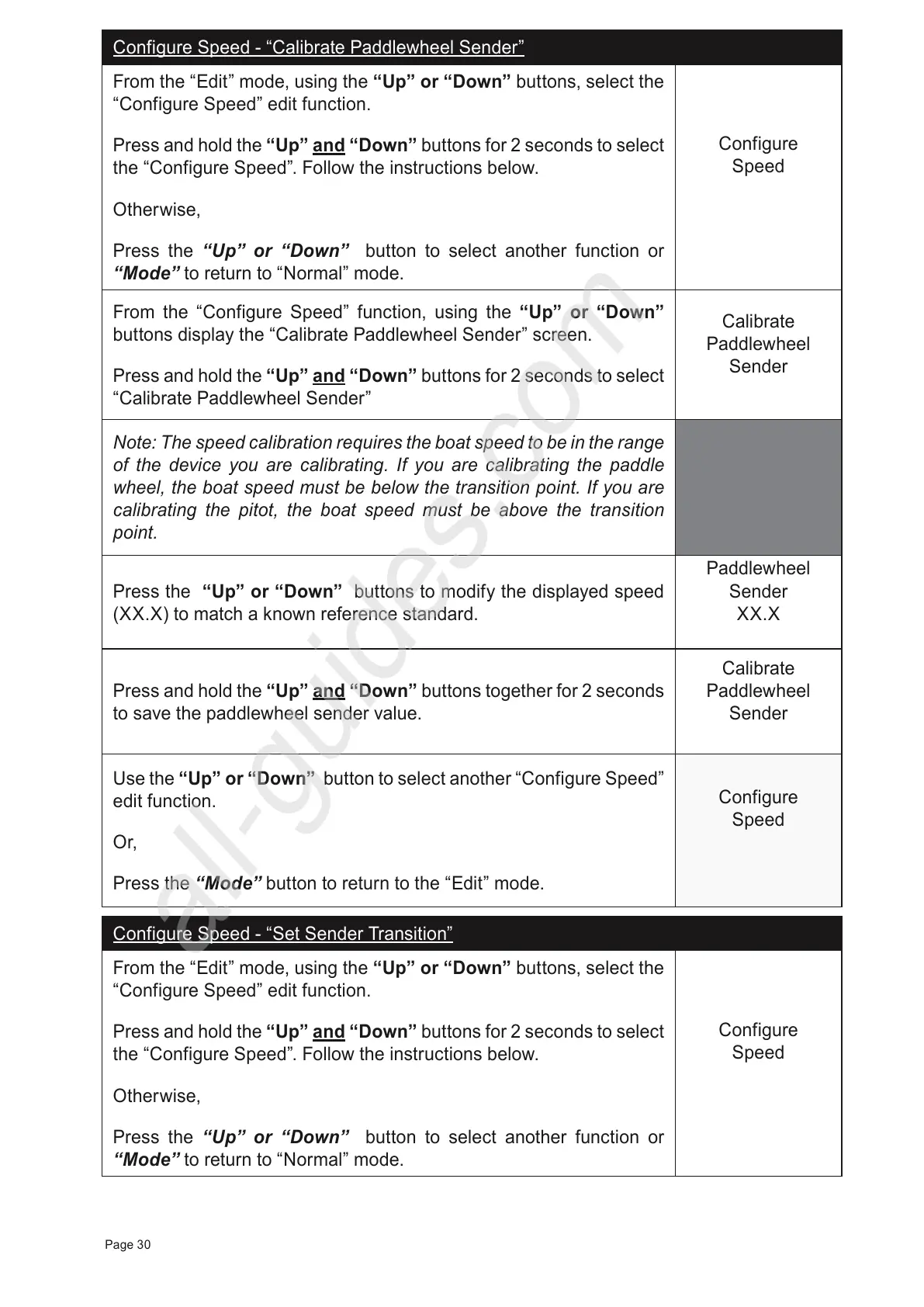

Configure Speed - “Calibrate Paddlewheel Sender”
From the “Edit” mode, using the “Up” or “Down” buttons, select the
“Configure Speed” edit function.
Press and hold the
“Up” and “Down” buttons for 2 seconds to select
the “Configure Speed”. Follow the instructions below.
Otherwise,
Press the “Up” or “Down” button to select another function or
“Mode” to return to “Normal” mode.
Configure
Speed
From the “Configure Speed” function, using the “Up” or “Down”
buttons display the “Calibrate Paddlewheel Sender” screen.
Press and hold the “Up” and “Down” buttons for 2 seconds to select
“Calibrate Paddlewheel Sender”
Calibrate
Paddlewheel
Sender
Note: The speed calibration requires the boat speed to be in the range
of the device you are calibrating. If you are calibrating the paddle
wheel, the boat speed must be below the transition point. If you are
calibrating the pitot, the boat speed must be above the transition
point.
Press the “Up” or “Down” buttons to modify the displayed speed
(XX.X) to match a known reference standard.
Paddlewheel
Sender
XX.X
Press and hold the “Up” and “Down” buttons together for 2 seconds
to save the paddlewheel sender value.
Calibrate
Paddlewheel
Sender
Use the “Up” or “Down” button to select another “Configure Speed”
edit function.
Or,
Press the “Mode” button to return to the “Edit” mode.
Configure
Speed
Configure Speed - “Set Sender Transition”
From the “Edit” mode, using the “Up” or “Down” buttons, select the
“Configure Speed” edit function.
Press and hold the
“Up” and “Down” buttons for 2 seconds to select
the “Configure Speed”. Follow the instructions below.
Otherwise,
Press the “Up” or “Down” button to select another function or
“Mode” to return to “Normal” mode.
Configure
Speed
Page 30
