Faria SmartCraft MG2000 - HN0566 - Direct to Smartcraft Junction Box Cable

MG2000 Tachometer
6 5 4 3 2 1
7 8 9
10 11 12
1 2 3
6 5 4

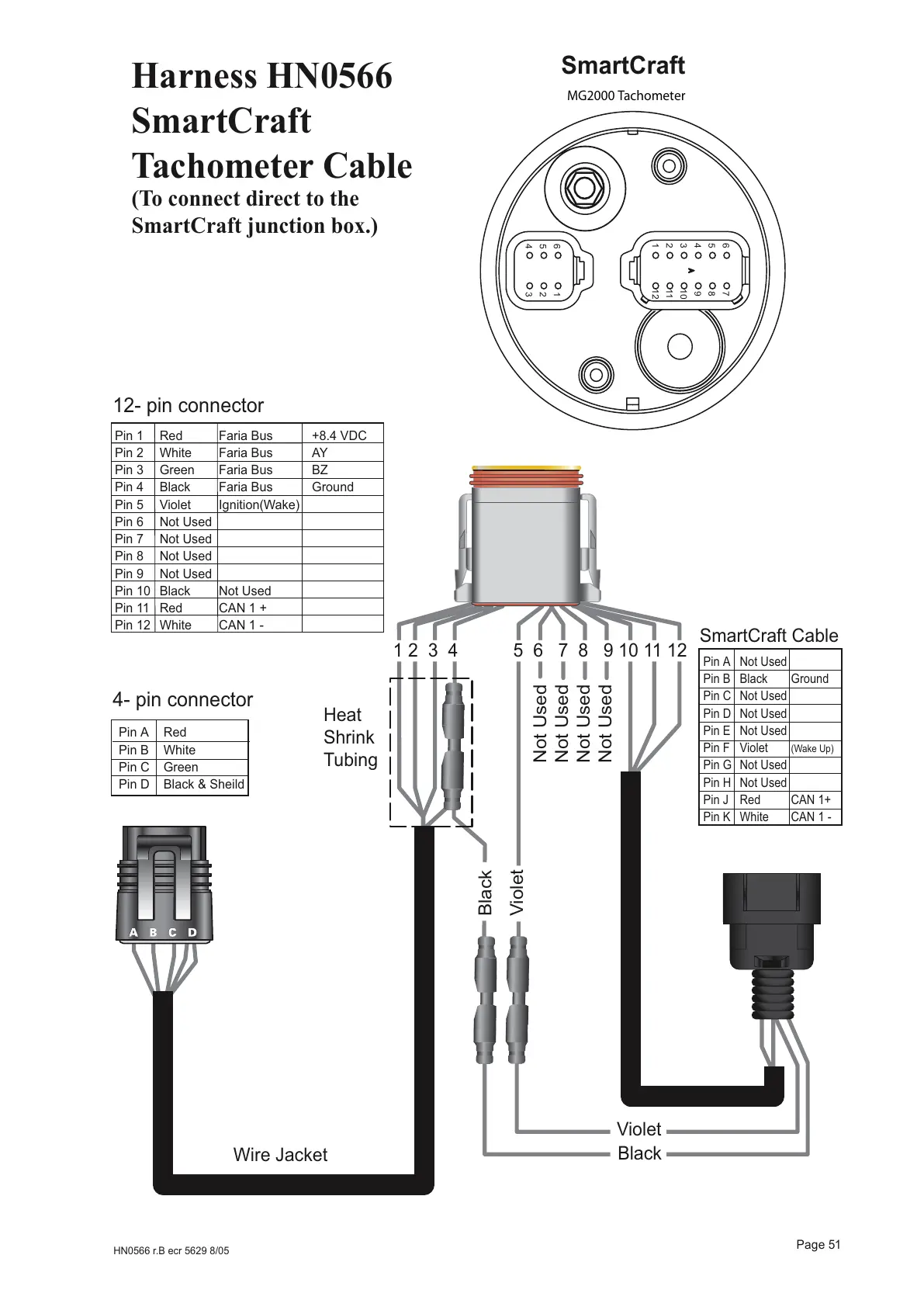

SmartCraft
Harness HN0566
SmartCraft
Ta
chometer Cable
(To connect direct to the
SmartCraft junction box.)
4- pin connector
12- pin connector
Pin A Red
Pin B White
Pin C
Green
Pin D Black & Sheild
Pin 1 Red Faria Bus +8.4 VDC
Pin 2 White Faria Bus AY
Pin 3
Green Faria Bus BZ
Pin 4 Black Faria Bus
Ground
Pin 5 Violet
Ignition(Wake)
Pin 6 Not Used
Pin 7 Not Used
Pin 8 Not Used
Pin 9 Not Used
Pin 10 Black Not Use
d
Pin 11
Red CAN 1 +
Pin 12 White CAN 1
-
SmartCraft Cable
Pin A Not Used
Pin B Black Ground
Pin C Not Used
Pin D Not Used
Pin E Not Used
Pin F Violet
(Wake Up)
Pin G Not Used
Pin H Not Used
Pin J Red CAN 1+
Pin K White CAN 1
-
1 2 3 4 5 6 7 8 9 10 11 12
Wire Jacket
Heat
Shrink
Tubing
Violet
Violet
Black
Black
Not Used Not Used Not Used Not Used
HN0566 r.B ecr 5629 8/05
Page 51
