Chapter 2: Setup
For more information see “Mounting Stiffness Test” on page 36 and “FARO
Gage Performance Verification Checklist” on page 44.
Surface Mount Plate Dimensions
The Surface Mount Plate is used to clamp or bolt the Gage to a stable mounting
surface. It is an assembly of a standard 3½” mounting ring and a FARO designed
base plate.
You can bolt the Surface Mount Plate directly to a surface using the mounting
screws in the Probe Case. Make sure to tighten each mounting screw with the hex
wrench.

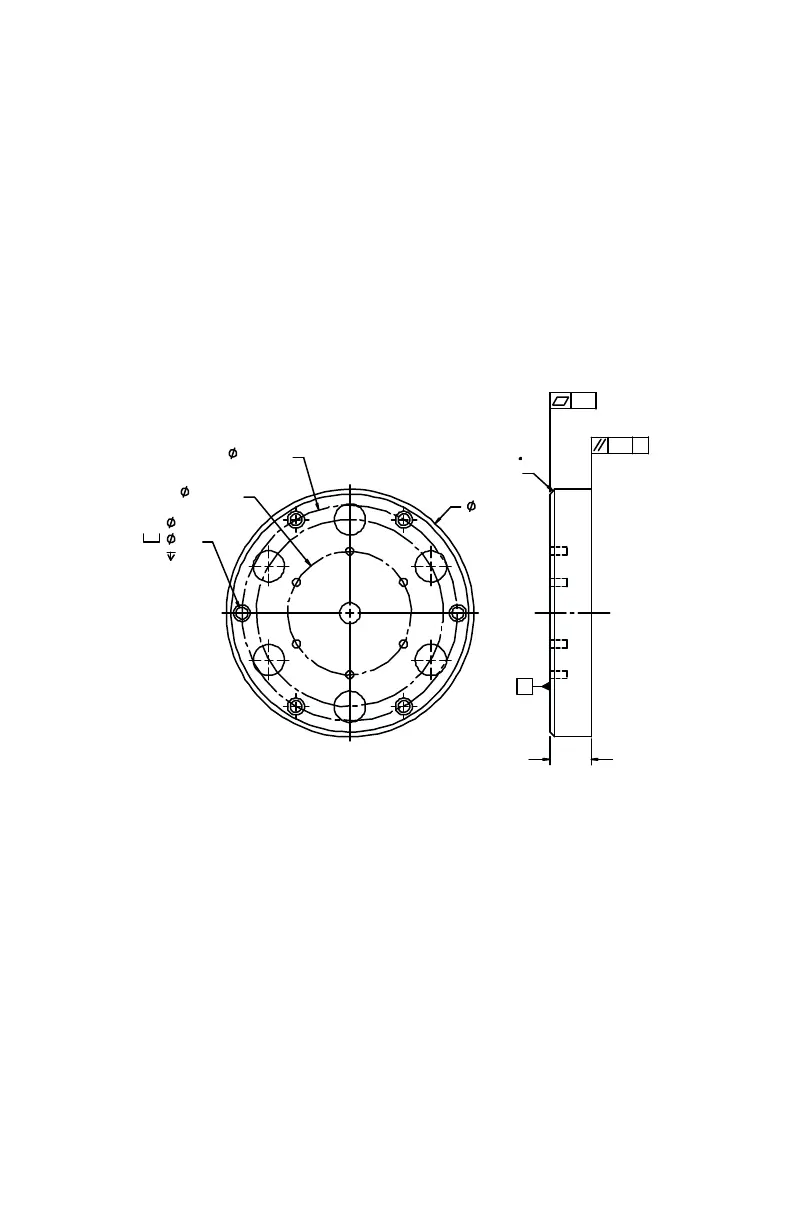

Figure 2-4 Surface Mount Plate dimensions
5.950
BC2.970
.406
.38
BC5.187
6X .281
A
CHAMFER
.12 X 45
.001
.001
A
1.00
