FARO Gage
May 2011
11
Chapter 2: Setup
You can bolt the 3½” mounting ring directly to a surface using the mounting
screws in the Probe Case. Make sure to tighten each mounting screw with the hex
wrench.
Installing Probes
The probe attaches to the threaded handle at the end of the Gage. Use the 12mm
wrench in the Probe Case to install the probe.
1 Hold the button area near the end of the Gage with one hand.

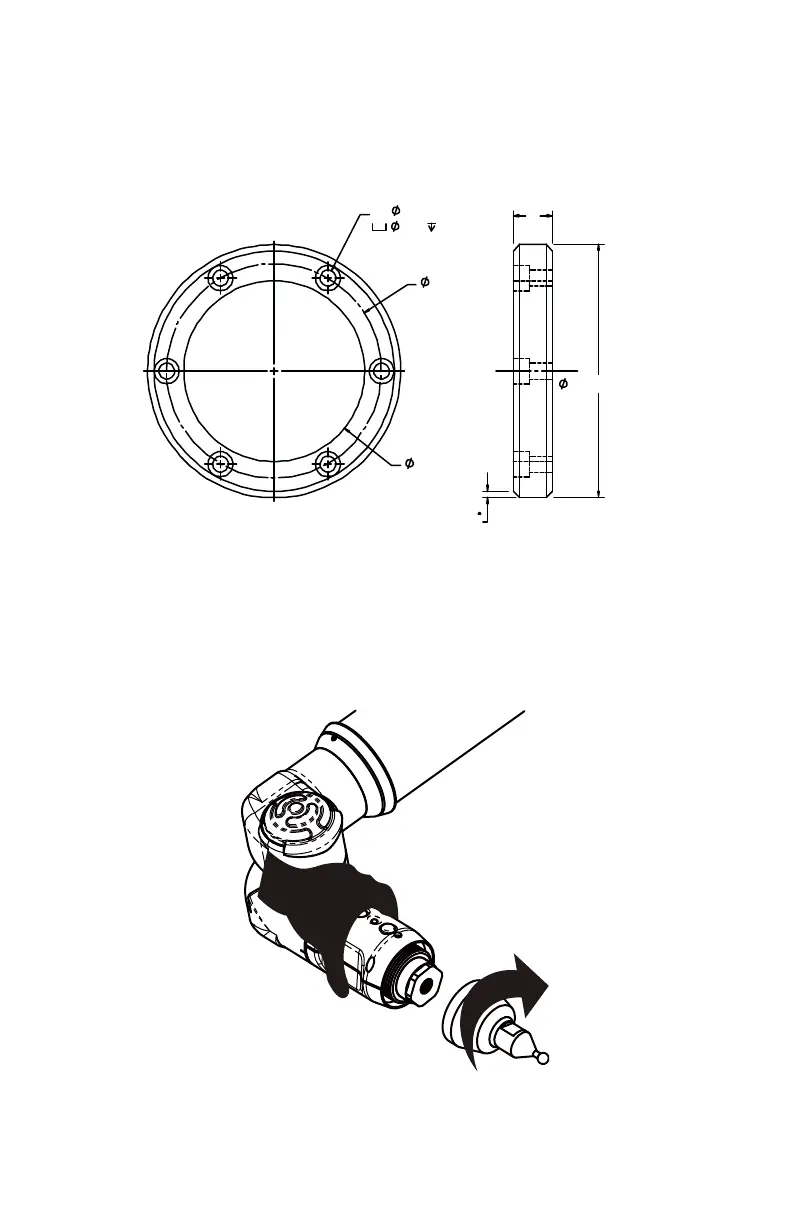

Figure 2-5 Standard 3½” Mounting Ring dimensions
Figure 2-6 Installing a Probe
EQUALLY SPACED
WITHIN .005
3.500-8 UNC-2A
2X .09 X 45
CHAMFER
.54
2.50
2.970
.344
.22
6X .218
08M47E00_FAROGage.book Page 11 Wednesday, June 8, 2011 4:12 PM
