Chapter 7: Configuring the FARO Gage in CAM2 Gage
The digitized compensation points then
calculate and the C
OMPENSATION STATUS
updates. If the probe passes, the current date
and time is added to the probe information.
You can view the details for all of the
compensations of a probe by clicking the View
Log button. See “View Log” on page 64.

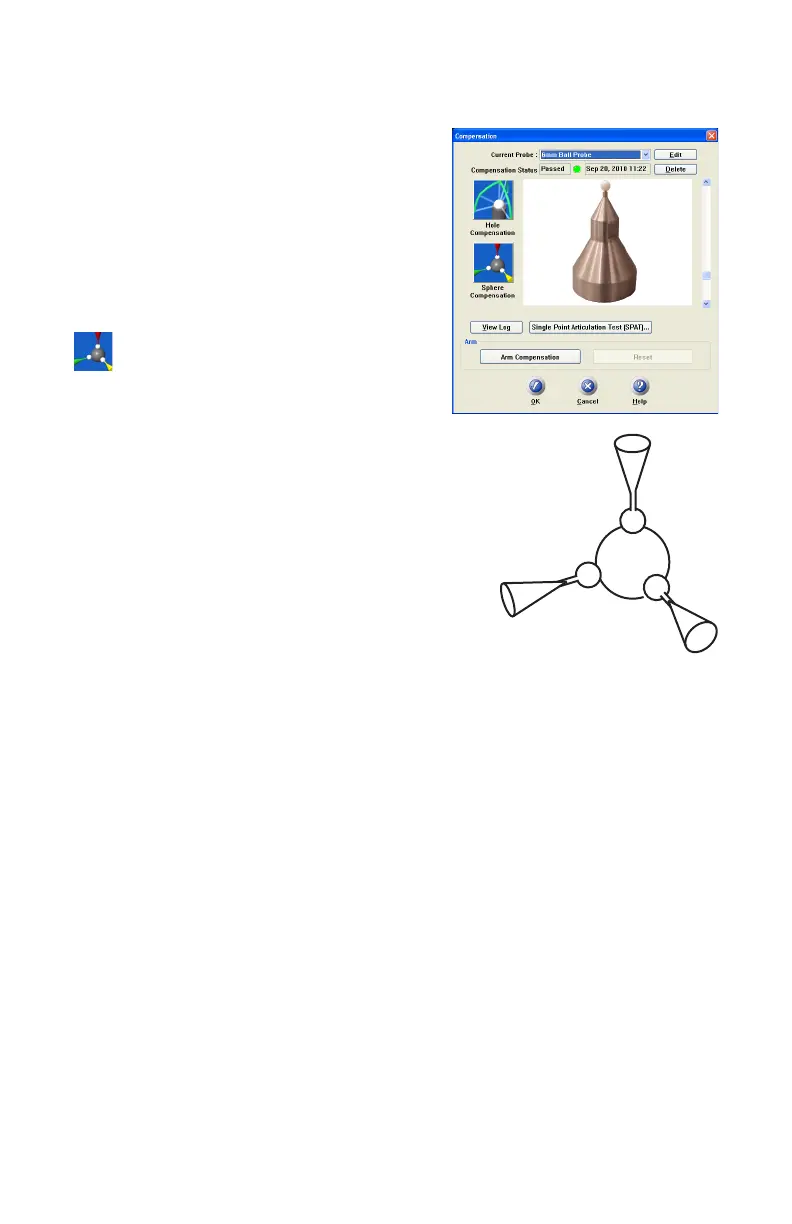

Sphere Method
Perform the Sphere compensation using any
size precision sphere or tooling ball. The sphere
should be at least 10mm (3/8”) diameter or larger.
You will digitize 45 individual points in specific
locations around the sphere by pressing the FRONT
button for each.
CAUTION: The ball probe must remain in contact
with the sphere while digitizing points. Even one or
two poorly digitized points significantly affects the
optimization process, which then has an effect on
the accuracy of the Gage.
Position #1
Position #2
Position #3
