Engine / Injection Pump
Fuel Injection Pump VP 44 - Mounting - Dismounting
G
Repair
Fav 900 Chassis number 23/3001 and up
01/2000
2710 000002
G
b
7/10
Capitel Docu-No.
Index
Date Version
Page
Fuel Injection Pump VP 44 - Mounting - Dismounting
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PMTAB_Picture

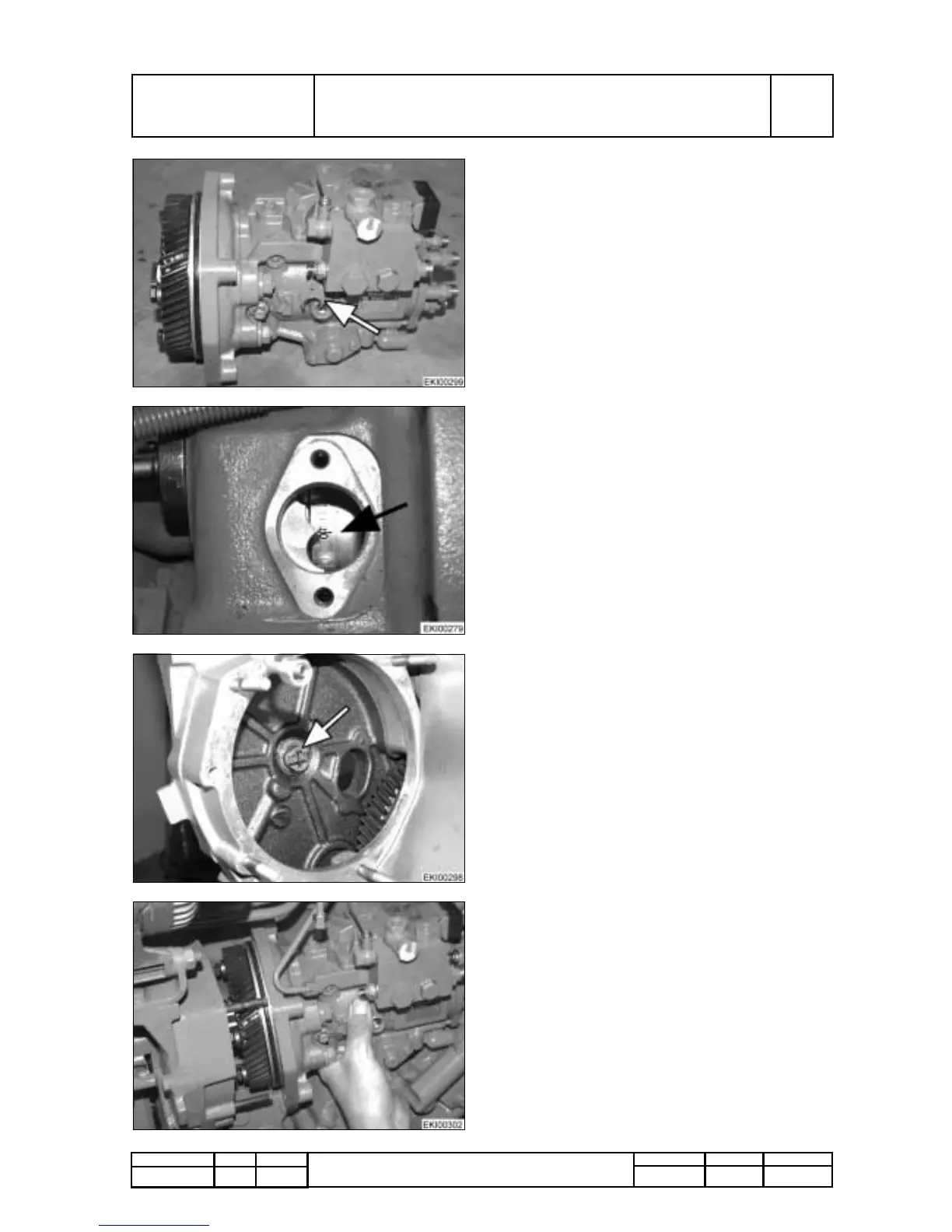

Settings of a new injection pump VP 44.
- Start of delivery from TDP of first cylinder (Fan
Side) .
- Screws of injection pump drive pinion ( 4 x M8 )
are loose.
- Blocking screw is tightened without spacing
washer.
- Spacing washer is tied on pump body.
PMTAB_Picture
Check TDP of the first cylinder.
PMTAB_Picture
Adjust fuel lifting pump drive (arrow) as well as the
injection pump drive (arrow).
PMTAB_Picture
Put injection pump into place.
