FENDT MAN D 0836 LE - Page 129

Fav 900
Engine / Injection Pump
Fuel Injection Pump VP 44 - Mounting - Dismounting
G
Repair
Fav 900 Chassis number 23/3001 and up
01/2000
2710 000002
G
b
8/10
Capitel Docu-No.
Index
Date Version
Page
Fuel Injection Pump VP 44 - Mounting - Dismounting
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PMTAB_Picture

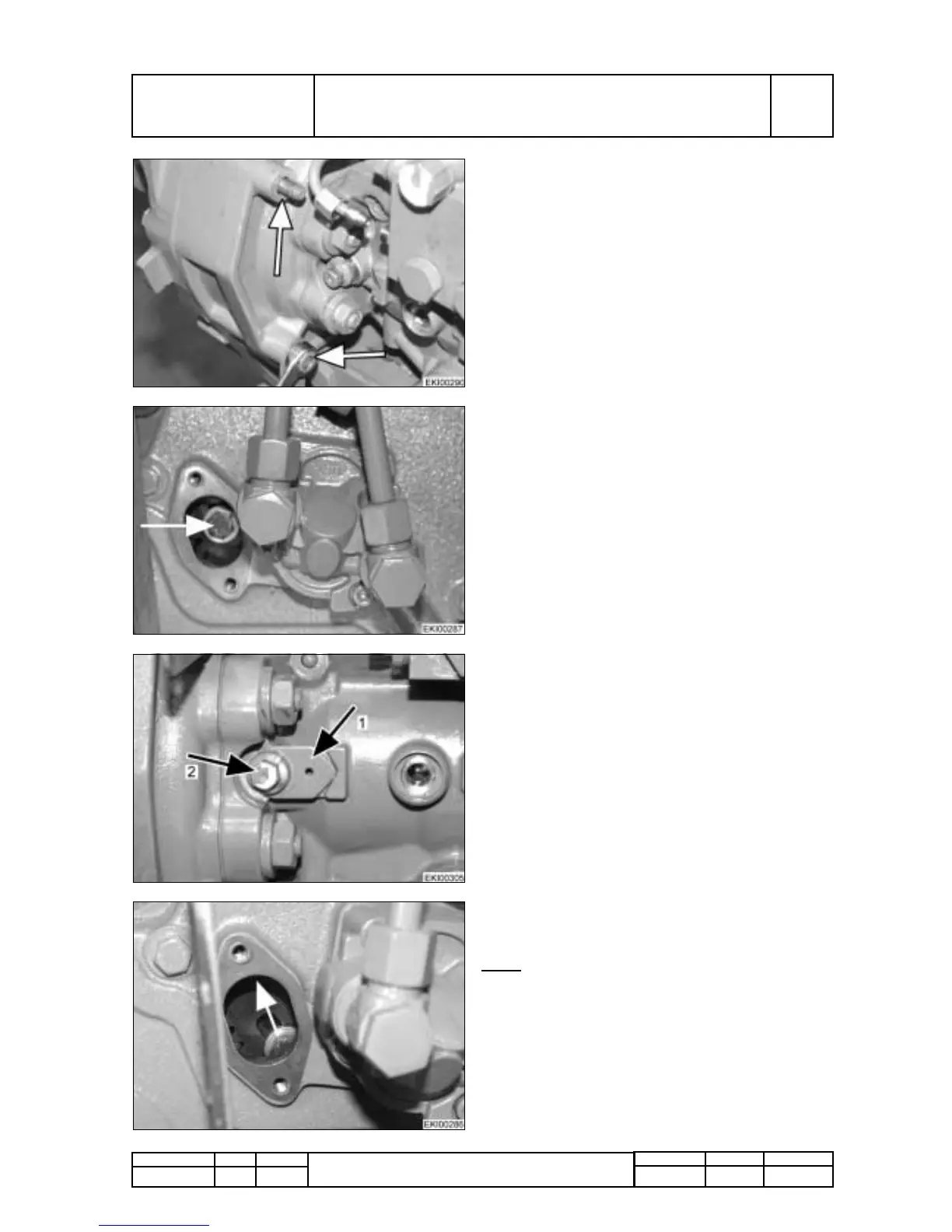

Tighten 4 x nuts (M8) from pump flange (arrows)
at 25 Nm .
PMTAB_Picture
Tighten first visible screw (M8) at 25 Nm .
PMTAB_Picture
- Loosen blocking screw ( Pos. 2 ).
- Put spacing washer (Pos. 1) into place.
- Tighten blocking screw (Pos. 2).
PMTAB_Picture
Turn crank shaft with the actuation tool and
tighten visible screws 2,3 and 4 at 25 Nm . Put
cover into place.
Note:
Check start of delivery point.
