FENDT MAN D 0836 LE - Refitting the Crankshaft

Fav 900
Engine / Short block
Removing and refitting the crankshaft
G
Repair
Fav 900 chassis number 23/3001and up
20.2.2001
2210 000008
G
a
2/3
Capitel Docu-No.
Index
Date Version
Page
Removing and refitting the crankshaft
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PMTAB_Picture

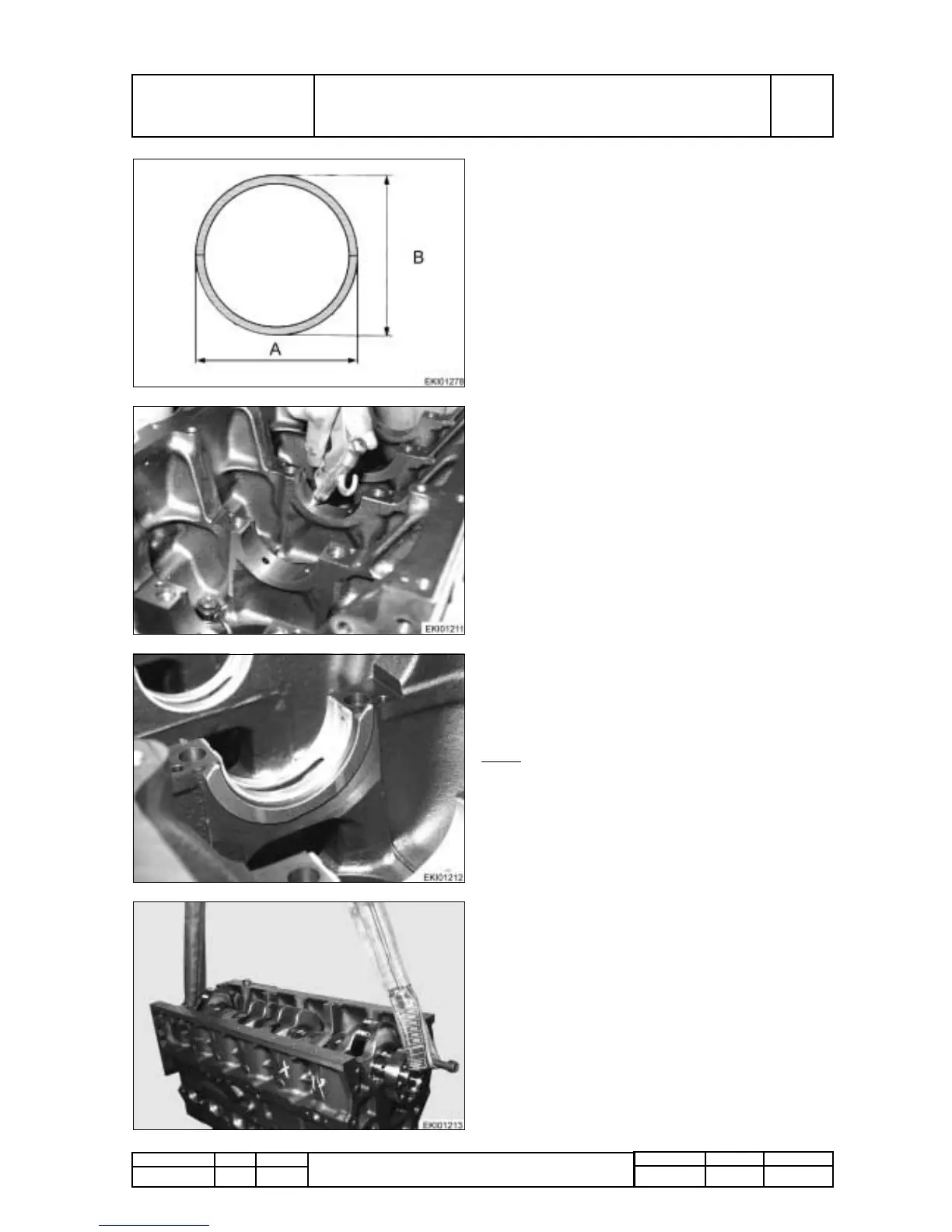

Checking bearing shell spread
Place bearing shells together on a level surface.
Measure and note dimension "A",repeat for "B".
Spread= A - B.
PMTAB_Picture
Refitting the cranshaft
Clean oil ducts in crankcase and camshaft with
dry compressed air.
PMTAB_Picture
Thoroughly clean bearing shells and journals.
Insert bearings shells in crankcase, observing
identification numbers.
Stick the upper part of the axial to washer with
grease onto crankcase.
Note:
When using new bearing shells, observe
relevant repair size.
PMTAB_Picture
Lubricate running surfaces of bearing shells and
fit crankshaft.
