Engine / Short block
Removing and refitting the crankshaft
G
Repair
Fav 900 chassis number 23/3001and up
20.2.2001
2210 000008
G
a
3/3
Capitel Docu-No.
Index
Date Version
Page
Removing and refitting the crankshaft
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PMTAB_Picture

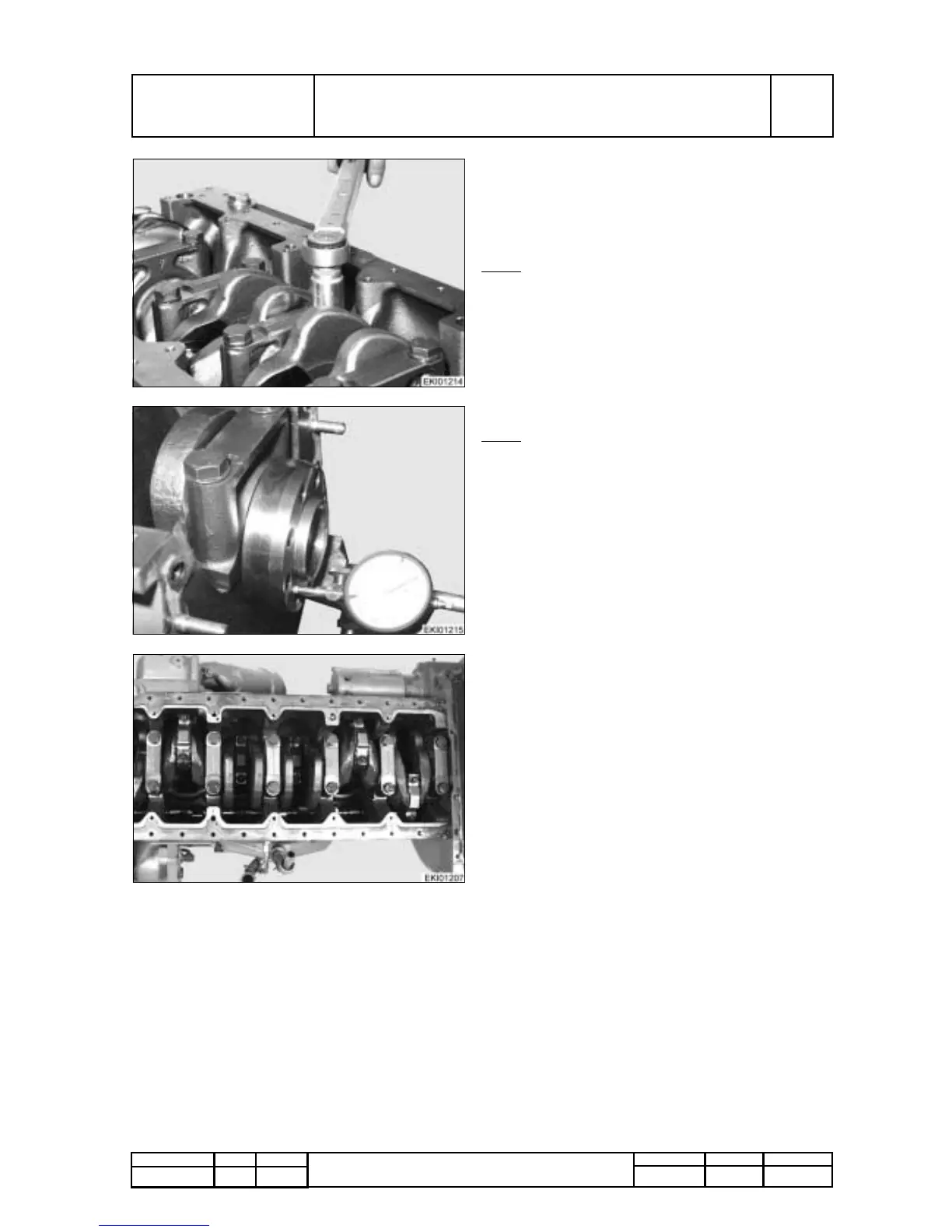

Match bearing caps to relevant bearing shells.
Lubricate running surfaces of bearing shells and
fit caps.
Insert bearing cap screws and gradually tighten
from the center outwards at specified torque.
Note:
Faulty bearing caps cannot be replaced
uniquely.
PMTAB_Picture
Checking end play
Note:
The end play of the crankshaft is determined
by the condition of the main bearing.
● Position gauge holder with dial on the
crankshaft.
● Press scanning tip of gauge onto flywheel
flange or crankshaft.
● Press crankshaft back and forwards and read
off end play on the dial gauge.
● If the maximal permissible end play is
exceeded, all main bearings must be replaced.
PMTAB_Picture
Assembling the engine
● Refit piston and con rod assembly
● Check crankshaft for free running.
● Refit cylinder heads.
● Refit timing case, flywheel housing and
flywheel.
● Refit oil pan, oil line and balancer gear.
