Fav 900
Engine / Short block
Removing and refitting con-rod
G
Repair
Fav 900 chassis number 23/3001 and up
21.2.2001
2210 000009
G
a
3/5
Capitel Docu-No.
Index
Date Version
Page

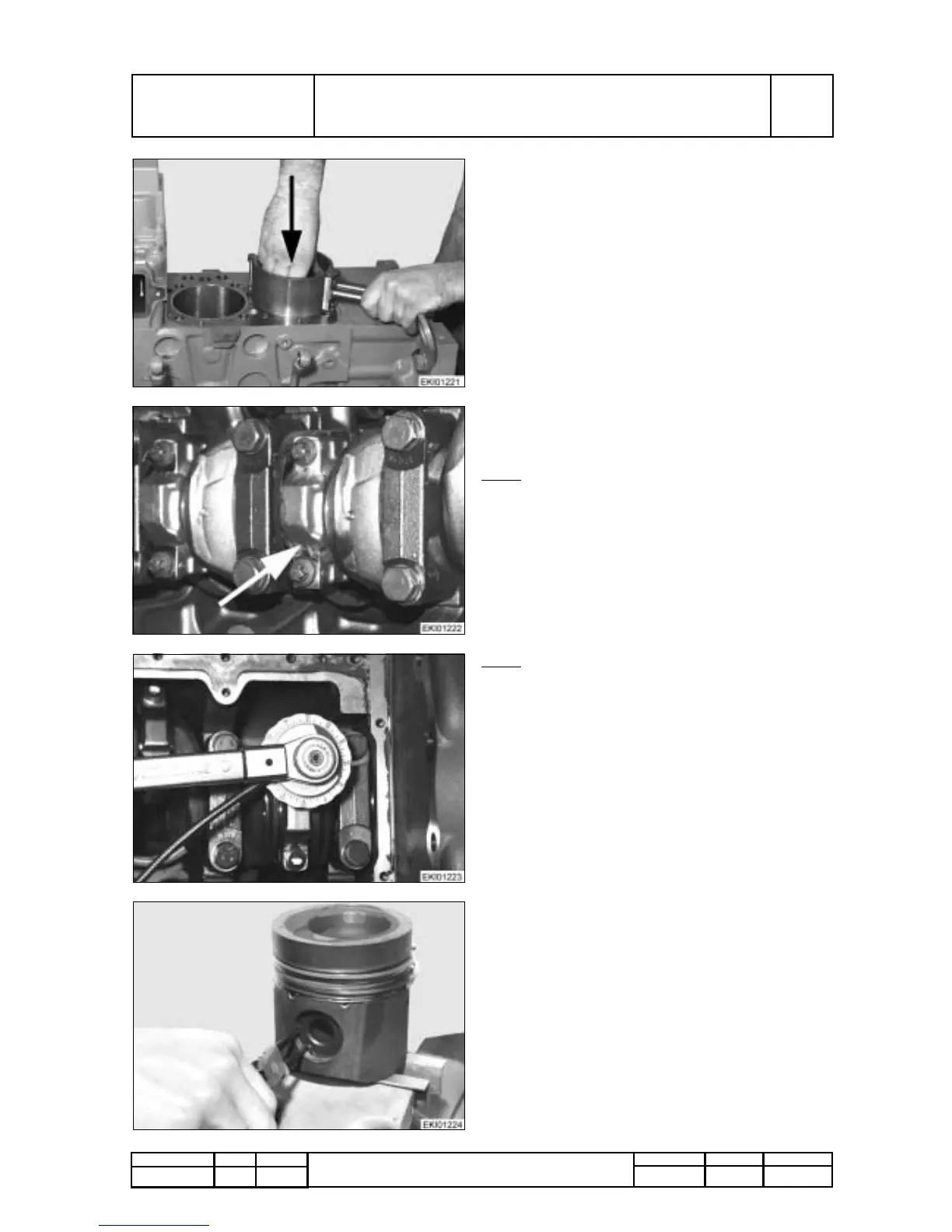

Removing and refitting con-rod
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PMTAB_Picture
Guide con-rod and insert piston until big end
makes contact with the bearing journal.
PMTAB_Picture
Fit con-rod bearing shells into bearing caps.
Fit bearing caps, making sure the numbers are
matching.
Note:
Numbers on bearing cap and big end must be
on the same side.
Chamfered side (Arrow) on con- rod cap must
show toward cooling oil nozzle.
PMTAB_Picture
Note:
Never reuse con-rod bearing bolts .
Insert new con-rod bearing bolts and gradually
tighten to specified torque.
Use torque angle indicator for final tightening
process.
PMTAB_Picture
Removing piston from con-rod
Remove piston with con-rod.
Clamp con-rod in a vise, using non-metallic jaws.
Remove piston pin circlips.
To Next Page
