A. Technical appendix
A-18
Festo P.BE-CB-COMP-EN en 1102d

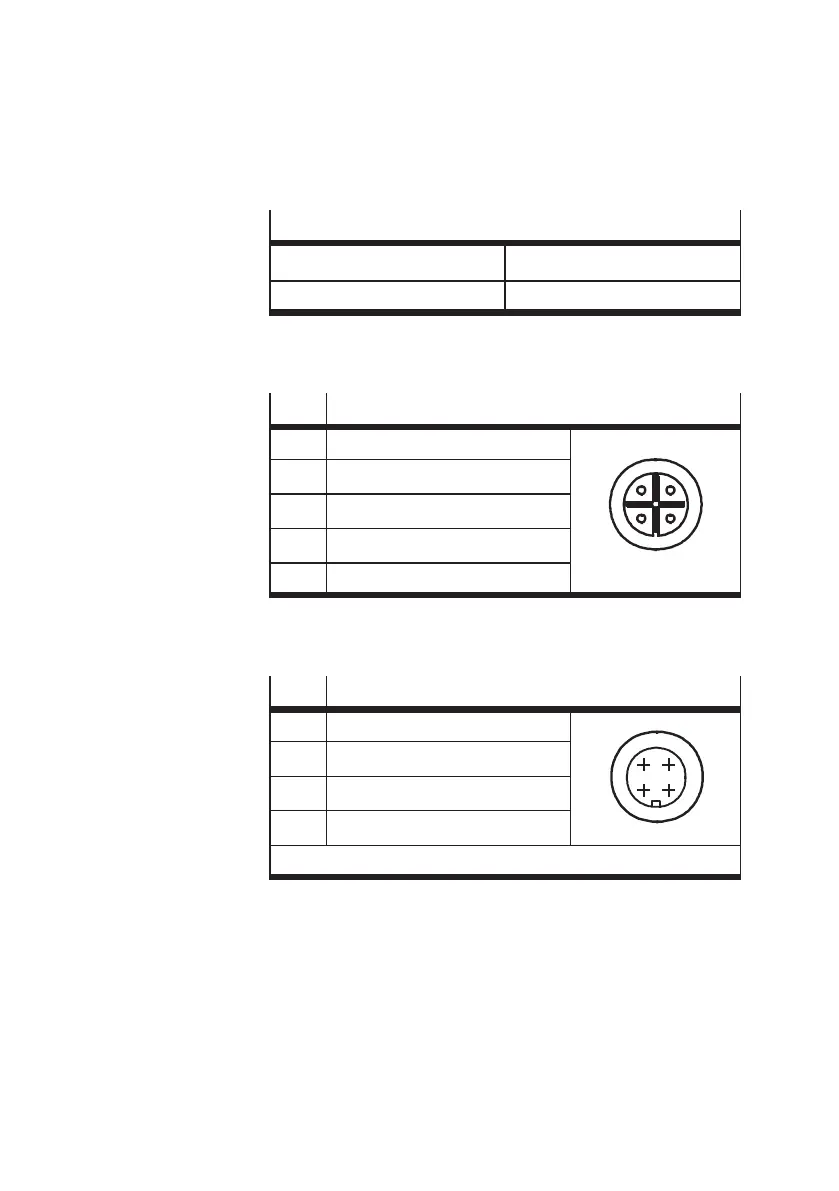

Duo cable marking
Signal x Bufferzonesensor1
Signal x + 1 Small parts conveyor (feeder)
Tab. A/8: Duo cable marking
Pin
ACTUATORS connector socket
O/1 Act uator 3
1
43
2
5
O/2 Act uator 2
3 GND
O/4 Act uator 1
5 Do not connect
Tab. A/9: ACTUATORS connector socket
Pin
Connector socket DIAG
1)
I/1 Received data
1
43
2
O/2 Transmitted data
3 Data GND
4 Screened
1)
Interface for diagnostics PC: Cable type KDI-SB202-BU9
Tab. A/10: DIAG connector socket
