1.4 Operating principle
123
4
5
6
1 Small parts conveyor e.g. vibration feeder, centrifuge, step conveyor
2 Transporting device e.g. conveyor belt, linear axis
3 Actuators e.g. exhaust valves
4 Further transfer of good parts to a buffer zone or the next machine
5 Sorting out bad parts (faulty parts, foreign parts)
6 Return of incorrectly oriented parts to the small parts conveyor

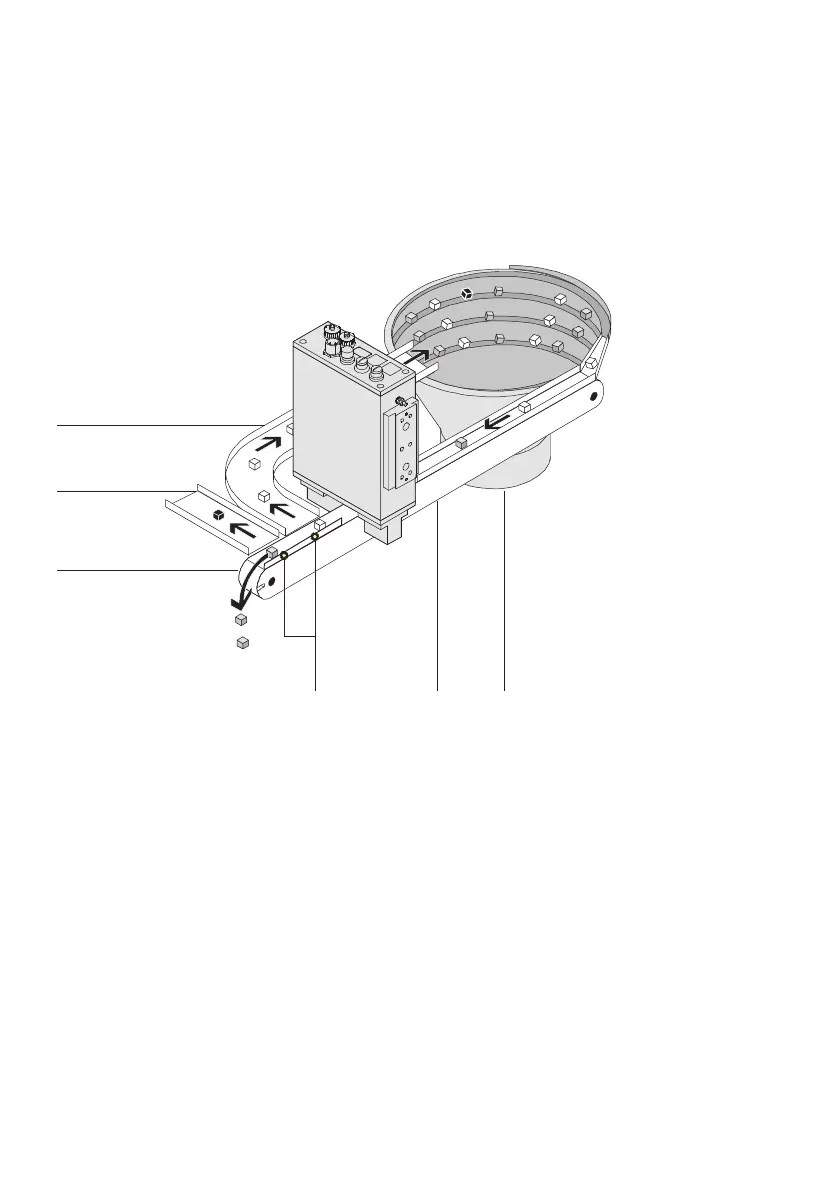

Fig. 1/1: Integrating the Checkbox in a conveyor device
Example with conveyor belt and two actuators
