A.4 Connections

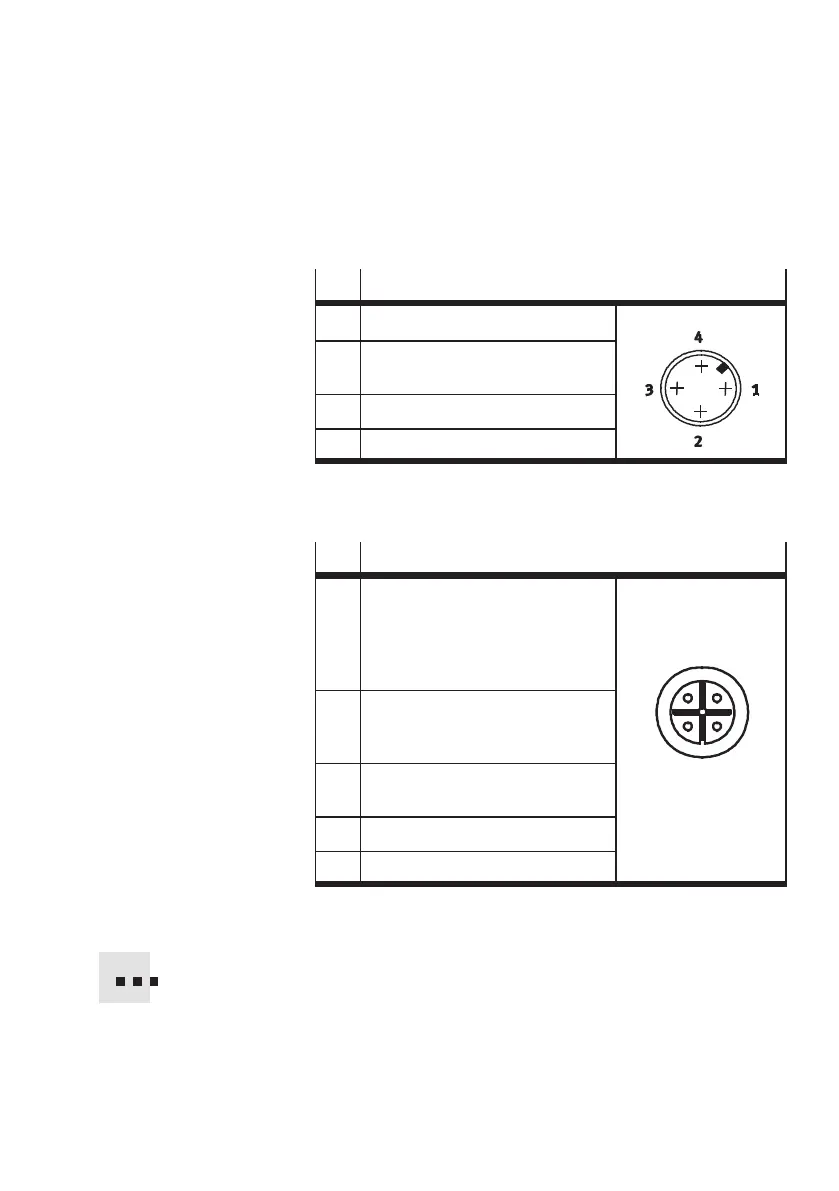

Pin 24 V DC connector plug
1 Do not connect
2 +24VDC,+/-15%;protectwith
5 A medium time-lag fuse
3 GND
4 Do not connect
Tab. A/6: 24 V DC connector plug
Pin
BUFFER/FEEDER connector socket
O/1 24 V DC/Box ready
– Reference voltage for sensors,
switched off in Stop status
– Ready status
– Control for transporting device
1
43
2
5
O/2 Feeder
Controlling the supply system
(small parts conveyor)
3 GND
Reference voltage for sensors
I/4 Bufferzonesensor1
5 Do not connect
Tab. A/7: BUF FER/FE EDER connector socket
Direct connection can optionally be made with a Festo Duo
cable (see Accessories, Appendix A.6.).
