2. Fitting and commissioning
2-15
Festo P.BE-CB-COMP-EN en 1102d
2.5 Commissioning the Checkbox
1
Illuminated
push-button
ST ART/STOP
2 Illuminated
push-button
ST ATUS/TEACH
3 Display
23
1

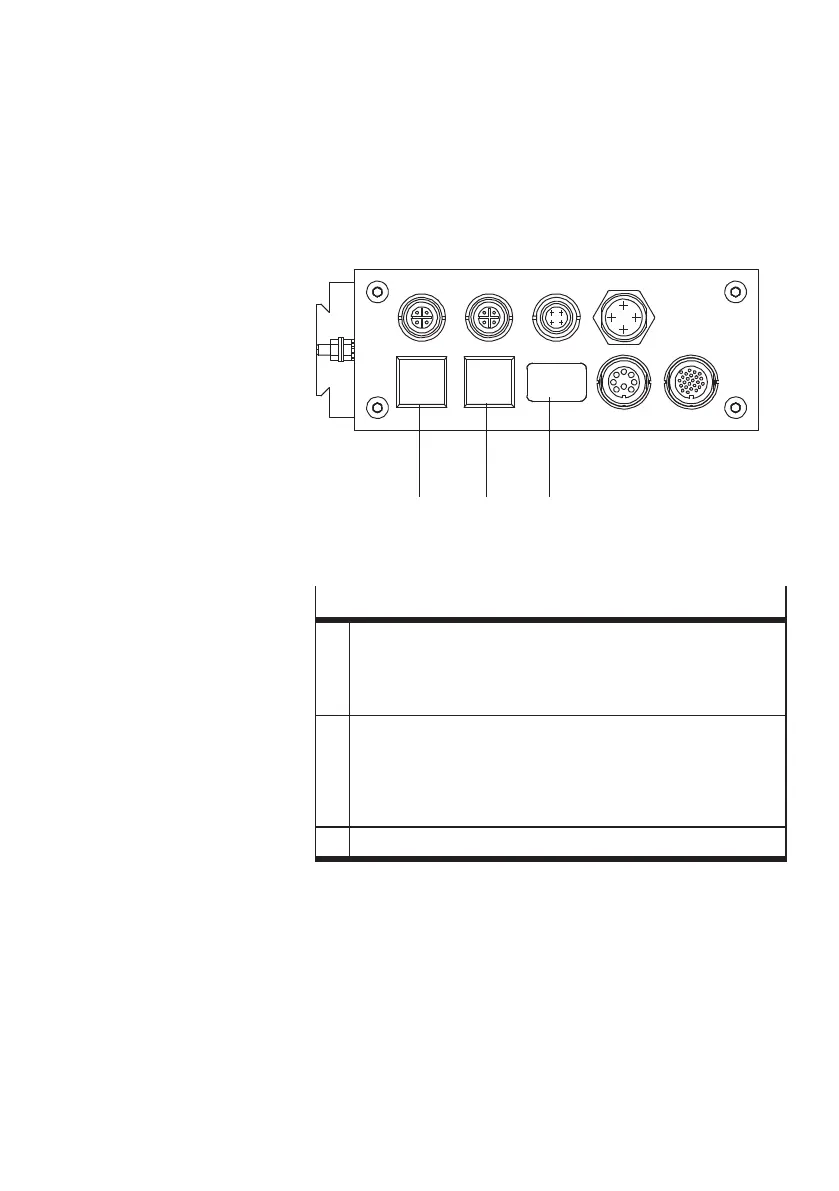

Fig. 2/5: Display and operating elements
Function
1 – Starting and stopping the Checkbox
– Display of the switching function Star t (green)/Stop (red)
– Acknowledging errors
– Saving the Teac h data
2 – Switch between AUTO and TEACH modes
– Selecting the orientation in the TEACH mode
– Displaying the scan procedure
– Accessing system information (e.g. be lt speed during
operation with encoder)
3 – System information and operating displays
