2. Fitting and commissioning
2-5
Festo P.BE-CB-COMP-EN en 1102d
A connecting kit (type HMSV-12) is available as an accessory
from Festo.
1 Mounting profile
of the Checkbox
2 Clamping
elements with
4M5x45socket
head screws
3 2 M5x16 socket
head screws with
centring sleeves
4 Adapter plate
1
2
3
4

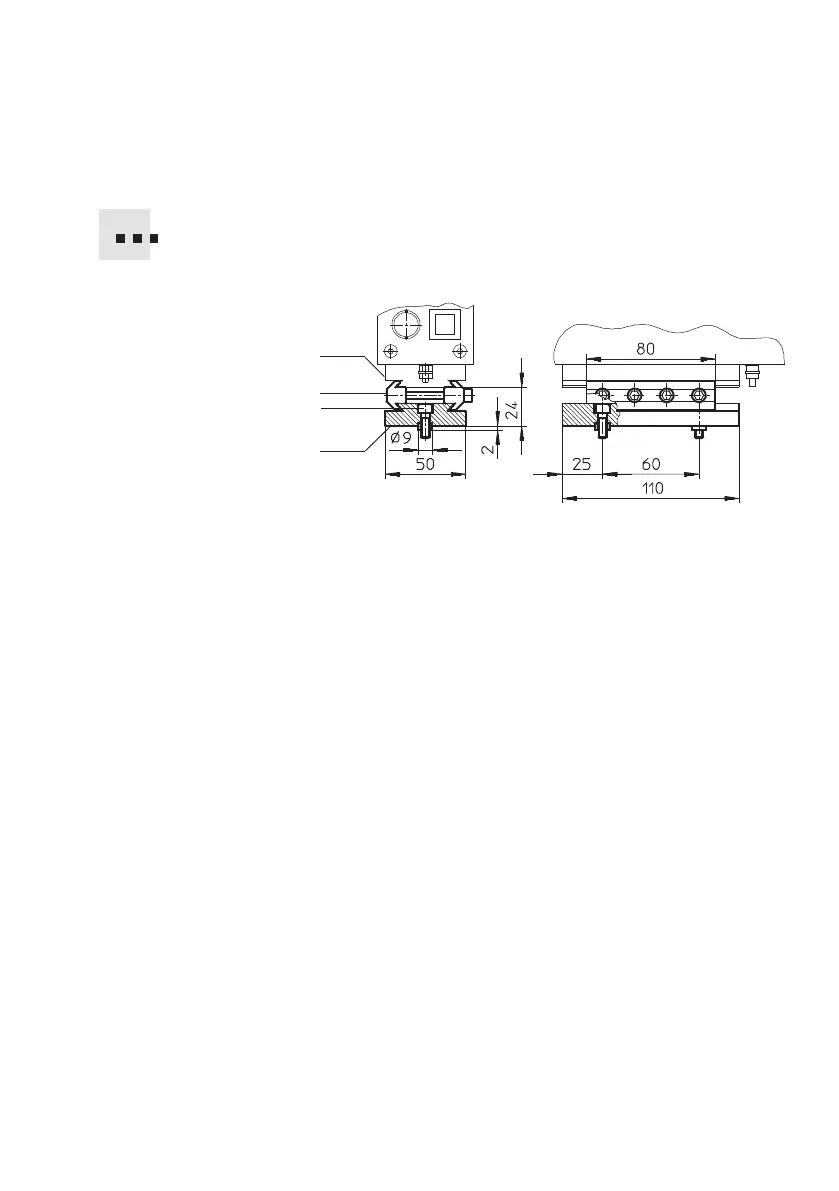

Fig. 2/2: Fastening the Checkbox with connecting kit type HMSV-12
Fasten the Checkbox over the conveyor device so that:
– the warning sign on the device is still visible (Fig. 2/1 )
– the Checkbox and the conveyor device are fastened stably
to each other (Fig. 2/3)
– the viewing range of the camera is not impeded
– the optical channel is not covered by the conveyor device.
