Proceed as follows:
1. Switch off the operating voltage.
2. Assign an unused fieldbus address to the CP system.
3. Use a screwdriver to set the arrow of the relevant
address switch or DIL switch 1 to the units, tens or
hundreds figure of the desired fieldbus address.
Examples
Set fieldbus address Set fieldbus address
005 121

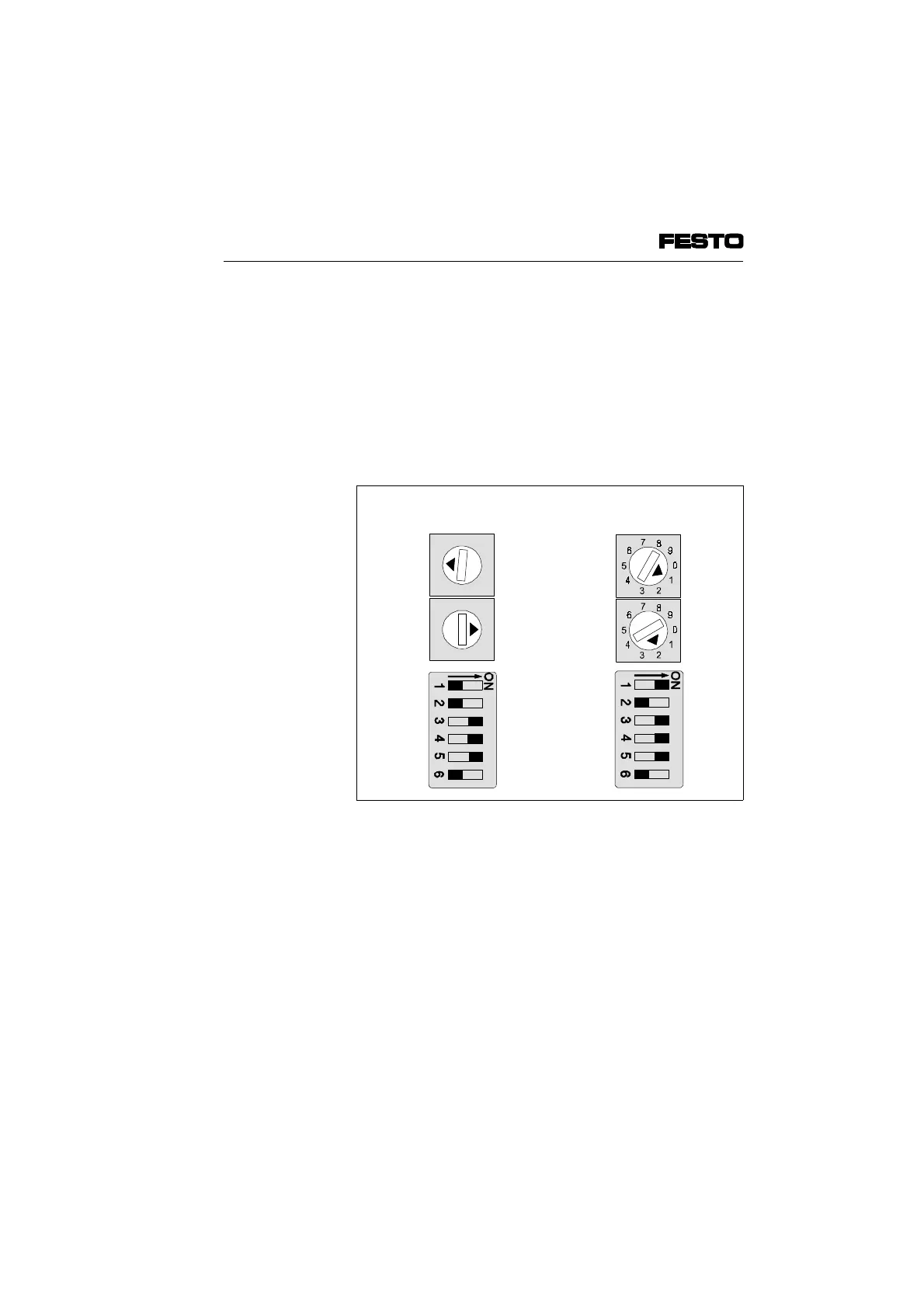

Fig. 1/3: Example of set fieldbus addresses
6
5
2
7
8
9
0
1
3
4
6
5
2
7
8
9
0
1
3
4
1. Installation
CP-FB13-E 9904b 1-9
