4.2.3 Adding a device
1. Double-click the device to be configured in the device window.
The "Device" tab for making settings for the device opens in the editing window.
The following information and setting options can be found in the sub-tab for the device:

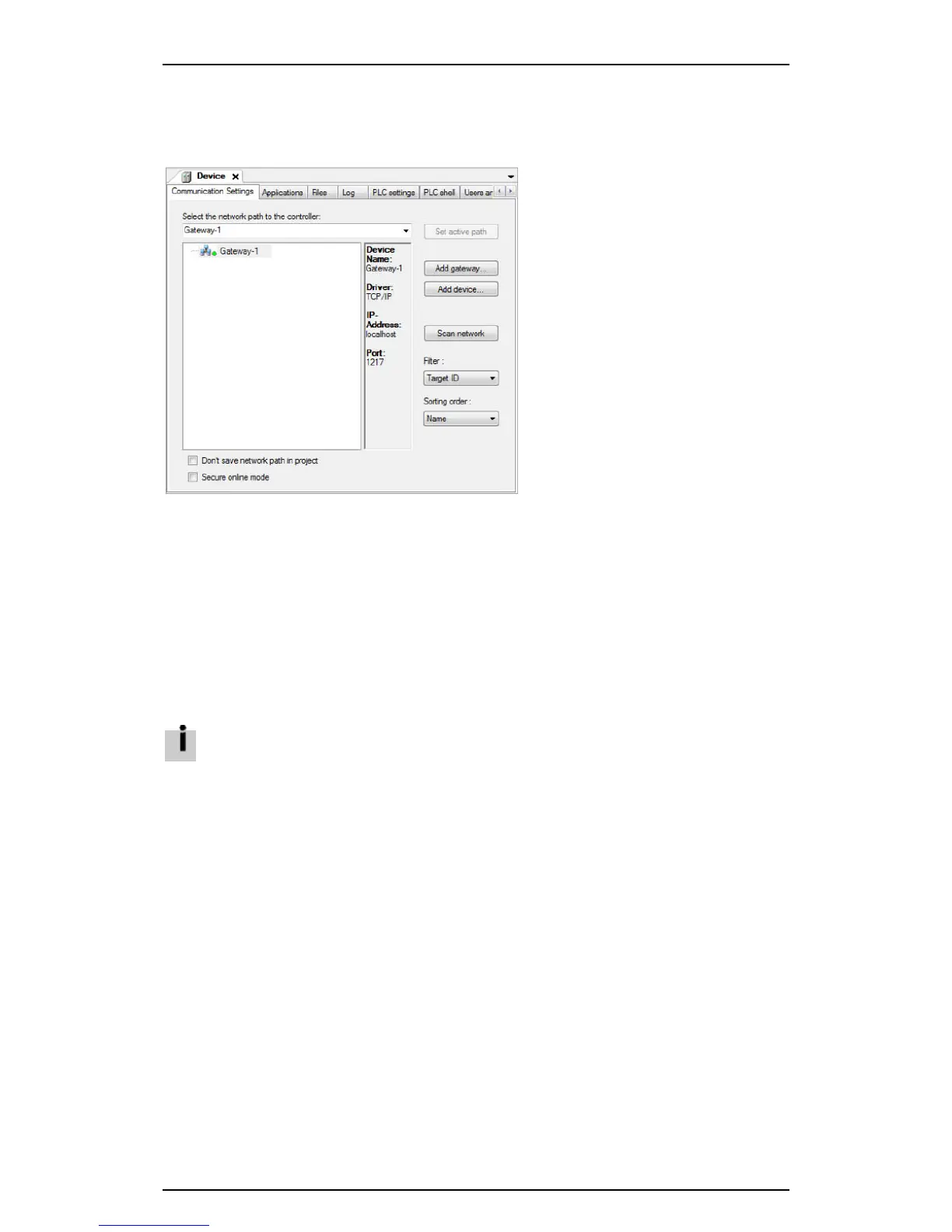

Figure: "Device" tab for CECC-...
2. Open the "Communication Settings" tab and highlight the local gateway (network path).
3. Click the "Scan network" button or double-click the highlighted gateway to add an updated list of
devices to the local gateway.
• If necessary, set the filter to "Target ID". Only devices that match the CECC currently used in the
project will then be displayed ( section "Selecting a device").
• If necessary, change the sorting sequence to alter how the devices are displayed in the updated
list.
• Manually select a device if you know the name, node address or IP address of the CECC
( section "Manually adding a device").
• If necessary, change the network settings for the device ( section "Scan Festo Devices") and
repeat step 3. Changing the settings adds the device to the local gateway.
The list only contains devices that match the following criteria:
– The subnet mask settings for the network connection and CECC are the same
– The IP address settings for the network connection and CECC match
If these criteria are not met, the device must be detected using the Festo scan program
( section "Scan Festo Devices"). The network settings for the device can be read out in the
scan program and changed to suit your company network.
