3.4 Power supply X1
The connection for the power supply to the CECC (24 V) is located on the left on the lower contact strip
(X1).

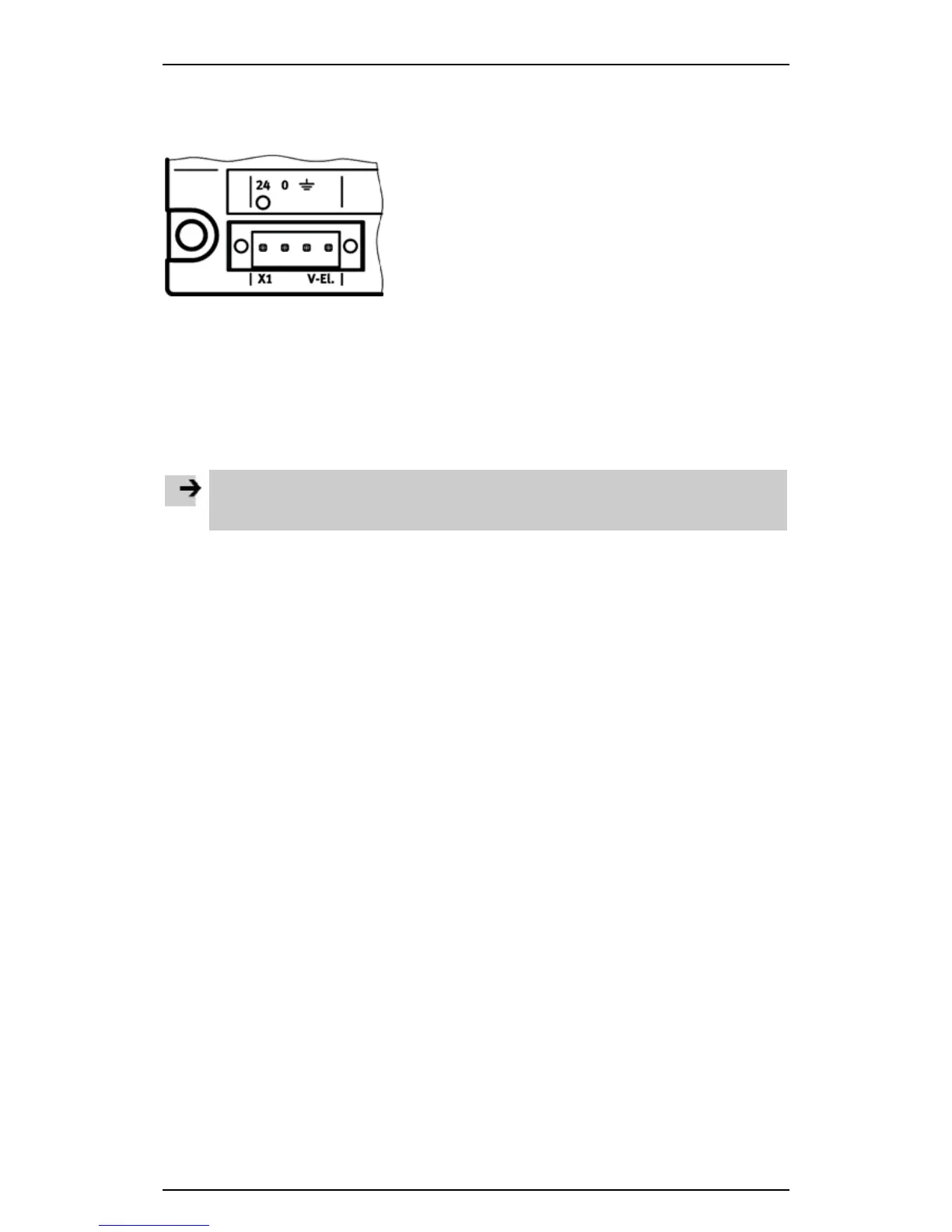

Figure: Power supply to the CECC
This connection also provides the power supply for the following interfaces:
– CANopen  section CANopen
– USB  section USB interface
– Ethernet  section Ethernet interface
– RS232  section RS232 interfaces
– Multiple interface  section Multiple interface
– IO-Link port class A (no internal fuse protection),  section IO-Link
Note
IO-Link consumers with a current requirement > 200 mA require an additional load voltage supply
via connection X11.
The following interface has a separate connection for the power supply:
– I/O interface: X5 ( section I/O interface)
