4.6 Configuring RS232 interfaces (CECC-S)
The CECC-S provides two serial interfaces:
– RS232-1
– RS232-2
• Use the appropriate libraries (e.g. "CAA SerialCom") together with the Festo SerialComEx_3 library to
parameterise the serial interfaces.
4.7 Configuring an encoder (CECC-S)
4.7.1 Integration
To use an encoder, the device must be integrated in the controller configuration.
1. Add the "General Purpose Serial" interface to the device tree.
2. Highlight the "General Purpose Serial" branch in the device tree.
3. Right-click a free placeholder.
4. Select the "Plug Device" command in the context menu.
5. Select the device from the table.

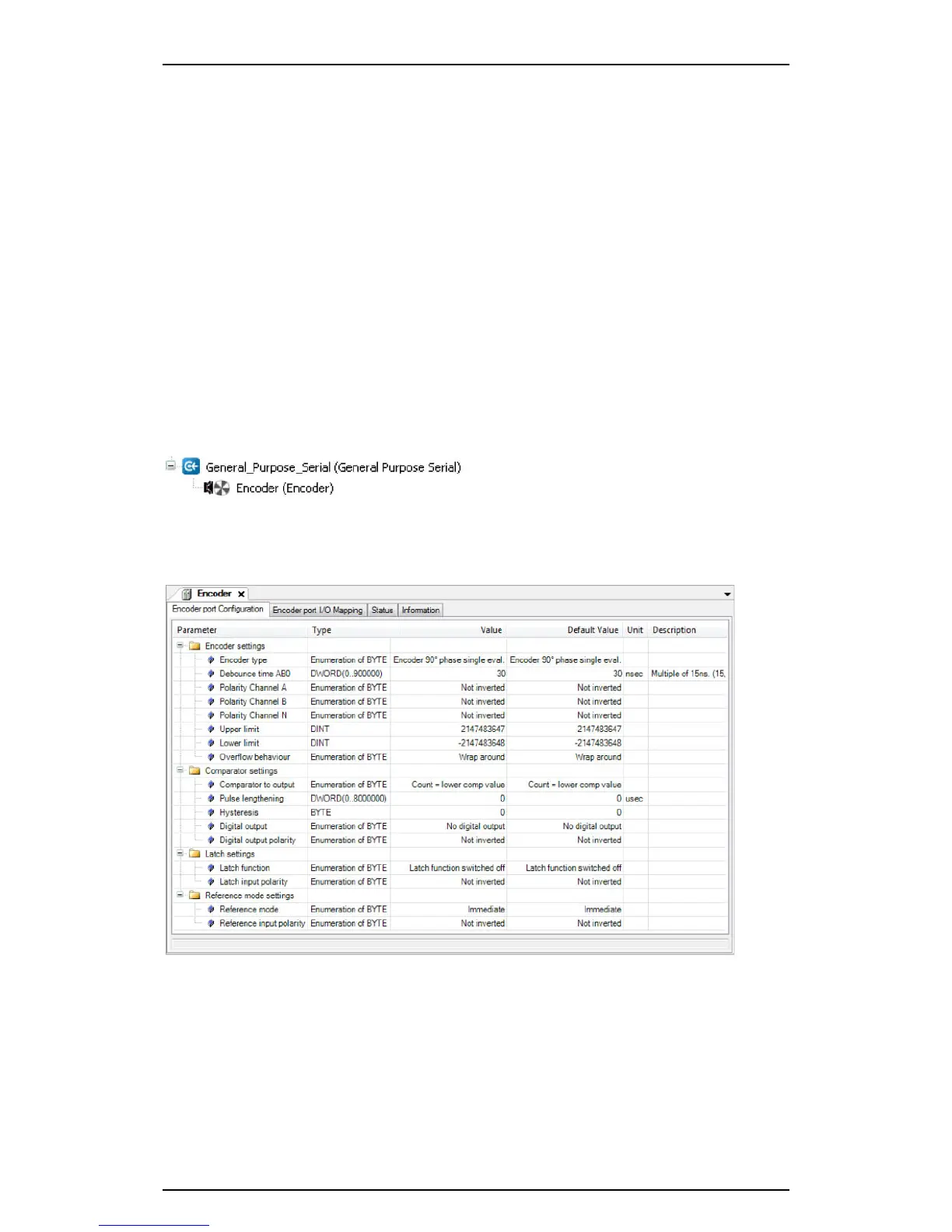

Figure: Integrating an encoder
4.7.2 Parameterisation
Figure: Parameterising an encoder
