4.10 Configuring an IO-Link master (CECC-LK and CECC-S)
4.10.1 Integration
Note
To use the IO-Link interface you need the IODD file for the relevant IO-Link device.
• Festo device: Download the IODD file from the Festo Support Portal (www.festo.com
 Support).
• Third-party device: Request the IODD file from the respective vendor.
1. Highlight the "IO-Link Master" branch in the CODESYS V3 pbF device window.

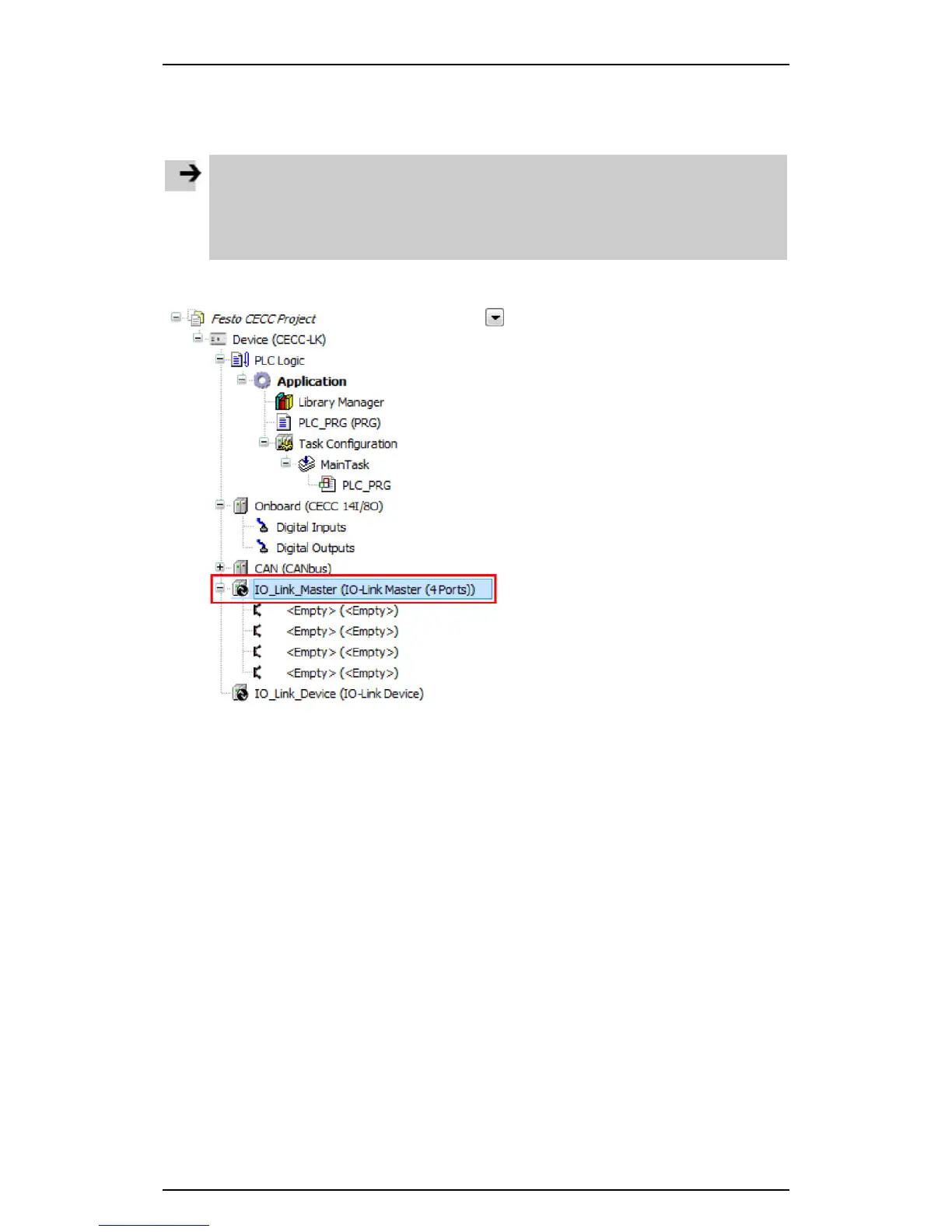

Figure: Device window - selecting "IO-Link Master"
2. Open the context menu (right mouse button) and open the "Edit Object" dialog
or alternatively double-click the highlighted object.
A new tab opens in the editing window for configuring:
– 4 IO-Link master ports (CECC-LK)
– 1 IO-Link master port (CECC-S)
