4. Commissioning
4-7
Festo P.BE-MPA-EN en 1108e
The detenting/non-detenting function of the manual override
can be modified to only non-detenting actuation if a cap is
fitted.
The assignment of the manual overrides to the solenoid coils
is as follows:
1
2
12 12 12 12
14 14 14 14 14 14 14 14
12 14 14
1
2
2
34
1
Manual override for solenoi d coils 12
2 Manual override for solenoi d coils 14
3 V alve size MPA2
4 V alve size MPA1

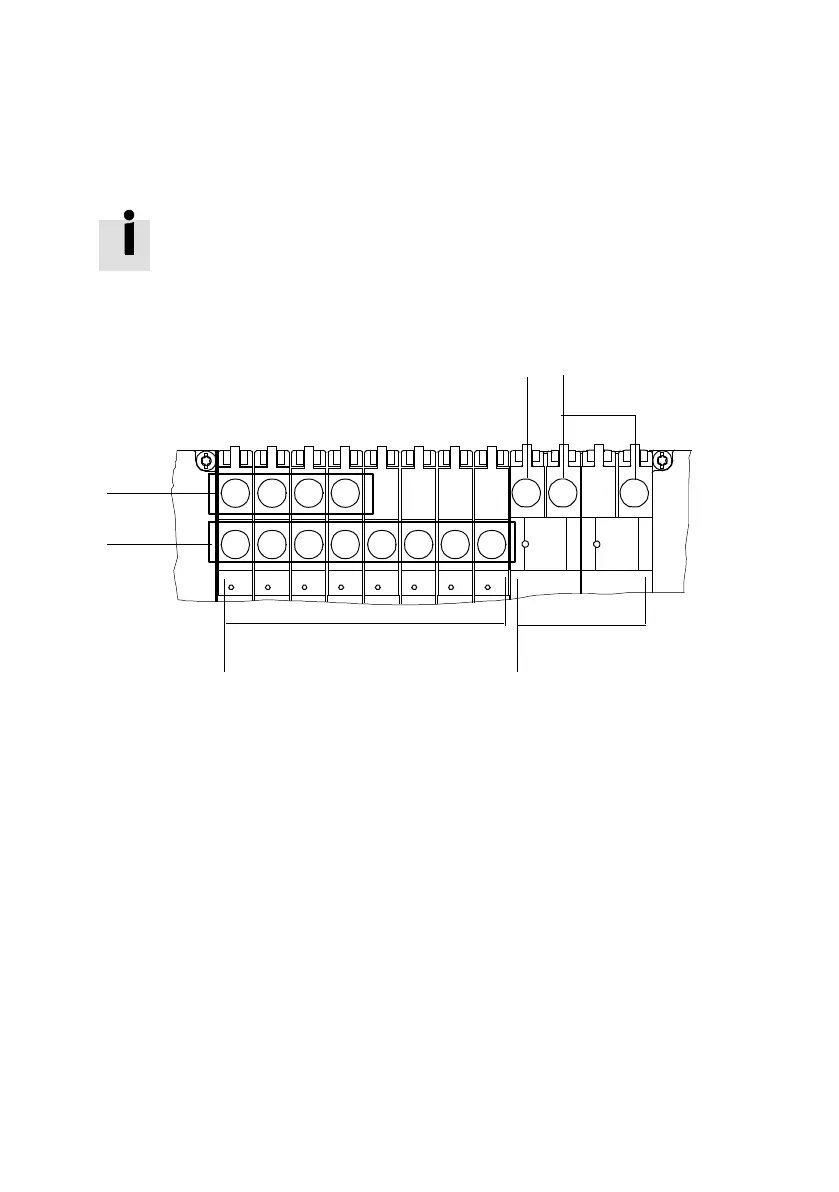

Fig. 4/2: Position of the manual overrides (top view)
