1. Summary of components
1-9
Festo P.BE-MPA-EN en 1108e
1.4 Description of components
The MPA-S valve terminal with CPX terminal or CPI module
consists of the foll owing pneumatic components:
1
2
5
6
7
3
8
4
1 Only with MPA-S valve terminal with
CPX terminal:
Pressure sensor plate
2 Only with MPA-S valve terminal with
CPX terminal:
LED-/LCD proportional-pressure
regulator or blanking plate
3 Right end plate
4 Pneumatic supply plate
5 Inscription label with support
6 Sub-base with work connections and
serial linking (bus)
7 Electrical supply plate
8 Seal (optional separating seal for
pressure zone separation)

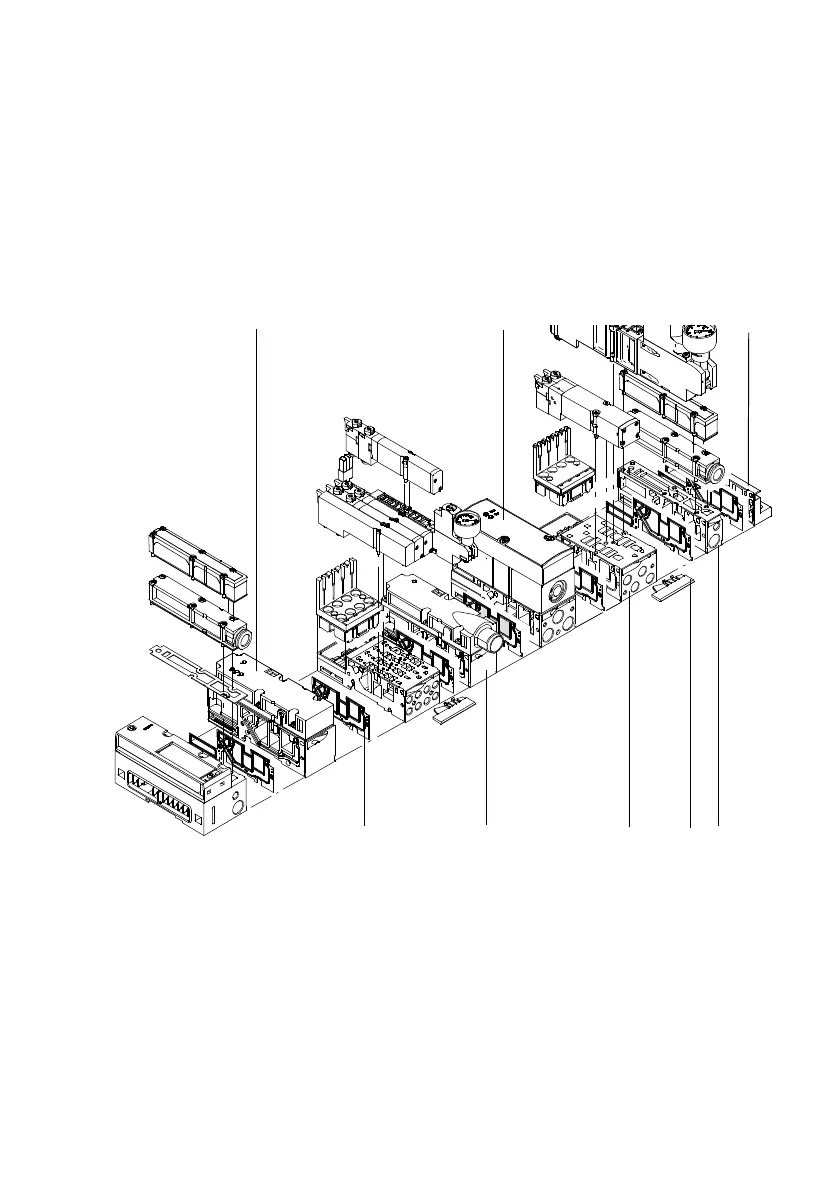

Fig. 1/6: Components of the MPA-S valve terminal with CPX terminal or CPI module,
1
st
level
