1. Summary of components
1-33
Festo P.BE-MPA-EN en 1108e
1.5 Operation and connection elements
Y ou will find the following pneumatic connecting, display and
operating elements on the MPA-S valve terminal:
7
2
3
5
6
1
4
1
8
9aJ
6
3
4
aA
1 Manual override (per pilot solenoid,
turning/locking or non-locking)
2 Manual override co ver cap
3 Common exhaust connection (3/5),
“valves”
4 working lines (2) and (4)
per valve
5 Connection (82/84) only with variant
for ducted exhaust, “Pilot exhaust”
6 Supply port (1),
“Operating pressure”
7 Pressure output (2) of the
proportional pressure regulator
8 Exhaust (3) of the proportional
pressure regulator
9 Pressure input (1) of the proportional
pressure regulator
aJ External pressure input of pressure
sensor type VMPA-FB-PS-P1
aA Pilot connection (12/14),
“External pilot air supply”

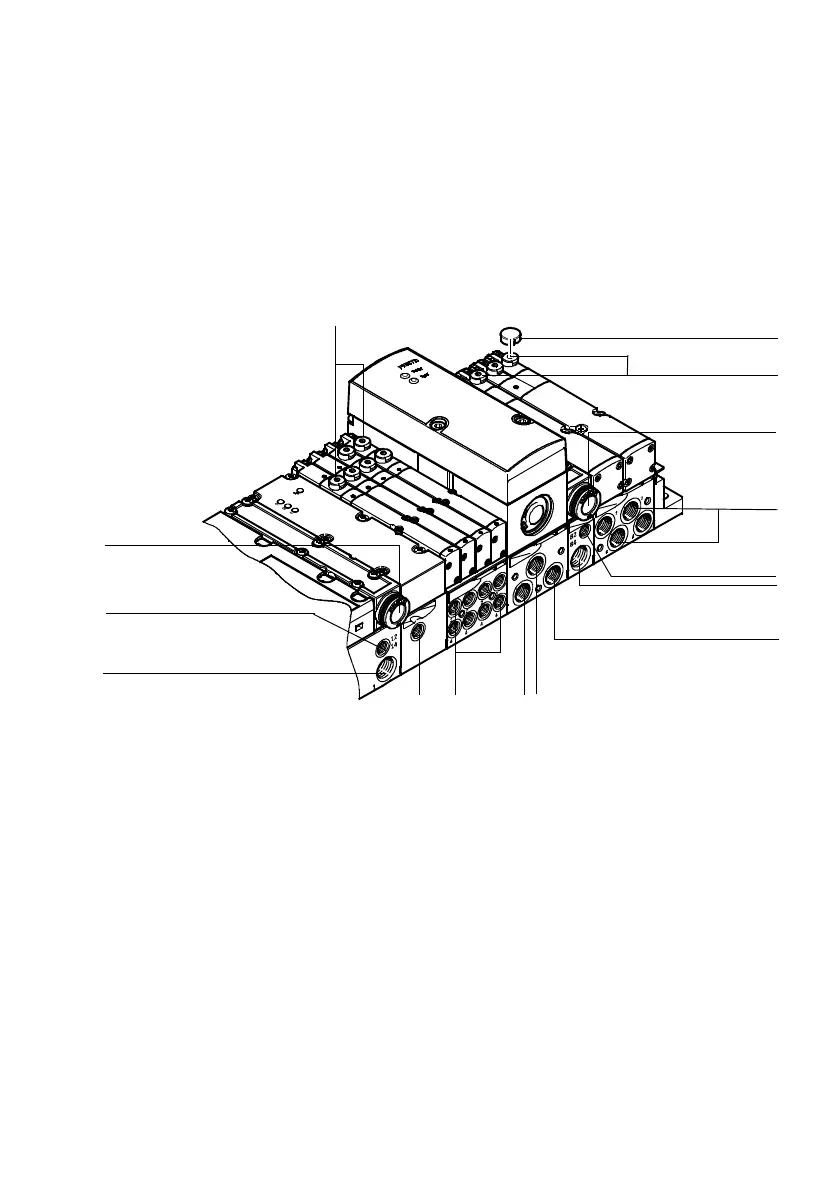

Fig. 1/14: Pneumatic connecting and operating elements of the MPA-S valve terminal
