5. Maintenance and conversion
5-18
Festo P .BE-MPA-EN en 1108e
5.3.6 Replacing the sub-base, supply plate or MPA-S end plate
Dismantling Proceed as follows:
1. Loosen the electric and pneumatic connections and
removetheMPA-Svalveterminalfromitsfastening
surface (see Chapter 5.2).
2. Place the MP A-S valve terminal on a flat working surface.
3. Loosen the screws of the component (sub-base, supply
plate or end plate) which you wish to remove in the
sequence 321(see diagram).
4. Then remove the screws. The sub-bases are now held
together only by the electrical linking or by the bus.
1
2
3

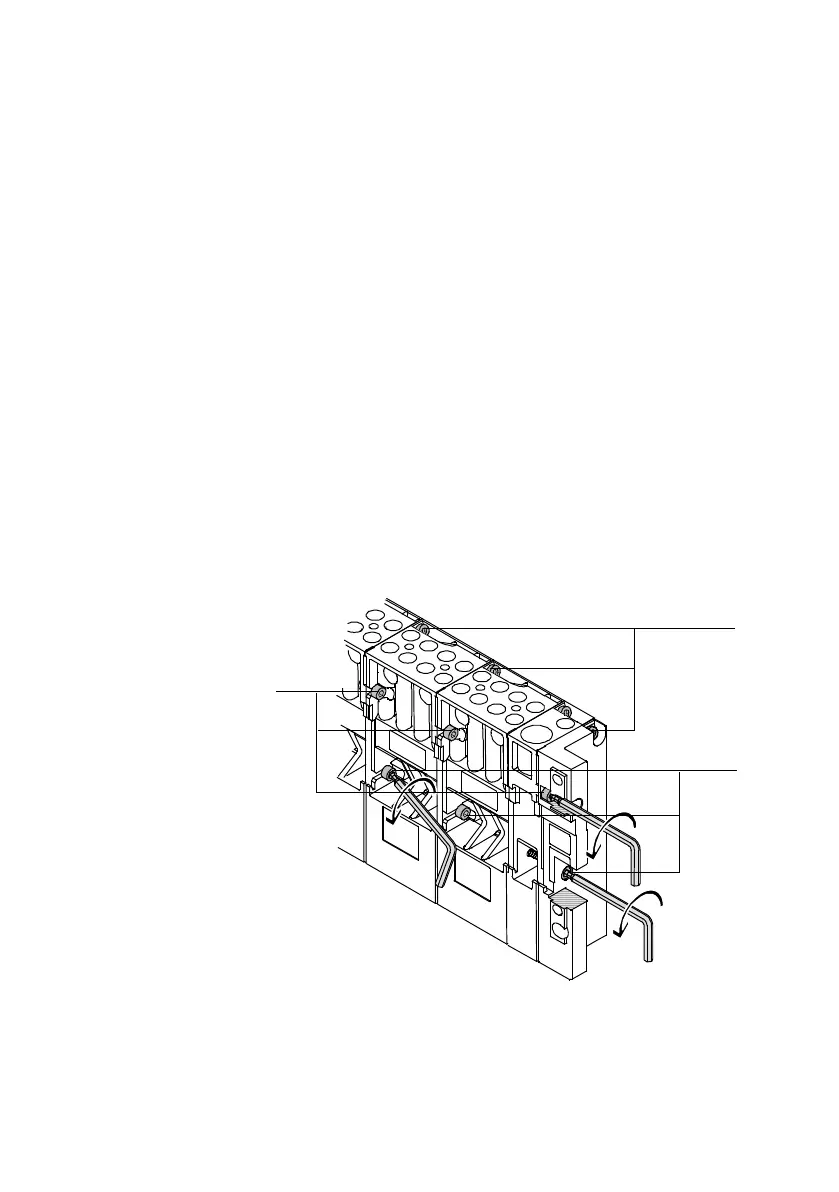

Fig. 5/6: Position of the fittings on sub-bases and the
right-hand end plate
5. Pull the relevant component away from the adjacent
component.
