4. Commissioning
4-13
Festo P.BE-MPA-EN en 1108e
4.4 Fitting/removing the manual override caps (optional)
The locking/non-locking function of the manual override can
be modified to only non-locking actuation if a cap is fitted in
the manual override.
Mounting Proceed as follows:
1. Make sure that the relevant manual overrides are in a
non-actuated state. If necessary, set locking manual
overrides to the basic position (see Chapter 4, Tab. 4/5).
2. Place the cap on the manual o verride so that the snap
hooks of the cover can grip into the recess on the manual
override.
3. Clip the manual override caps into the grooves in the
manual overrides (see diagram):
1 Manual override
cover caps
2 Manual override
(MO)
1
2

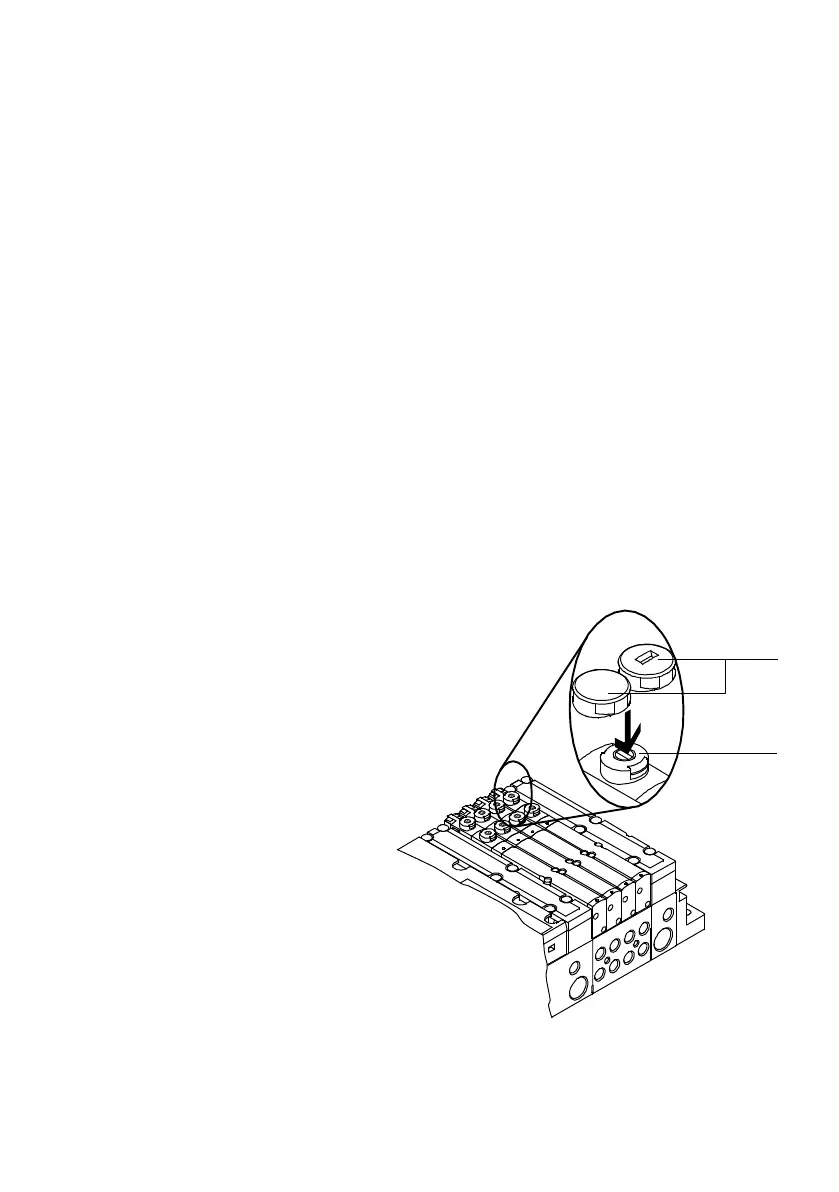

Fig. 4/3: Mounting the MO cover caps
