3. Installation
3-22
Festo P .BE-MPA-EN en 1108e
3.4 Installing the tubing
If elbow connectors or multiple distributors are used, the air
flow will be reduced slightly.
Connecting Proceed as foll o ws:
1. Push the tubing as far as possible into or over the tube
coupling of the threaded connector.
2. Tighten the clamping screw 1 or, if applicable, pull the
locking ring 2 over the tube coupling.
3. Seal connections that are not required with blanking
plugs 3.
4. For better system clarity, group the tubing together with:
– tubing straps or
– multiple hose holders
1
2
3

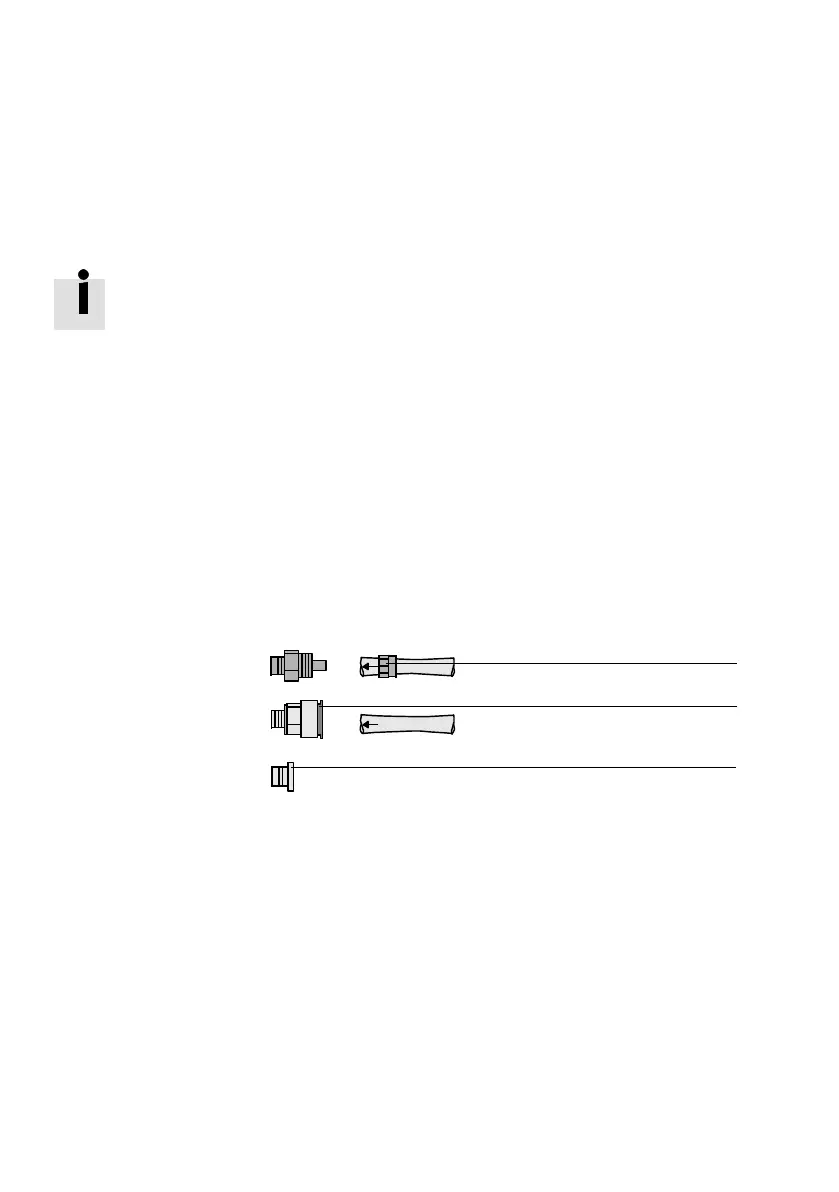

Fig. 3/1: Mounting the tubing connections
