2.2.3 Standard fastening points of the valve terminal
The MPA-S valve terminal has standard fastening points for
mounting on walls. The holes of these fastening points are
located in the end plates, the multi-pin plug connection plate
orthepneumaticinterface(seeTab.2/3).
Variant
Fastening points
1
1
1
1
2
2
2
2

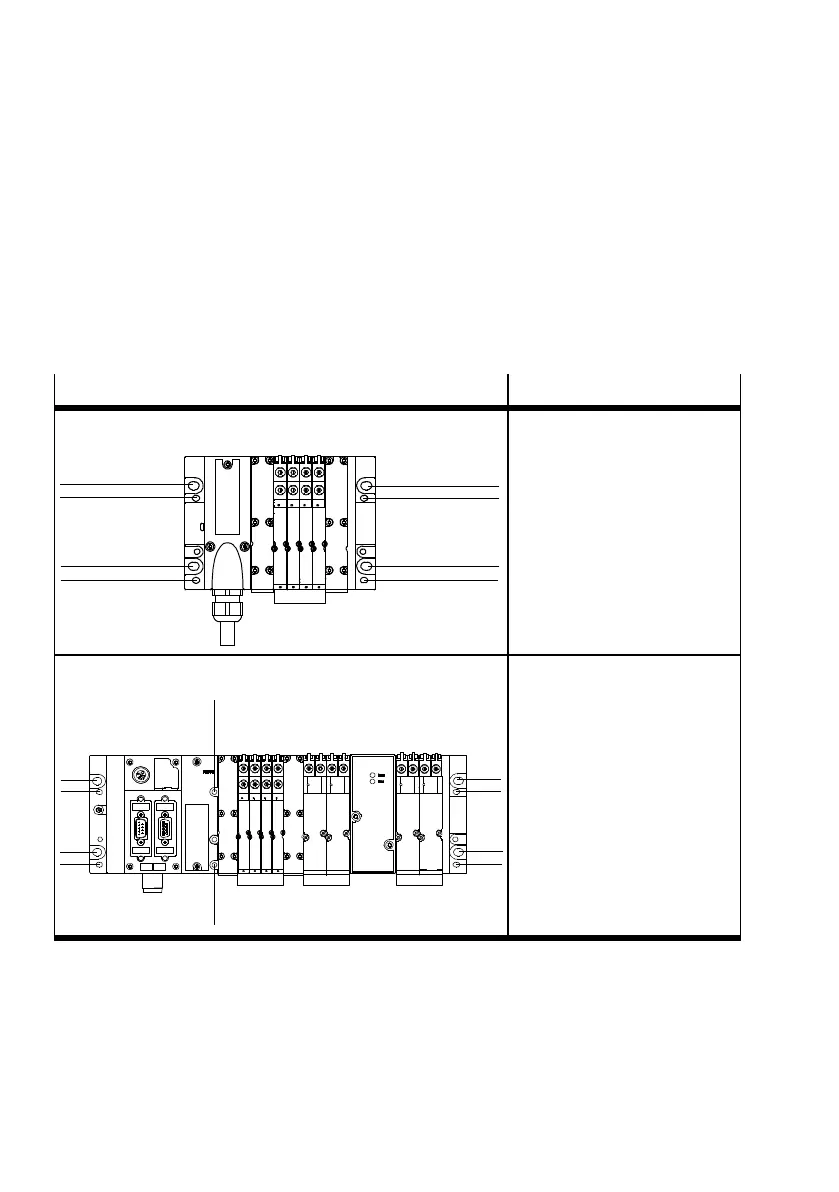

MPA-S valve terminal with multi-pin plug connection
Required mounting:
– Multiple connector plate:
two M4 1 or M6 screws 2
each
– Right end plate:
two M4 1 or M6 screws 2
each
11
2
2
1
1
2
1
MPA-S
v
alve terminal with CP
X
terminal
1
2
Required mounting:
–Endplates:
two M4 1 or M6 screws 2
each
– Pneumatic interface:
two M4 screws 1
Tab. 2/3: Metho ds of fastening the MPA-S valve terminal
