4. Commissioning
4-15
Festo P.BE-MPA-EN en 1108e

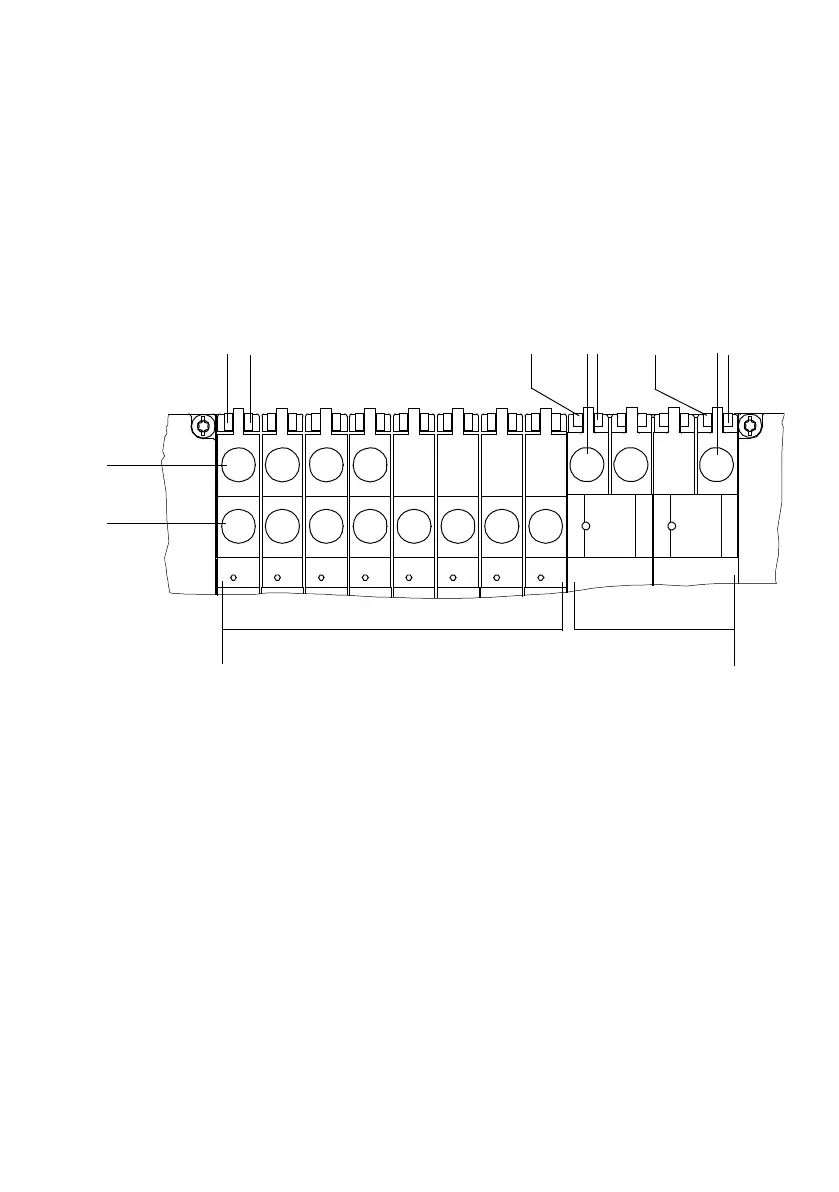

4.5 LED display of the valves
There is an LED and a manual override (MO) for each solenoi d
coil. The position of the LED and MO for the corresponding
solenoid coil is as follows:
12 12 12 12
14 14 14 14 14 14 14 14
12 14 14
1
2
1
2
34
5
67 8
aJ
9
1 MPA1:
MO and red/yello w LED for solenoid
coil 12
2 MPA1:
MO and red/yello w LED for solenoid
coil 14
3 MP A2: Y ellow LED for solenoid coil 12
4 MP A2: MO for solenoid coil 12
5 MP A2: Red LED for solenoid coil 12
6 MP A2: Y ellow LED for solenoid coil 14
7 MP A2: MO for solenoid coil 14
8 MP A2: Red LED for solenoid coil 14
9 V alve size MPA2
aJ V alve size MP A1
Fig. 4/5: The assignment of LEDs and manual overrides to the solenoid coils
