1. Summary of components
1-4
Festo P .BE-MPA-EN en 1108e
1.2 Overviewofvariants
1.2.1 Electrical variants
MPA-S valve terminal
with CPX terminal
This variant of the MPA-S valve terminal is available in the
following grades:
MPA-S valve terminal with CPX terminal
Number of valve positions
1)
Load voltage supply for the valves via ...
–CPXterminal
2)
– CPX terminal and electric supply plate (MPA)
3)
MPA1
4, 8, 12 ... 32
4, 8, 12 ... 64
MPA2
2, 4, 6 ... 16
2, 4, 6 ... 32
1)
Two solenoid coils can be controlled per v alve position.
2)
A max. of 64 solenoid coils can be supplied.
3)
A max. of 128 solenoid coils can be supplied.
Tab. 1/1: Number of valve locations of the MPA-S valve terminal with CPX terminal

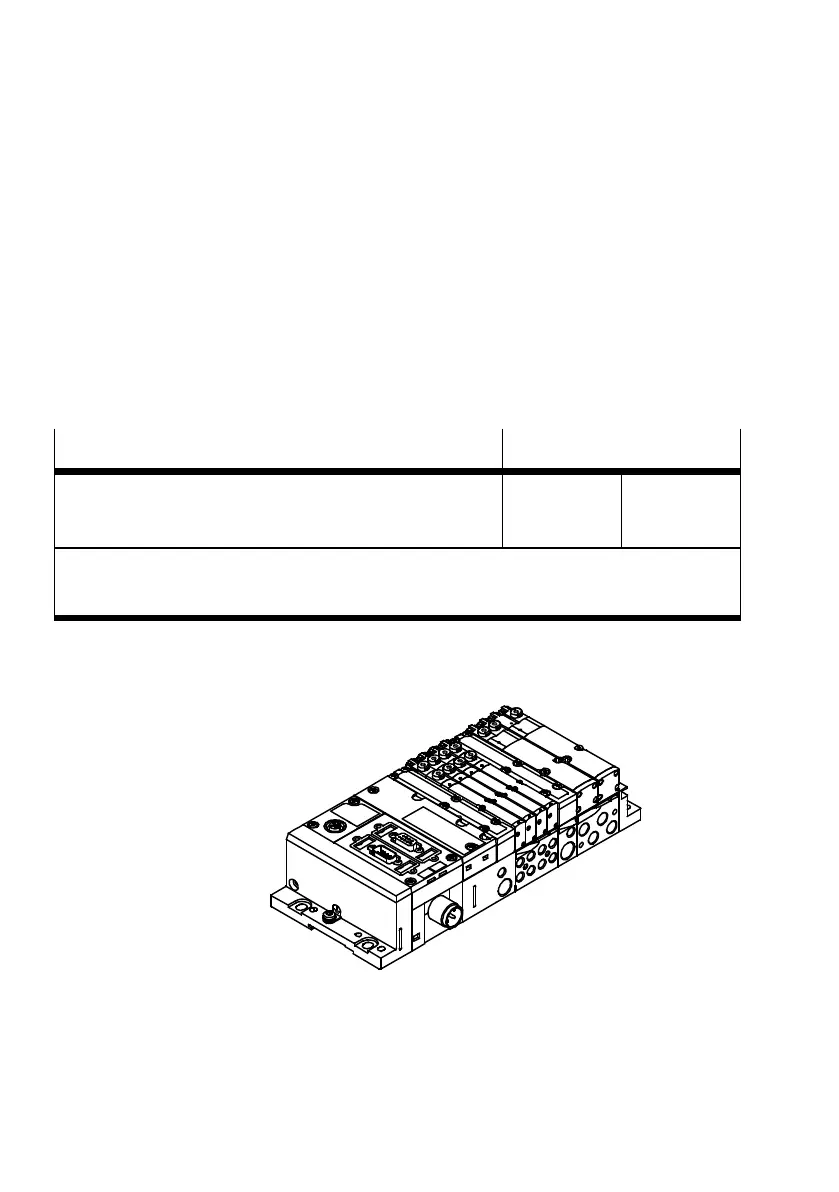

Fig. 1/1: MPA-S valve terminal with CPX terminal
