1. Summary of components
1-5
Festo P.BE-MPA-EN en 1108e
MPA-S valve terminal with
CPI interface
This variant of the MPA-S valve terminal is available in the
following grades:
MPA-S valve terminal with CPI interface
Number of valve positions
1)
Load voltage supply for the valves via ...
–CPIinterface
2)
– CPI interface and electric supply plate (MPA)
3)
MPA1
4, 8 ... 12
4, 8, 12 ... 16
MPA2
2, 4, 6 ... 12
2, 4, 6 ... 16
1)
Two solenoid coils can be controlled per v alve position.
2)
A max. of 24 solenoid coils can be supplied.
3)
A max. of 32 solenoid coils can be supplied.
Tab. 1/2: Number of valve locations of the MPA-S valve terminal with CPI module

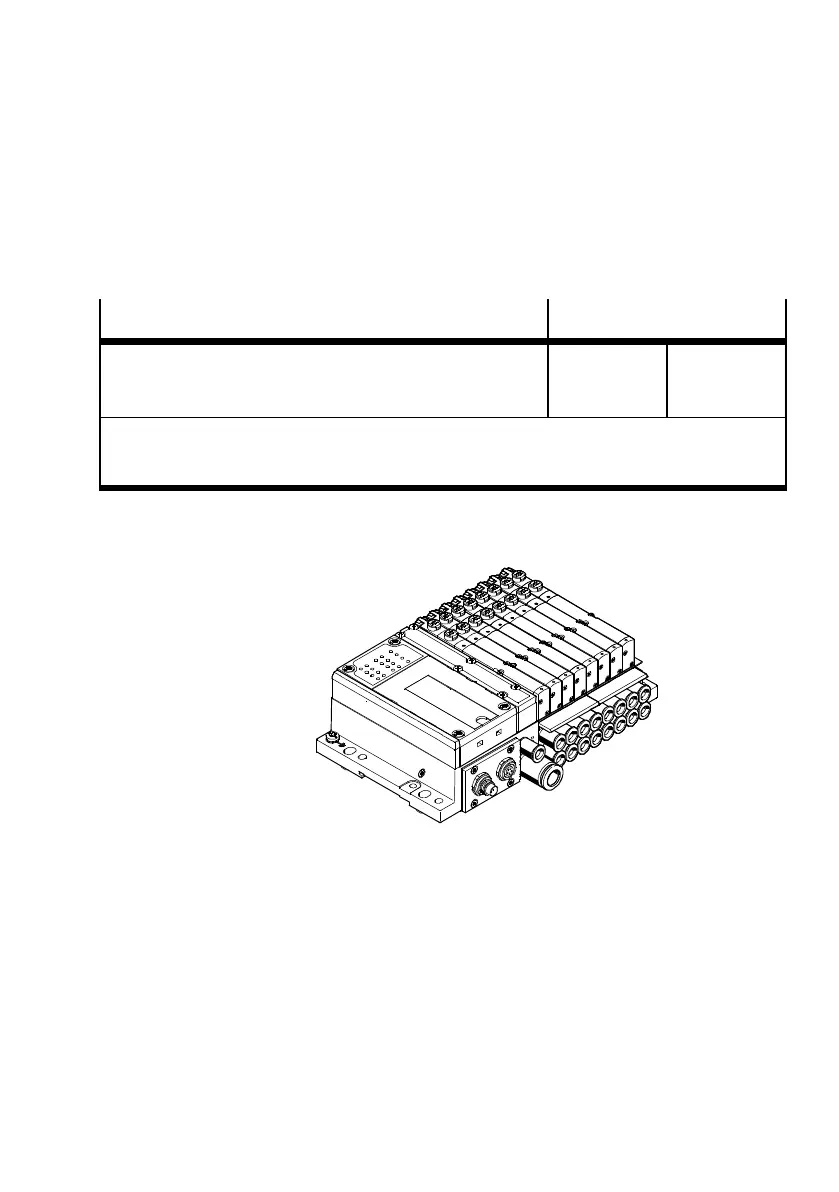

Fig. 1/2: MPA-S valve terminal with CPI interface
