Festo MPA-FB-VI - Mounting;Dismounting on Walls

2. Fitting
2-9
Festo P.BE-MPA-EN en 1108e
1 H-rail
2 Retaining screw
of the H-rail
clamping unit
3 Clamping
component of the
H-rail clamping
unit
4 Mounting surface
1
A
B
2
3
4

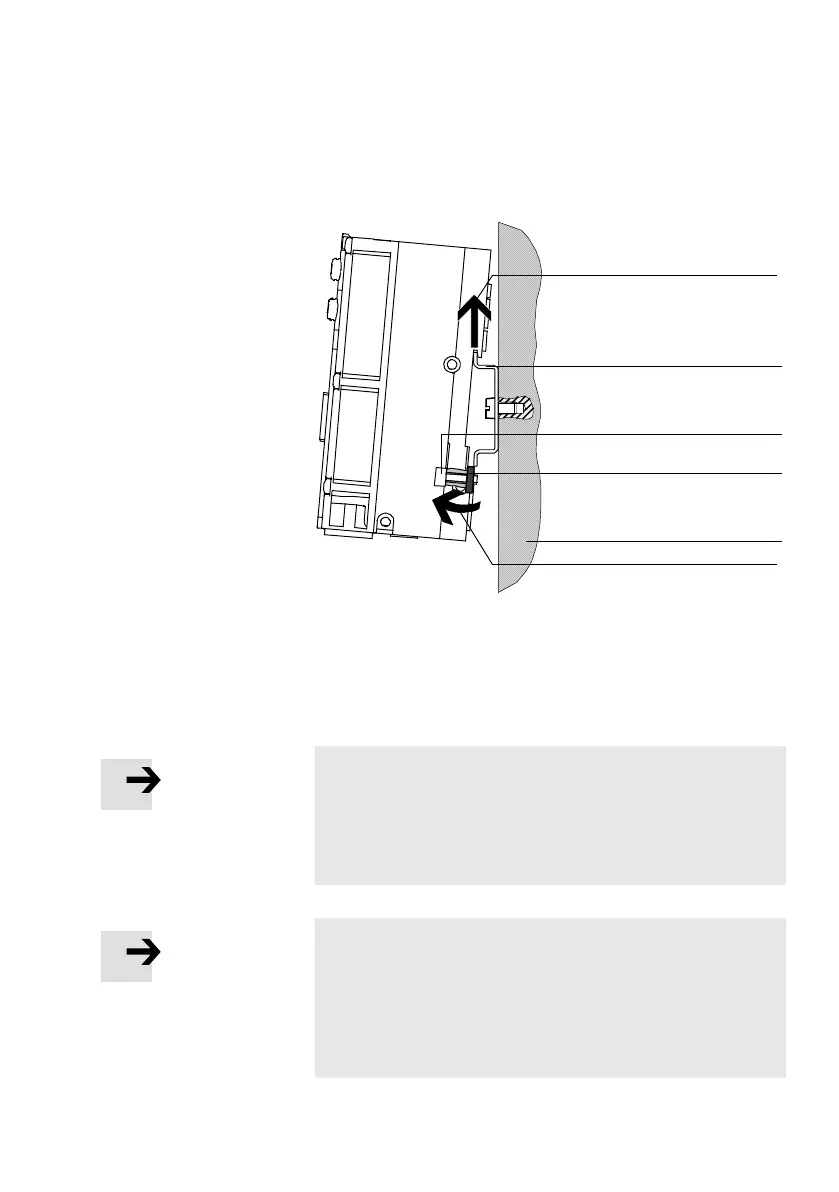

Fig. 2/3: Dismounting the MP A-S valve terminal
2.2.2 Mounting/dismounting on walls
Note
Mounting on uneven, flexible surfaces can result in
damage to the MPA-S valve terminal.
• Mount the MP A-S valve terminal only on a flat,
torsionally rigid surface.
Note
Overloading of mounting holes or natural resonance with
oscillations can cause damage.
• Besides the instructions on standard fastening points in
Chapter 2.2.3, also observe the instructions on
additional fastening in Chapter 2.2.4.
