2. Fitting
2-8
Festo P .BE-MPA-EN en 1108e
1 H-rail
2 Clamping
component of the
H-rail clamping
unit
1
2
(A)

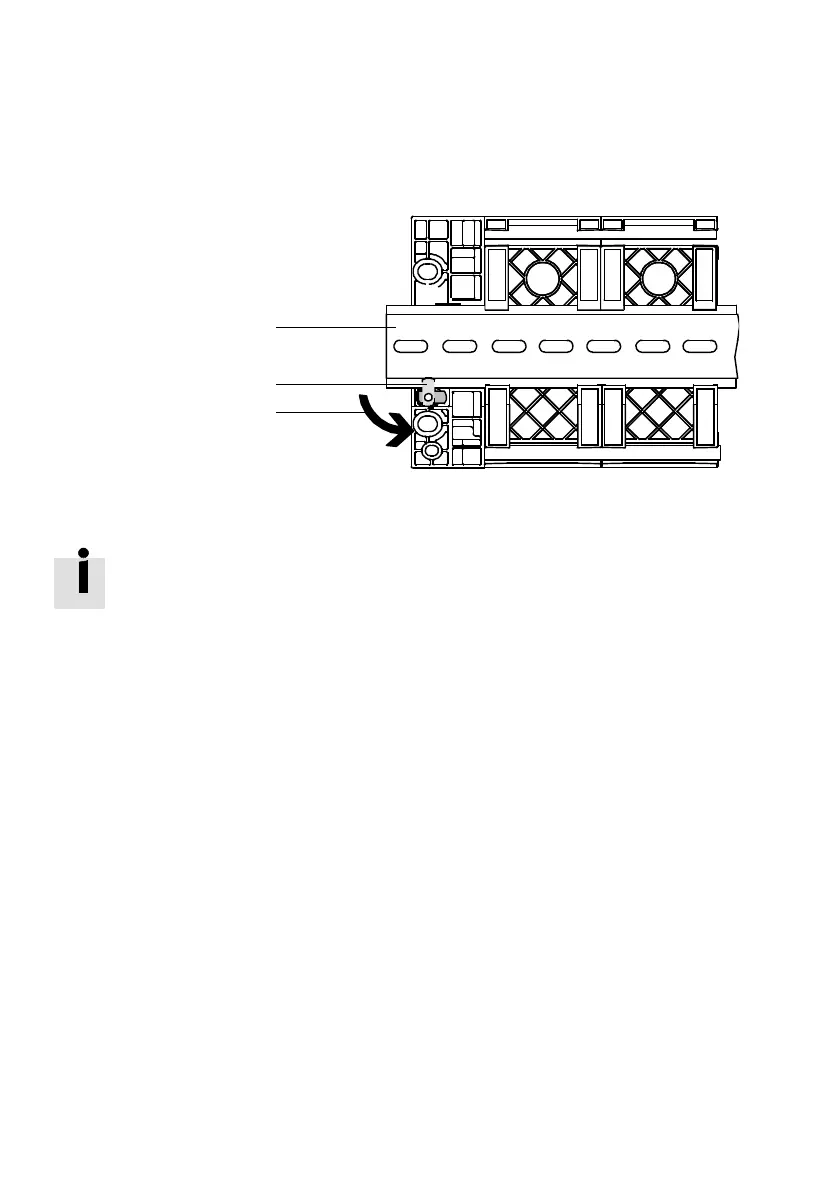

Fig. 2/2: Rear view: Mounting on an H-rail using the CPX terminal as an example
Further instructions on mounting the MP A-S valve terminal
with CPX terminal on an H-rail can be found in the system
description for your CPX terminal.
Dismounting Proceed as follows:
1. L oosen the retaining screw of the H-rail clamping unit
(for position of the screws, see Tab. 2/2). Make sure that
the clamping component lies horizontally with respect to
the H-rail.
2. Swing the MPA-S valve terminal forwards away from the
H-rail (see Fig. 2/3).
3. LifttheMPA-SvalveterminalawayfromtheH-rail
(see Fig. 2/3).
