1. Summary of components
1-7
Festo P.BE-MPA-EN en 1108e
MPA-S valve terminal with
AS interface
This variant of the MPA-S valve terminal is available in the
following grades:
MPA-S valve terminal with A S interface ...
Number of valve positions
1)
... with 4 inputs and 4 outputs of type VPMA-AS I-...-4E4A-Z
2)
... with 8 inputs and 8 outputs of type VPMA-ASI-...-8E8A-Z
3)
MPA1
4
4, 8
MPA2
2, 4
2, 4, 6 ... 8
1)
The maximum number of valve positions which can be controlled depends on the electronic module:
– VMPA1-MPM-EMM-8 and VMP A2-MPM-EMM-4 occupy 2 addresses per valve position
– VMPA1-MPM-EMM-4 and VMP A2-MPM-EMM-2 occupy 1 address per v alve position
2)
A max. of 4 solenoid coils can be supplied.
3)
A max. of 8 solenoid coils can be supplied.
Tab. 1/4: Number of valve locations on the MPA-S valve terminal with AS interface

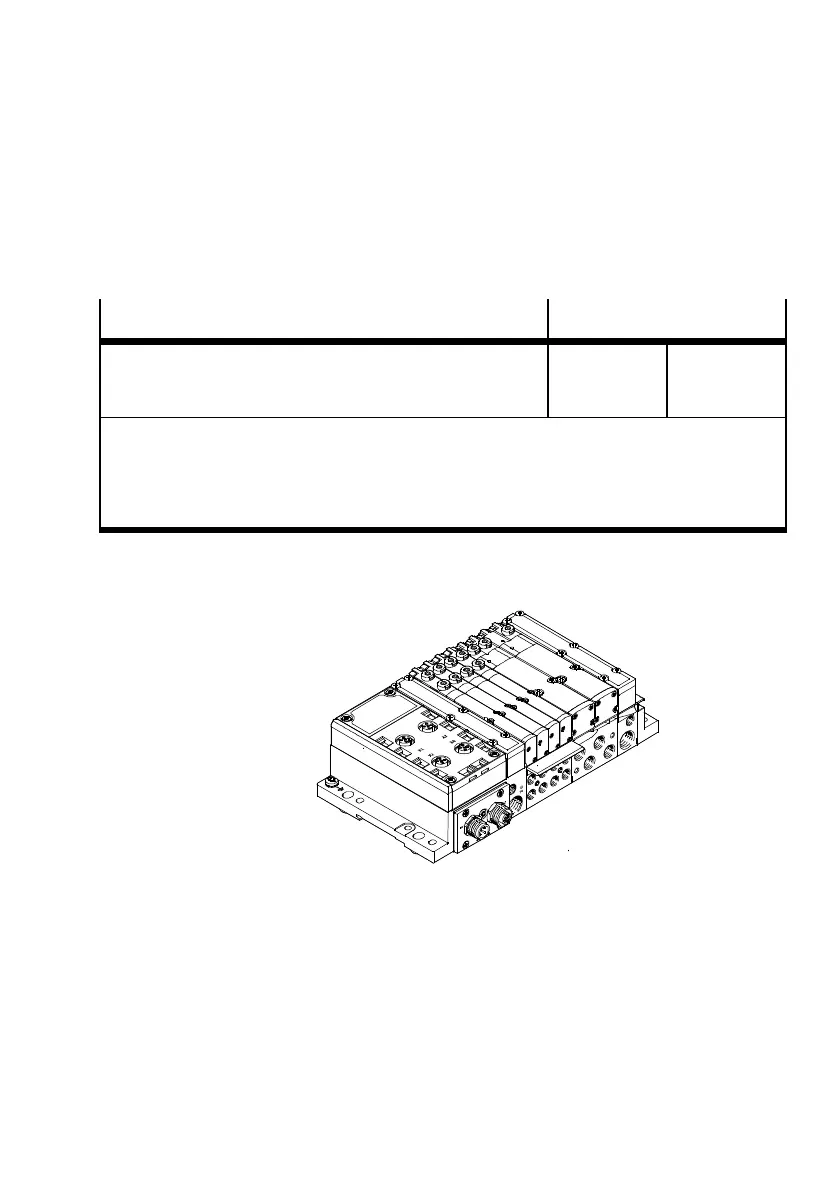

Fig. 1/4: MPA-S valve terminal with AS interface
